Module 433Mhz RF Wireless Transmitter and Receiver kit 5V DC

Detail Module 433Mhz RF Wireless Transmitter and Receiver kit 5V DC

Hi #RekanEasyWare ...
EasyWare Part#: EP000440

CATATAN :
VCC voltage must be consistent with the module's operating voltage, and must do a good job of power supply filtering
Effect of antenna reception module drastically, then 1/4 wavelength antenna, generally use single core wire 50 ohms, an antenna length of about 17cm 433M
The position of the antenna also influences the receiving effect of the module. During installation, the antenna is as straight as possible, away from the shield, high voltage, and the source of the interference.
When used, the receiving frequency, decoding method, and oscillation resistance should be matched with the emission

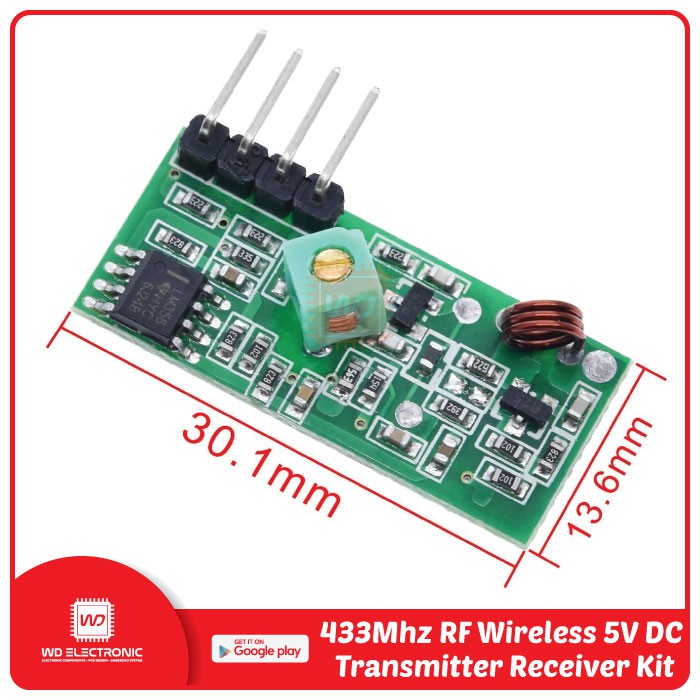

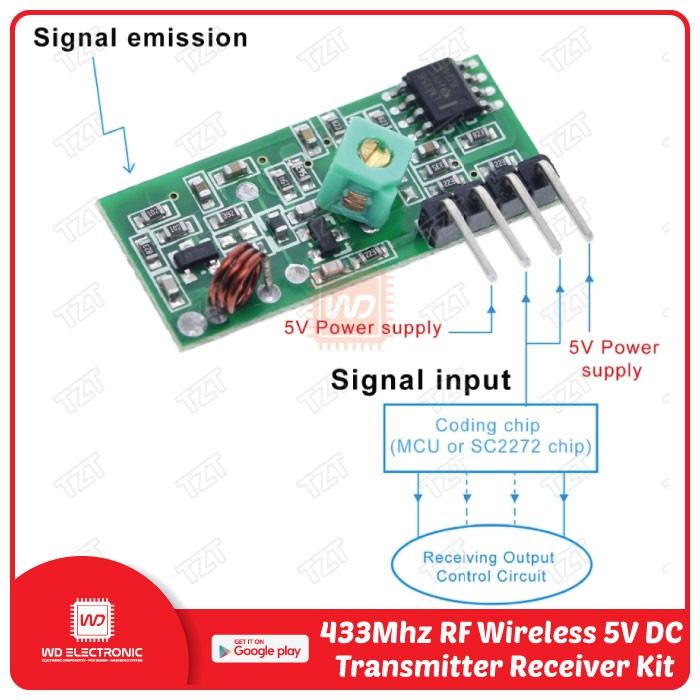

SPESIFIKASI RECEIVER MODULE:
- Operating voltage: DC5V
- Quiescent Current: 4MA
- Receiving frequency: 433.92MHZ
- Receiver sensitivity: -105DB
- External antenna: 32CM single core wire wound into a spiral

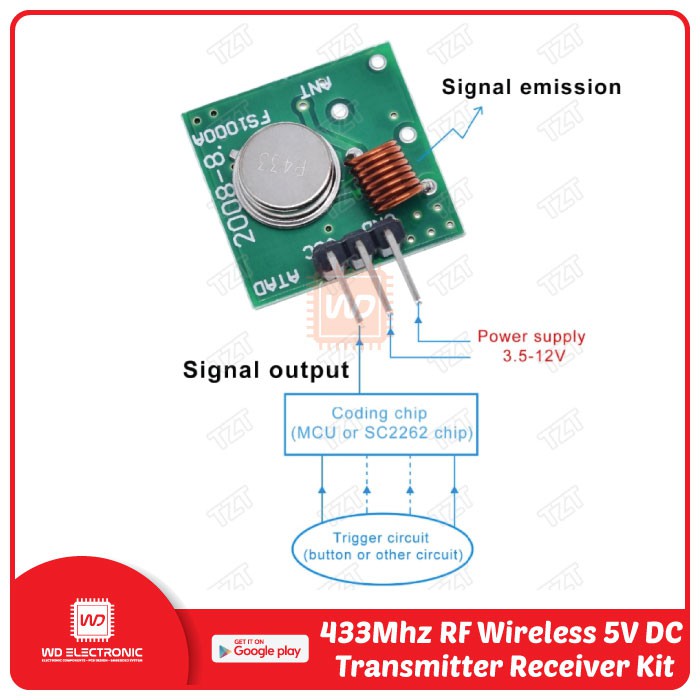

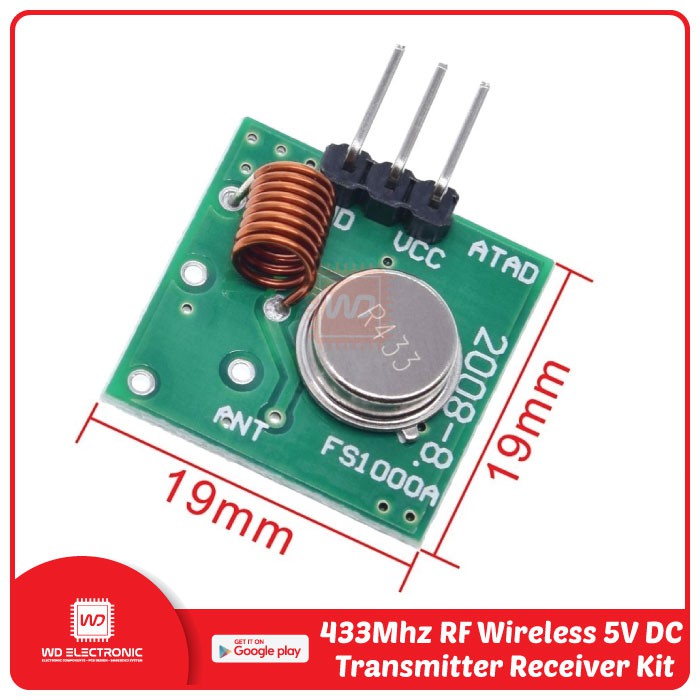

SPESIFIKASI TRANSCEIVER MODULE:
- Launch distance: 20-200 meters (different voltages, different effects)
- Operating voltage: 3.5-12V
- Working method: AM
- Transmission rate: 4KB/S
- Transmission power: 10mW
- Transmission frequency: 433M
- External antenna: 25cm ordinary multi-core or single core wire
- Pin arrangement from left to right: (DATA;VCC;GND)

APLIKASI :
Remote control switch, receiving module, motorcycle, car anti-theft products, home security products, electric door, shutter doors, windows, remote control socket, remote control LED, remote control audio, remote control electric door, remote control garage door, remote control retractable door, remote control roller shutter, translation doors, door opener remote control, etc. closing door control system, remote control curtains, alarm host, alarm, remote controlled motorcycles, electric cars remote control, remote control MP3.

KELENGKAPAN :

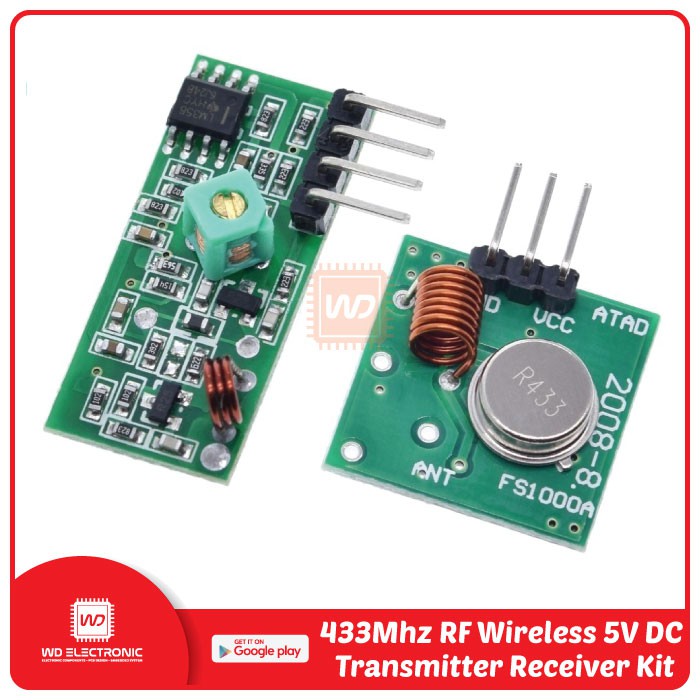

- 1set 433Mhz RF Wireless Transmitter and Receiver kit 5V DC

Gambar produk
