Modul ZK-MT21 2x50W + 100W Bluetooth 5.0 2.1 Power Amplifier

Detail Modul ZK-MT21 2x50W + 100W Bluetooth 5.0 2.1 Power Amplifier

Modul power amplifier mini ZK-MT21 memiliki ukuran relatif kecil namun dapat mengeluarkan suara yang begitu baik. Dengan konfigurasi 2.1 anda bisa merasakan suara yang lebih penuh. Memiliki kemampuan 2x50w untuk speaker kiri dan kanan ditambah dengan 100w yang anda jadikan power subwoofer, ampli ini sudah sangat mumpuni untuk menjalankan speaker 4 sampai 8ohm dengan ukurang sekitar 4 sampai 10 inch.

Specification:
Tipe: ZK-MT21
Material: Printed Circuit Board
Purpose: Digital Power Board
Model: ZK-MT21
BT Version: 5.0
Input Method: AUX and BT
Number of Channels: Left and Right Dual Channels (stereo) and Subwoofer
Signal to Noise Ratio: 90 dB
Adapter Power Supply: DC 12-24 V/9A or Above
Adapted Speakers: 15W-100 W, 4 Ohm -8 Ohm
Protection Mechanism: Overheating, Overcurrent, Short Circuit Protection

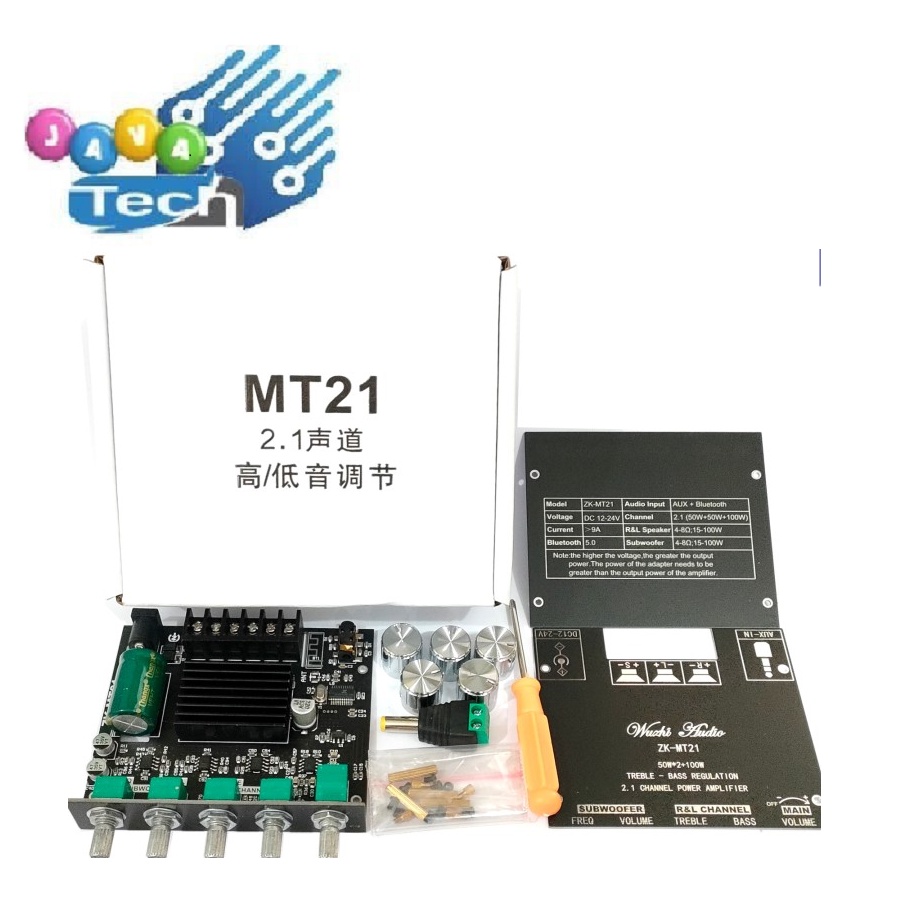

Package List:
1 x ZK-MT21 modul
1 x Screwdriver
9 x Screws
1 x Round Connector
4 x Brass Terminal
4 x Brass Connecting Rod
2 x Acrylic Board
5 x Knob
1 x Box

Note:
Input voltage must no more than 24V, otherwise the audio module will be damaged.
The digital module is equipped with wiring blocks and DC 2.1mm socket which is compatible with most laptop's power port.
Inbuilt filter capacitor makes it available to process the sound signal. Knob potentiometer design makes it convenient to adjust the power ON/OFF, V+/V-.
You can directly connect this BT speaker board with wireless BT 5.0. And it's compatible with multiple kinds of speakers.
Two channels 20W/30W/50W board work with various speakers (4 to 8 ohm), supporting BT stereo audio input AUX audio input.
The BT Amp is designed with acrylic protective shell, reverse connection protection, over voltage protection, under voltage protection, over temperature protection, short circuit protection. Self recovery overheat protection

Gambar produk
