Modul ZK-502C Mini Bluetooth 5.0 Stereo Power Amplifier 2x50W

Detail Modul ZK-502C Mini Bluetooth 5.0 Stereo Power Amplifier 2x50W

Tidak ada human voice saat tersambung ke koneksi bluetooth hanya bunyi tone

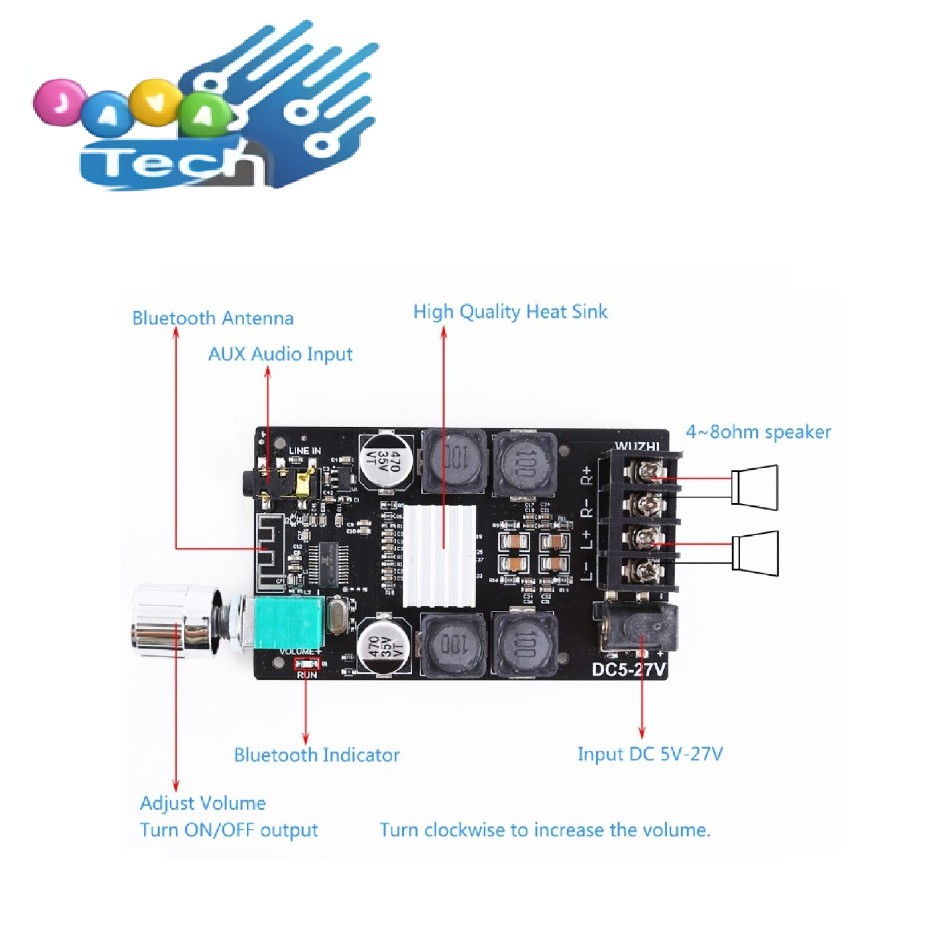

MODEL : ZK-502C dengan aux input 3.5mm dan heatsink
Features:
1 Width work voltage range
2 Applicable multiple type speakers
3 Knob adjustment
4 Potentiometer support switch function
5 Support short circuit protection
6 Support over voltage protection
7 Support under-voltage protection
8 Support over temperature protection
9 Dual stereo output
10 Support AUX audio input
11 Built-in filter capacitor

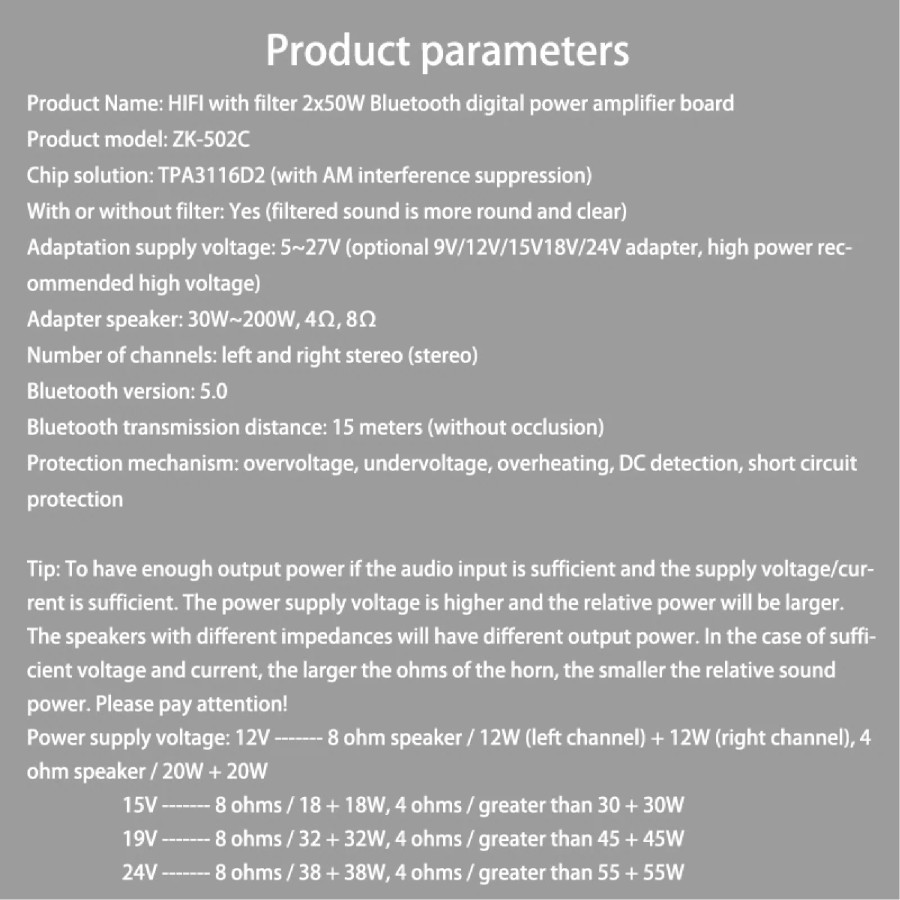

Parameters:
1 Product name:ZK-502C
2 Model:ZK-502C
3 Work Voltage:DC 12V-24V
4 Communication distance:15meter(Max)
5 Channel:Dual channel stereo output
6 Output impedance:4ohm~8ohm
7 Match speaker:30W~200W
8 Bluetooth:BLE 5.0
9 Output Power:
Output power 12W*2 at 12V 8ohm
Output power 20W*2 at 12V 4ohm
Output power 18W*2 at 15V 8ohm
Output power 30W*2 at 15V 4ohm
Output power 32W*2 at 19V 8ohm
Output power 45W*2 at 19V 4ohm
Output power 38W*2 at 24V 8ohm
Output power 55W*2 at 24V 4ohm
Module Size:104*50*17mm

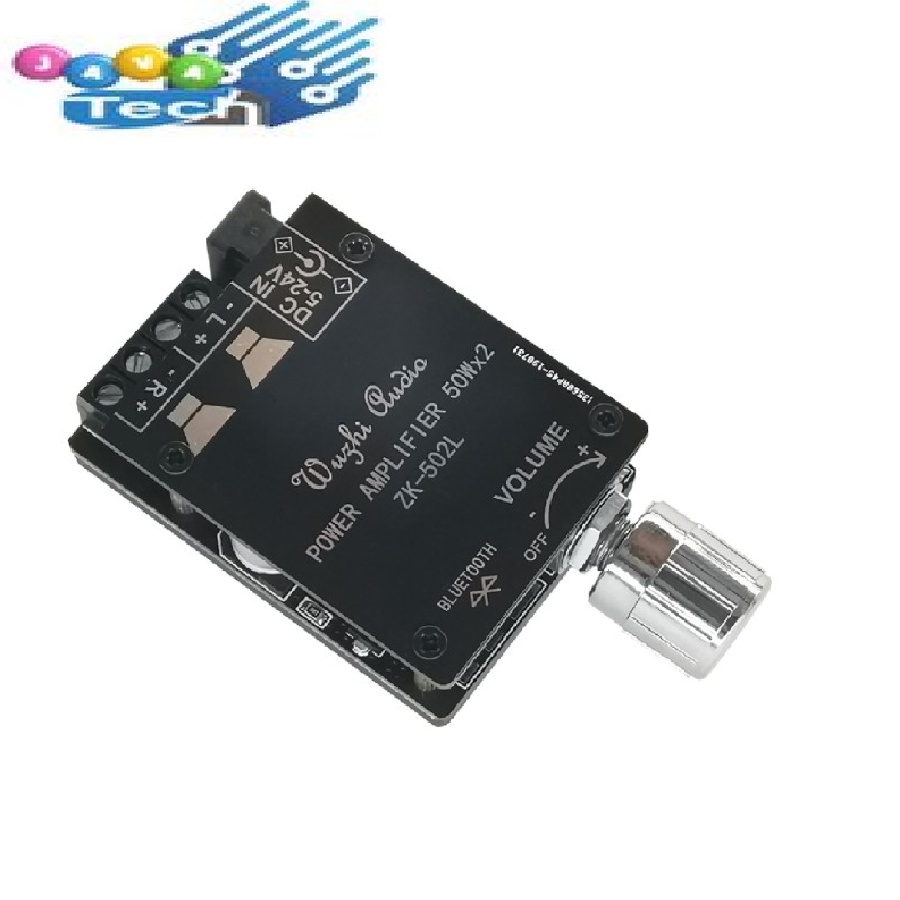

MODEL : ZZ-502L tanpa aux input 3.5mm dan tanpa heatsink
Features:
1 Width work voltage range
2 Applicable multiple type speakers
3 Knob adjustment
4 Potentiometer support switch function
5 Support short circuit protection
6 Support over voltage protection
7 Support under-voltage protection
8 Support over temperature protection
9 Dual stereo output
10 Built-in filter capacitor

Parameters:
1 Product name:ZZ-502L
2 Model:ZZ-502L
3 Work Voltage:DC 12V-24V
4 Communication distance:15meter(Max)
5 Channel:Dual channel stereo output
6 Output impedance:4ohm~8ohm
7 Match speaker:30W~200W
8 Bluetooth:BLE 5.0
9 Output Power:
Output power 12W*2 at 12V 8ohm
Output power 20W*2 at 12V 4ohm
Output power 18W*2 at 15V 8ohm
Output power 30W*2 at 15V 4ohm
Output power 32W*2 at 19V 8ohm
Output power 45W*2 at 19V 4ohm
Output power 38W*2 at 24V 8ohm
Output power 55W*2 at 24V 4ohm
Module Size:104*50*17mm

Gambar produk
