Detail Modul YX5300 UART Serial MP3 Music Player YX-5300 Micro SD TF Card

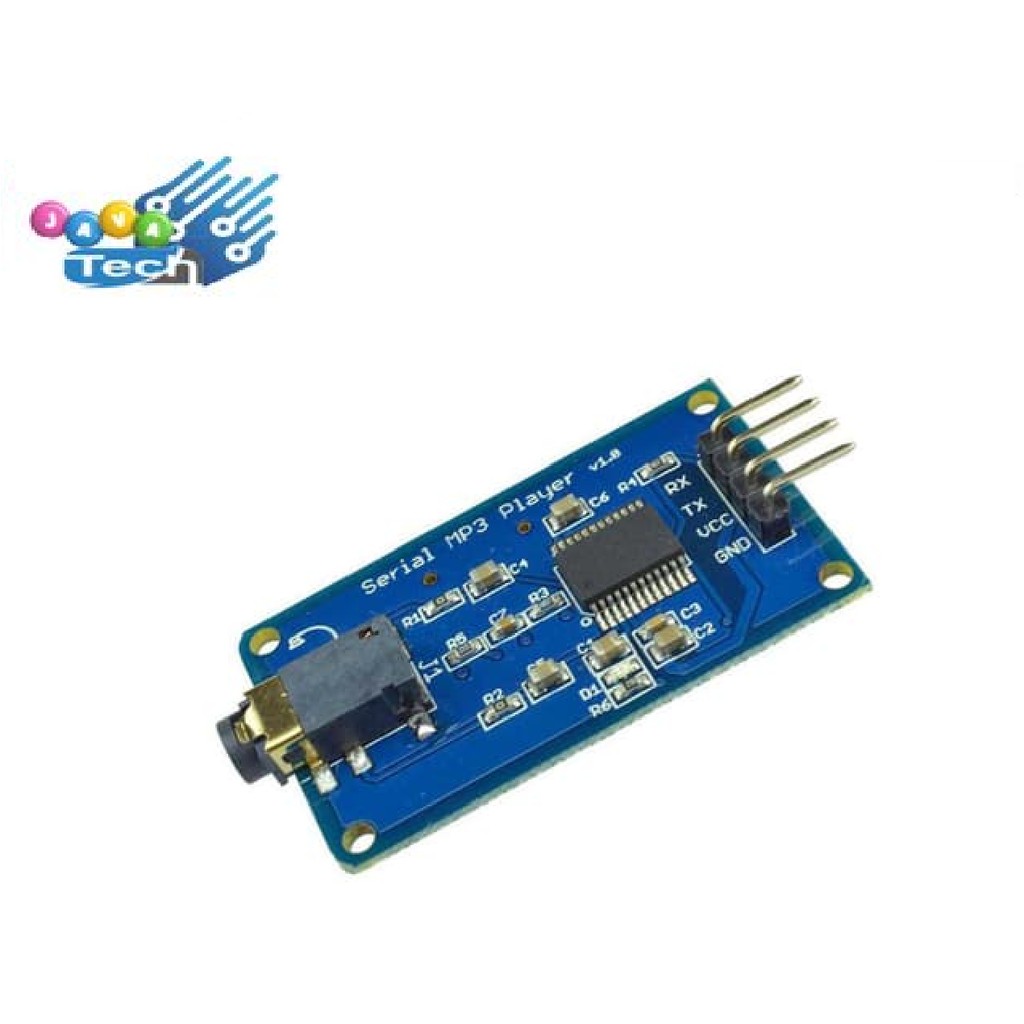

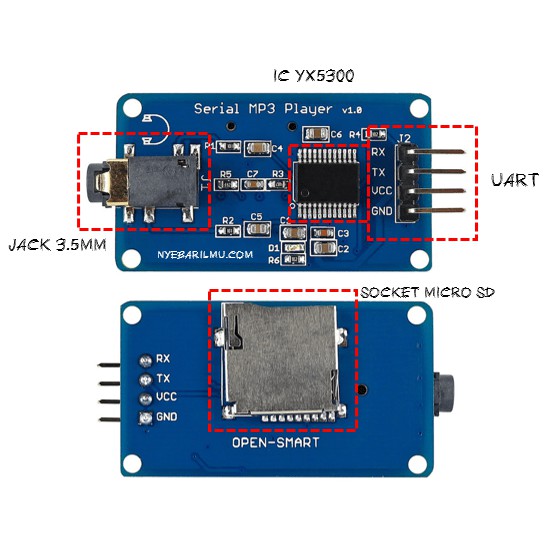

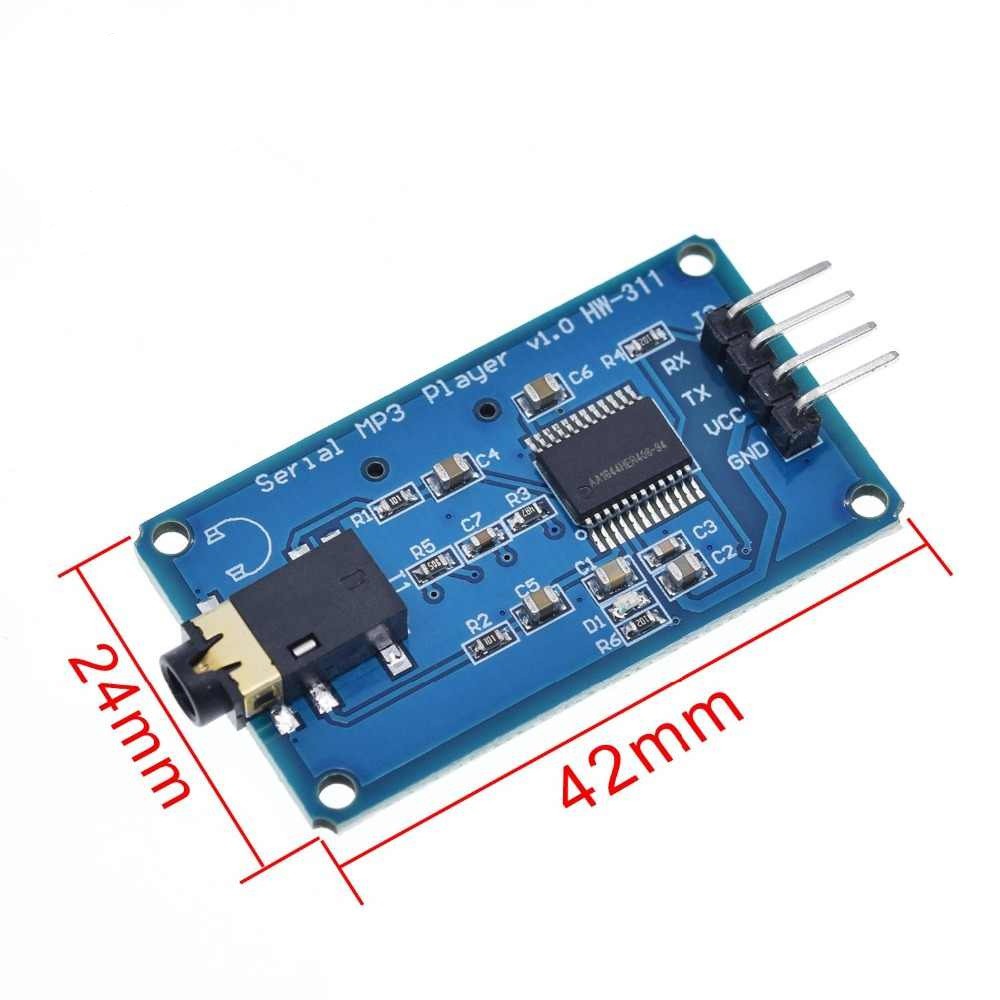

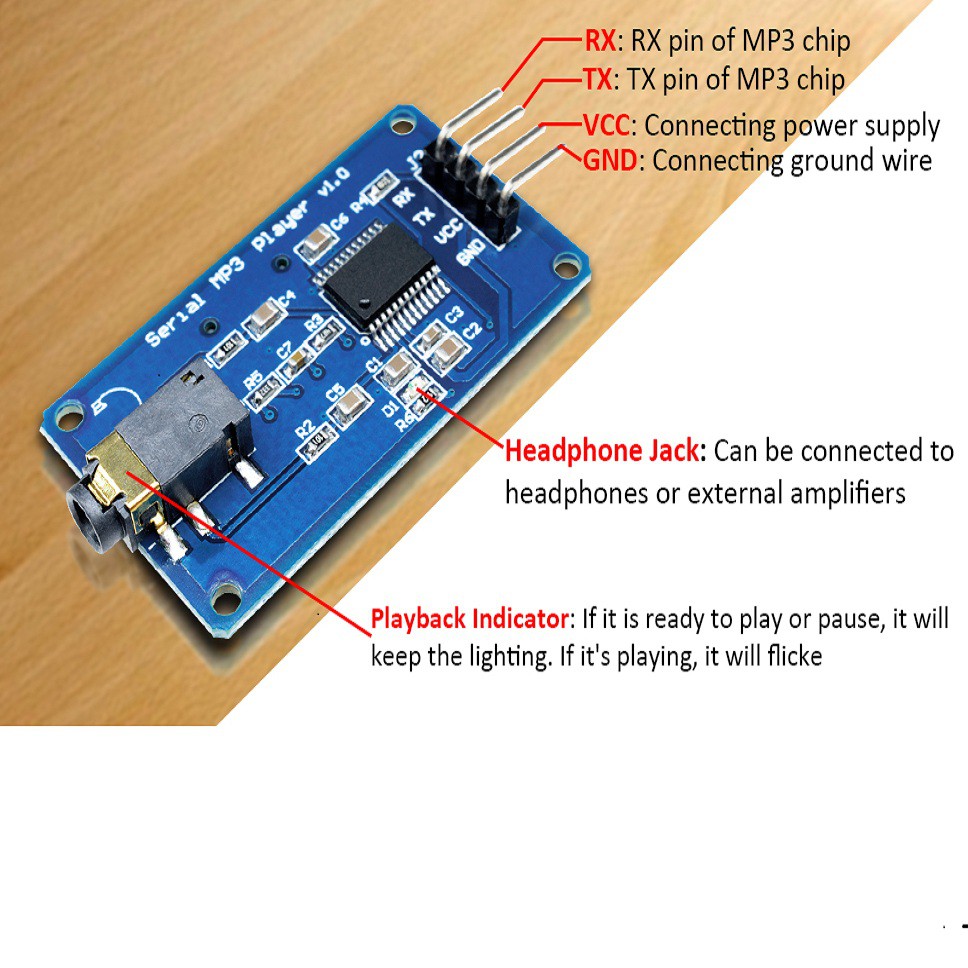

Modul YX5300 UART Serial MP3 Music Player YX-5300 Micro SD TF Card
Adalah module microSD MP3 player yang sangat simple dalam penggunaannya, cukup dengan komunikasi via serial TTL ke Arduino atau minsys sejenis, anda dapat mengontrol playback file musik (MP3 & WAV) didalam microSD.

Sangat cocok untuk penambahan fitur music player atau sound player (misal project anda mau menambahkan suara orang, suara pembacaan angka, huruf, dsj).

Output module ini adalah jack audio 3,5mm, bisa dihubungkan ke earphone atau audio in amplifier / speaker portable.

Spesifikasi:
- Support sampling frequency (kHz): 8 / 11.025 / 12 / 16 / 22.05 / 24 / 32 / 44.1 / 48
- Support file format: MP3 / WAV
- Support Micro SD card, TF Card
- 30 class adjustable volume
- Visit Tokoduino dot com
- UART TTL serial control playback mode, baud rate is 9600bps
- Power supply can be 3.2 ~ 5.2VDC
- Audio output via 3,5mm audio jack
