Modul XL6019 5A DC-DC Adjustable Step up Boost Converter Module

Detail Modul XL6019 5A DC-DC Adjustable Step up Boost Converter Module

Modul XL6019 5A DC-DC Adjustable Step up Boost Converter Module
1. Conventional constant voltage output topology BOOST fully integrated solutions, integrated MOSFET, fewer external components, lower system cost
2. Wide voltage range input,the input voltage up to 35V
3. Output voltage is adjustable,supports up to 40V
4. Built-in over-temperature protection, overcurrent protection circuit full set of reliability, high reliability
5. The system conversion efficiency of over 90%, to facilitate thermal design
6.TO263-5L standard package,suitable for 30W boost applications within.

Instructions:
1. Power (3-35V), power indicator light, the module is working properly.
2. Adjust the blue potentiometer knob (counter-clockwise general boost, buck clockwise rotation) and with a multimeter to monitor the output voltage reaches the required voltage.

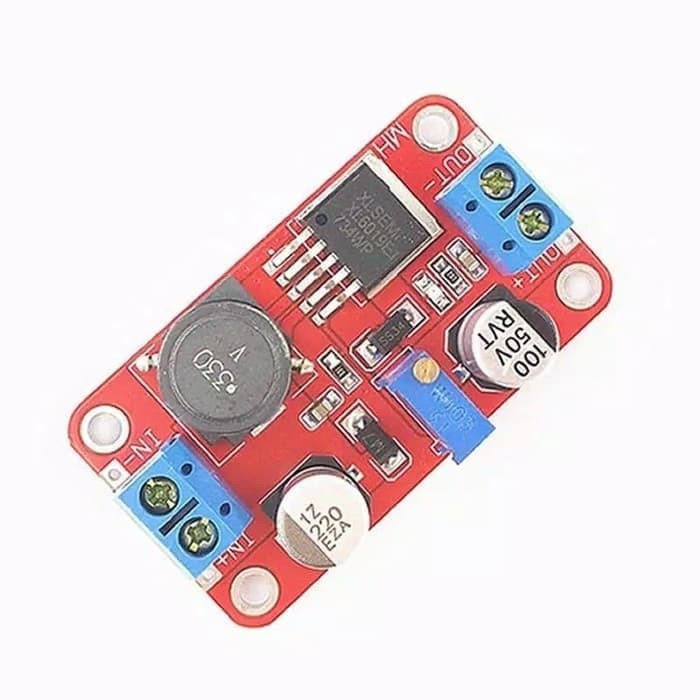

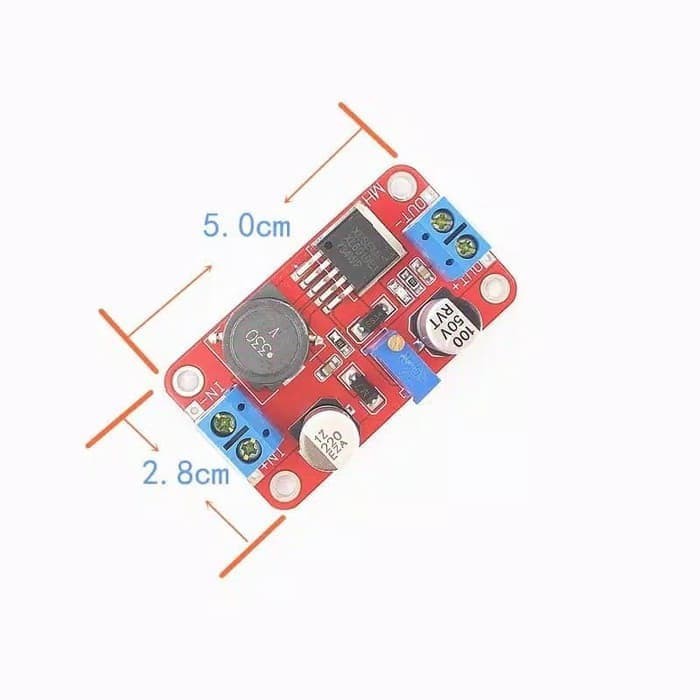

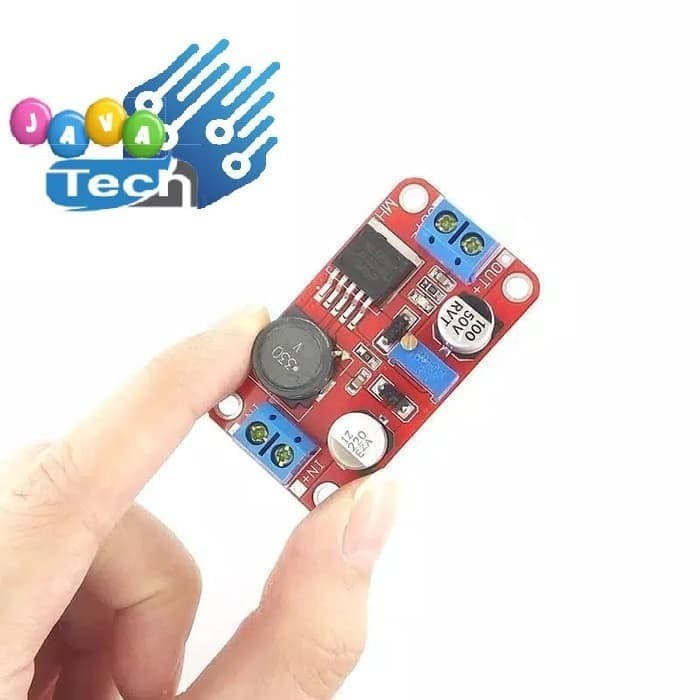

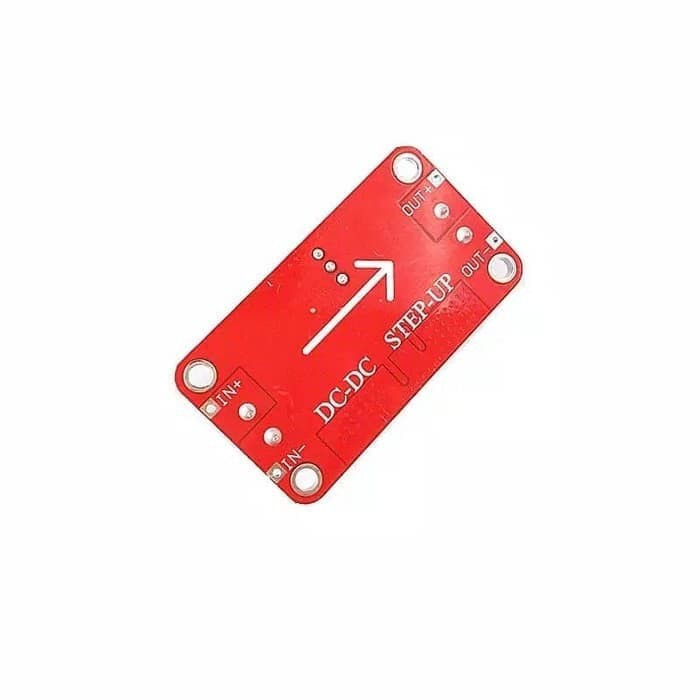

Gambar produk
