Modul XL4015 Voltmeter Ammeter Step Down DC-DC Converter 5A CC CV

Detail Modul XL4015 Voltmeter Ammeter Step Down DC-DC Converter 5A CC CV

Deskripsi Modul XL4015 Voltmeter Ammeter Step Down DC-DC Converter 5A CC CV
Rectification: Non-synchronous rectification
Input voltage: 5V-30V
Output voltage: 0.8V-29V
Output current: maximum 5A (more than 3A to strengthen the heat)
Conversion efficiency: 95% (highest)
Switching frequency: 300KHz
Output ripple: 50mV (max) 20M bandwidth
Load regulation: ± 0.5%
Voltage regulation: ± 2.5%
Operating temperature: -40 ℃ to +85 ℃
Size: 5.1*2.63*1cm
Color: multicolor
Material: electronic components

Features:
<< High efficiency: The module uses chips with high efficiency up to 95%, and can go to 5A current.
<< The voltage difference between input and output is 1V, with a minimum output voltage of 0.8v.
<< This module is an adjustable step-down module. The output voltage can be changed by adjusting the blue adjustable resistor on the module.

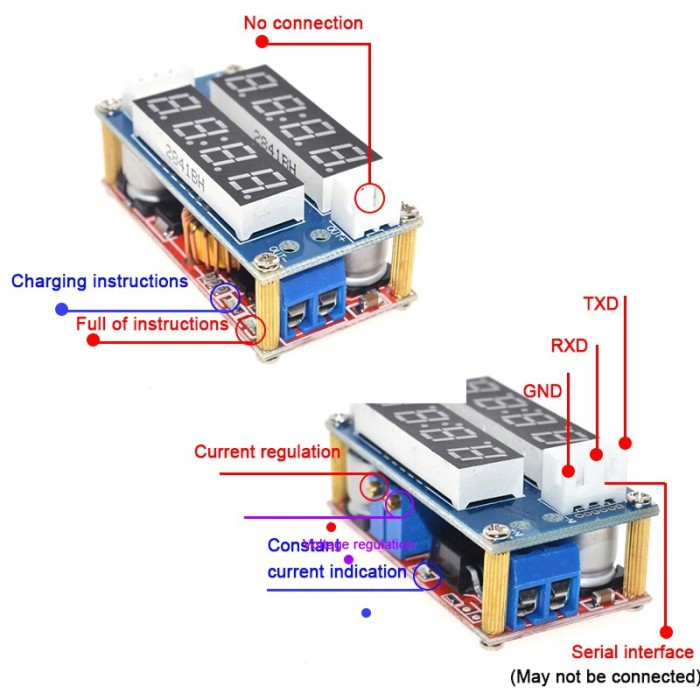

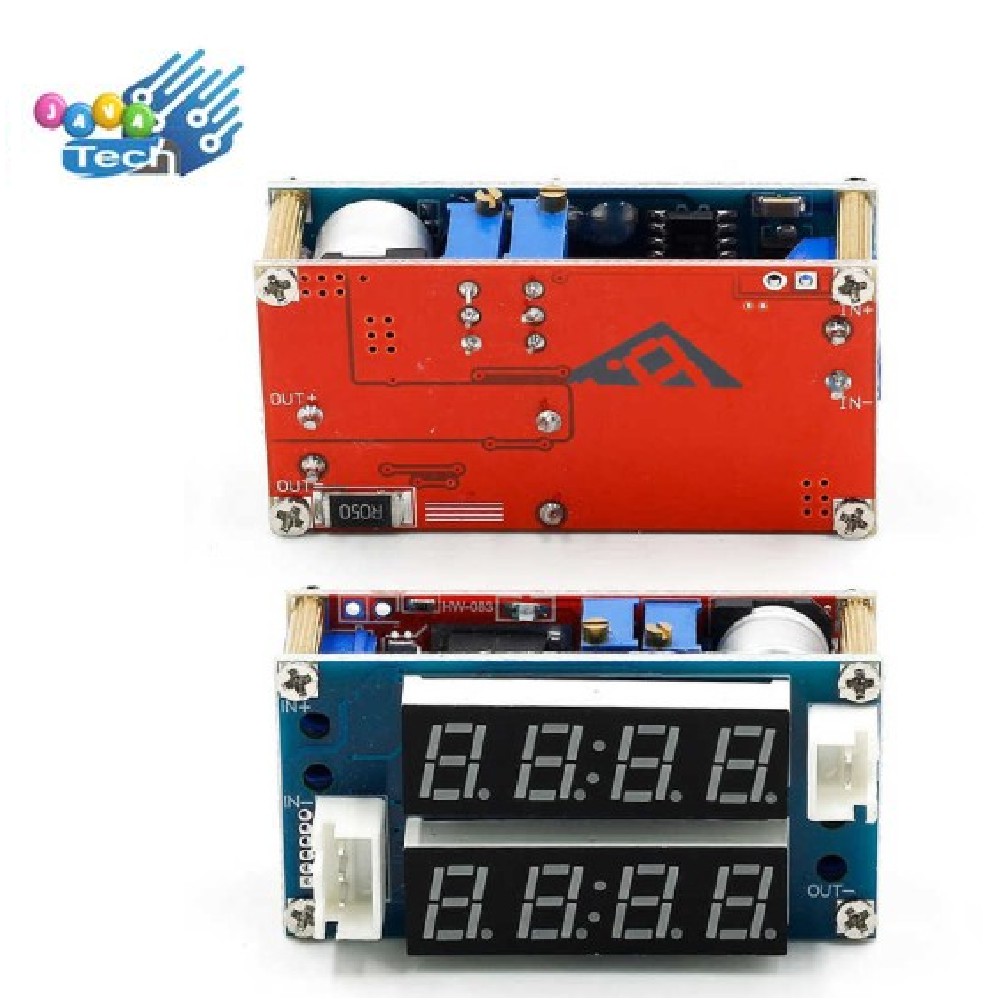

<< Module above marked IN-(input negative), IN+(input positive), OUT-(output negative), OUT+(output positive) must be correctly connected, otherwise it may lead to module damage.

Notes:
1. Please allowed 1-3mm differences due to manual measurement, thank you for your understanding!
2. Due to the difference between different monitors, please understand that the picture may not reflect the actual color of the item.
