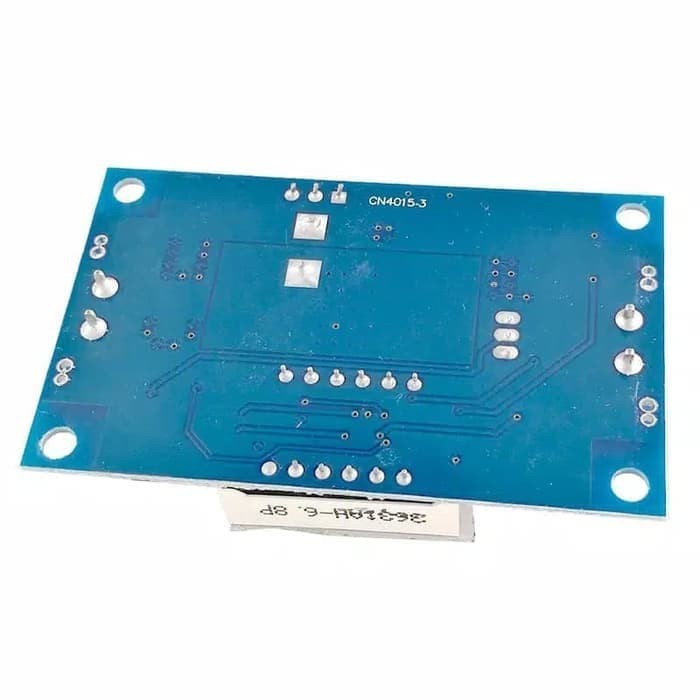

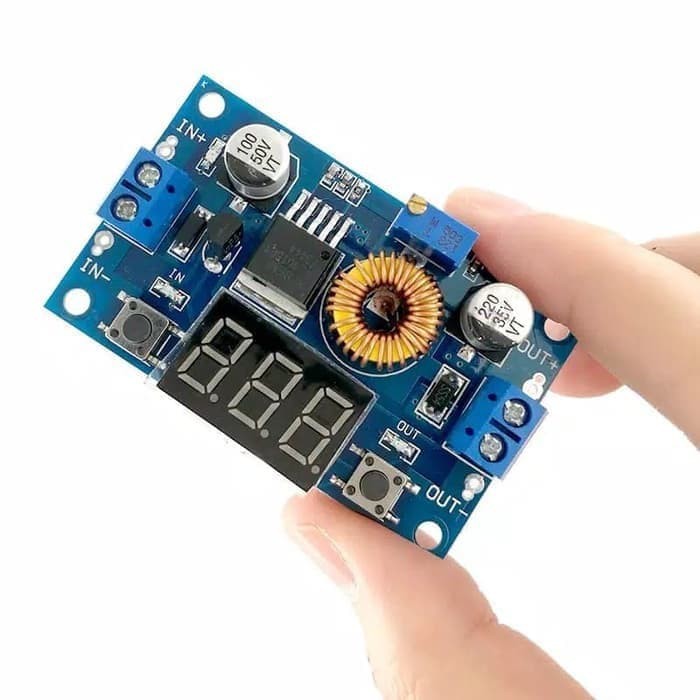

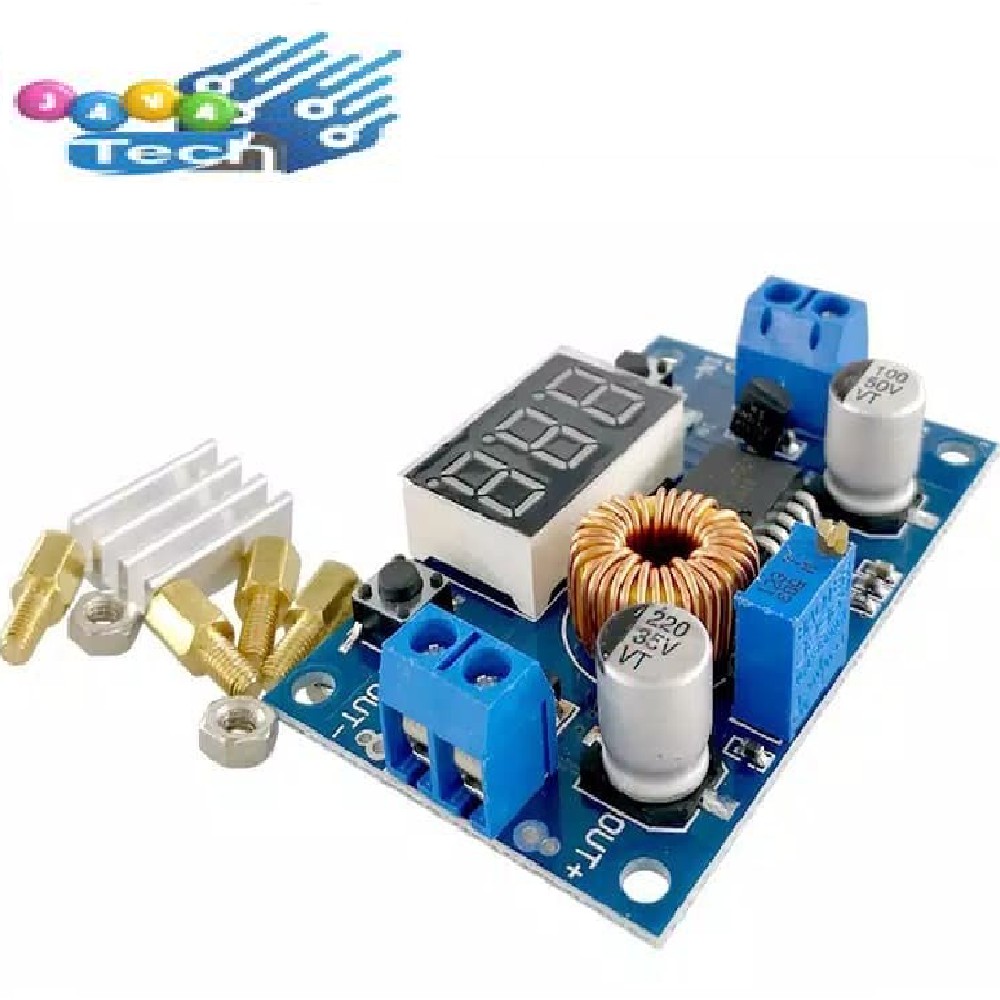

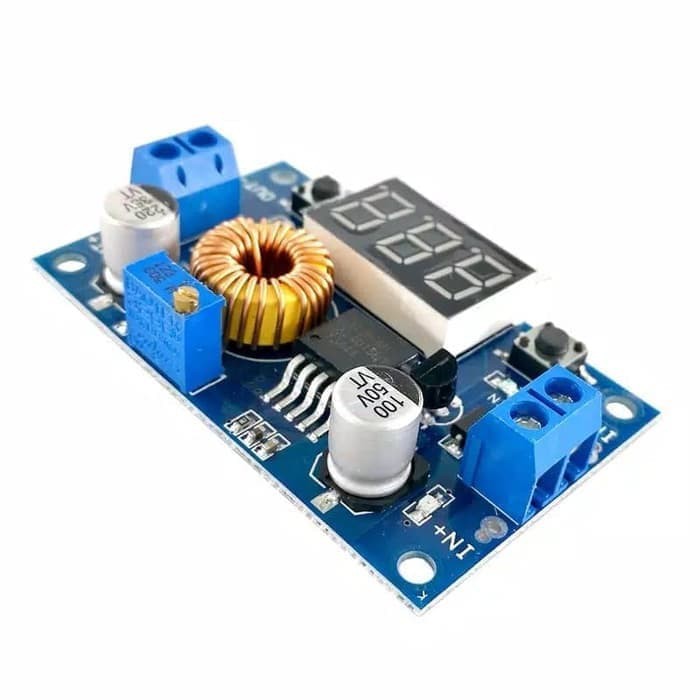

Modul XL4015 DC-DC Step Down Module 5A 75W (with Voltmeter)

Detail Modul XL4015 DC-DC Step Down Module 5A 75W (with Voltmeter)

- Wide 8V to 36V Input Voltage Range
- Output Adjustable from 1.25V to 36V
- Maximum Duty Cycle 100%
- Minimum Drop Out 0.3V
- Fixed 180KHz Switching Frequency
- 5A Constant Output Current Capability
- Internal Optimize Power MOSFET
- High efficiency up to 96%
- Excellent line and load regulation
- Built in thermal shutdown function
- Built in current limit function
- Built in output short protection function

datasheet
http://i-makers•info/resource/XL4015%20datashee...

Onboard voltage meter, voltmeter can be self-calibration, it will never exist voltmeter problem of inaccurate! !
-With power indicator light
-With voltmeter shows and voltmeter can be self-calibration. It uses a more advanced microprocessor voltage voltmeter error 0.05V, Range 0 ~ 40V. (Note: To ensure the accuracy of voltmeter, please ensure that the input voltage is above 4.5V)

-Touch of a button to switch measuring input or output voltage, and has a light show which is being measured voltages, and save the settings, even if powered off and then on.

Gambar produk
