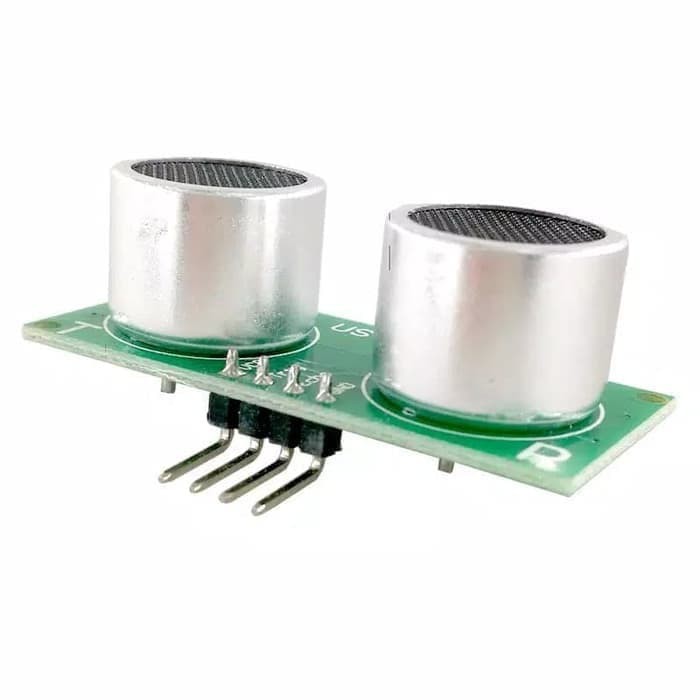

Detail Modul US-015 Ultrasonic Module Distance Transducer Sensor Jarak US015
Modul US-015 Ultrasonic Module Distance Transducer Sensor Jarak US015 Up to 7 Meter Measurement
Description: This US-015 ultrasonic module can realize 2 ~ 700cm of non-contact ranging function, has 5 V of wide voltage input range, static power consumption is less than 3mA. Their own temperature sensor will revise the ranging and has many communication modes like GPIO, just like watchdog inside, very stable and reliable.
Feature : US-015 ultrasonic module distance measuring sensor Working voltage: DC 5 V Static current: 3 mA Working temperature: 0 ~ + 70 Output way: GPIO Induction Angle: Less than 15 Detection range:2 cm to 700 cm Detecting precision: 0.3 cm + 1% Sensor size: Approx. 45 x 20 x 1.6mm Hole diameter: Approx. 1mm
