Modul UPS 5V - 12V to 9V / 12V DC Module Charging Power Supply Control

Detail Modul UPS 5V - 12V to 9V / 12V DC Module Charging Power Supply Control

Feature:
Support charging and discharging at the same time
Large current
Small size
High efficiency
Support short circuit protection

Specification:
Product Name: UPS Voltage Converter Module
Working Voltage: DC 5.0V-12.0V
Output Voltage: DC 9V/DC 12.0V(Option)
Output Power: 9W/12W
Support Battery: 3.7V Lithium or polymer battery 15Ah(Max) (No include!)
Working Temperature range: -40 -85℃
Working Humidity range: 0%-95%RH
Size: 50*20*6.3mm

Using Steps:

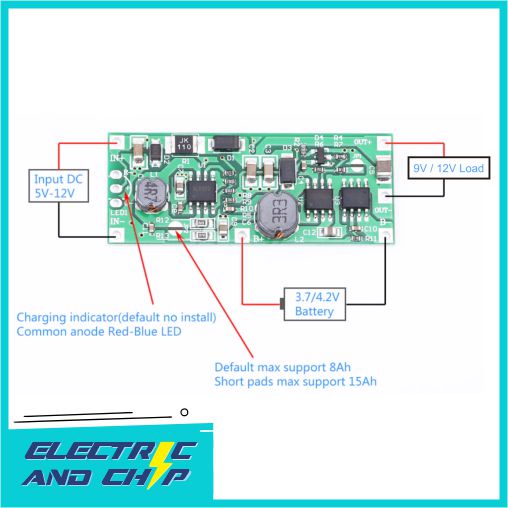

Connect right input voltage at input terminal.
Check output voltage by voltmeter and ammeter.
Connect battery at B+ and B-.

Note:
Its max output current is 1A and can’t keep output 1A.
The positive and negative poles of the input power supply cannot be reversed Otherwise the module will be damaged.
Users can install a common anode Red-Blue LED by yourself as charging indicators. Blue light indicates whether there is a load at output. Keep Red is charging. There is no battery if Red flashing. Red OFF if charged.
Due to the large current, it is recommended to use a thicker wire. Wire cross-section greater than 1.5 square millimeters.
Please read use manual and description before use.

Application:
Ordinary power supply
Battery charger
Mobile power
Power conversion
Infrared alarm
Network equipment such as switches
Router
Battery car modification
