Modul ULN2003 STEPPER MOTOR DRIVER MODULE SMD 5V - 12V

Detail Modul ULN2003 STEPPER MOTOR DRIVER MODULE SMD 5V - 12V

Modul ULN2003 STEPPER MOTOR DRIVER MODULE SMD 5V - 12V
Spesifikasi
- onboard ULN2003A motor drive chip
- all pins of the chip leads for easy connection to use
- 5-pin 12V power supply
- onboard 4-way signal lights
- the onboard XH-5P socket can be connected directly 28BYJ-48 Model stepper motor
- PCB board size: 40.5 (mm) x21.3 (mm)

Model ULN2003
Quantity 1
Color Blue + black
Material PCB + electronic components
Features Lead out all the connection pins, convenient to use
Specification Onboard ULN2003A motor driver chip; Lead out all the connection pins, convenient to use; Power supply: 5~12V; Onboard 4-channel signal indicator light; Onboard XH-5P connector, can connect to the 28BYJ-48 step motor directly; PCB size: 40.5 x 21.3mm
Application Onboard XH-5P connector, can connect to the 28BYJ-48 step motor directly
English Manual/Spec Yes
Packing List 1 x Driver board
Dimensions: 1.61 in x 0.83 in x 0.43 in (4.1 cm x 2.1 cm x 1.1 cm)
Weight: 0.18 oz (5 g)

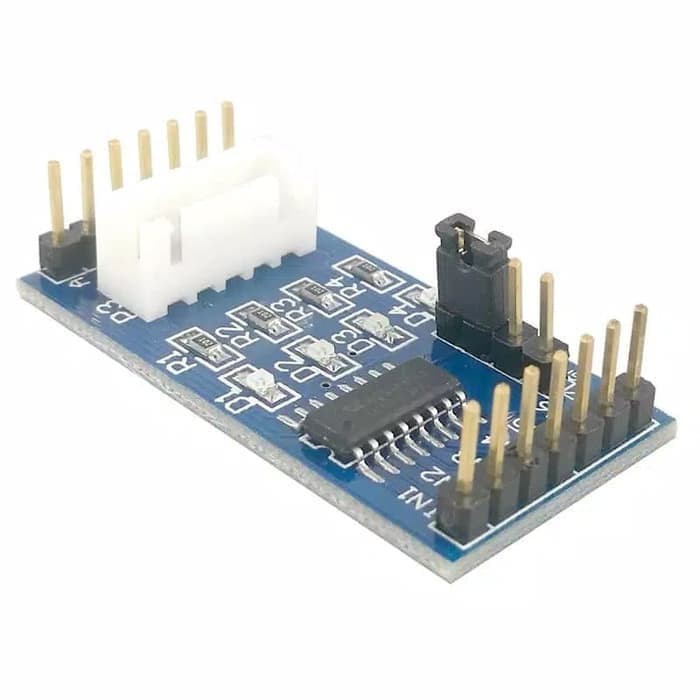

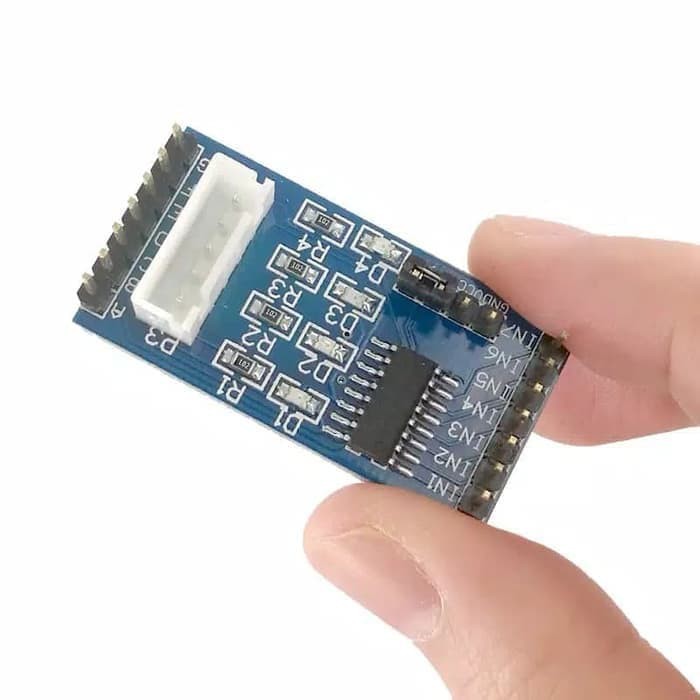

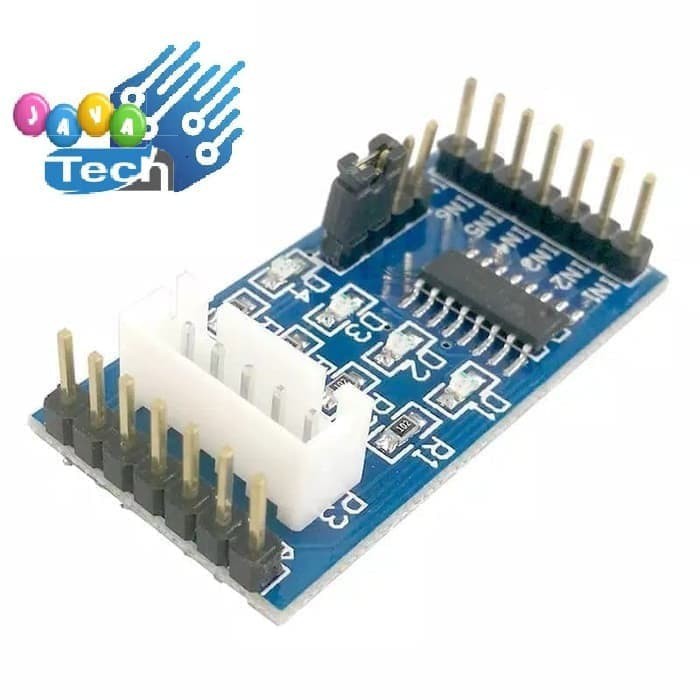

Gambar produk
