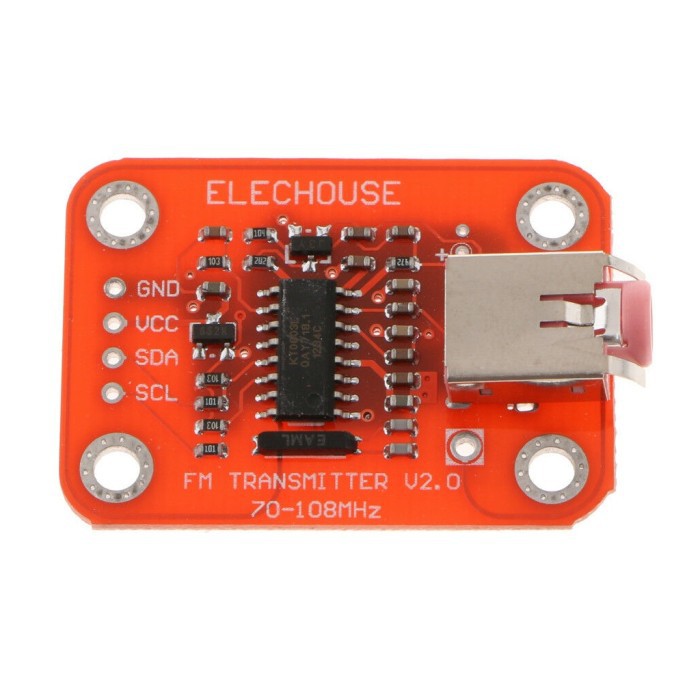

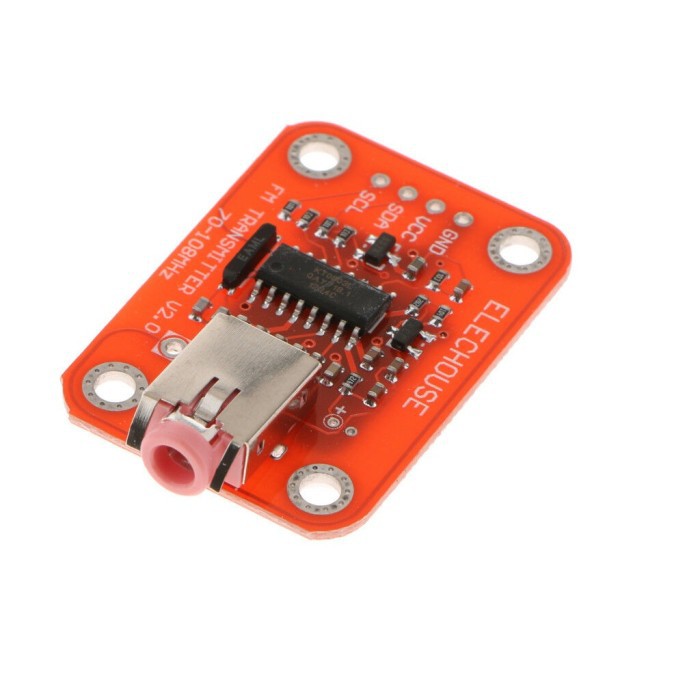

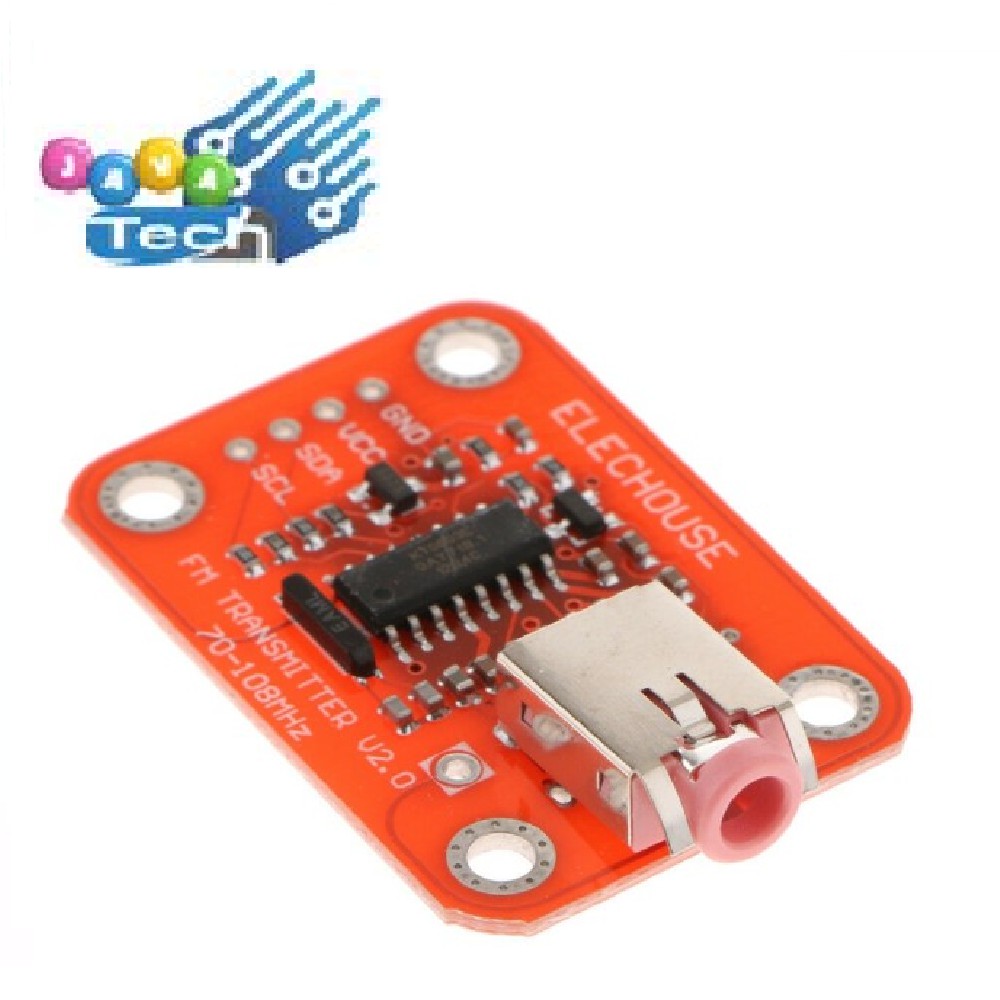

Detail Modul Transmitter FM Radio V2.0 I2C Interface 70-108MHz

Deskripsi Modul Transmitter FM Radio V2.0 I2C Interface 70-108MHz
Feature :

1) I2C interface 5V TTL compatible
2) for Arduino plug and play
3) Onboard MIC
4) VCC Input: 3.0V ~ 5.0V

you could wire them in the following way :
for Arduino connect with FM Module as below :

GND connect with GND
5V connect with VCC
SDA connect with SDA
SCL connect with SCL

Then connect the antenna.
Any metal line about 75cm can serves as an antenna.
