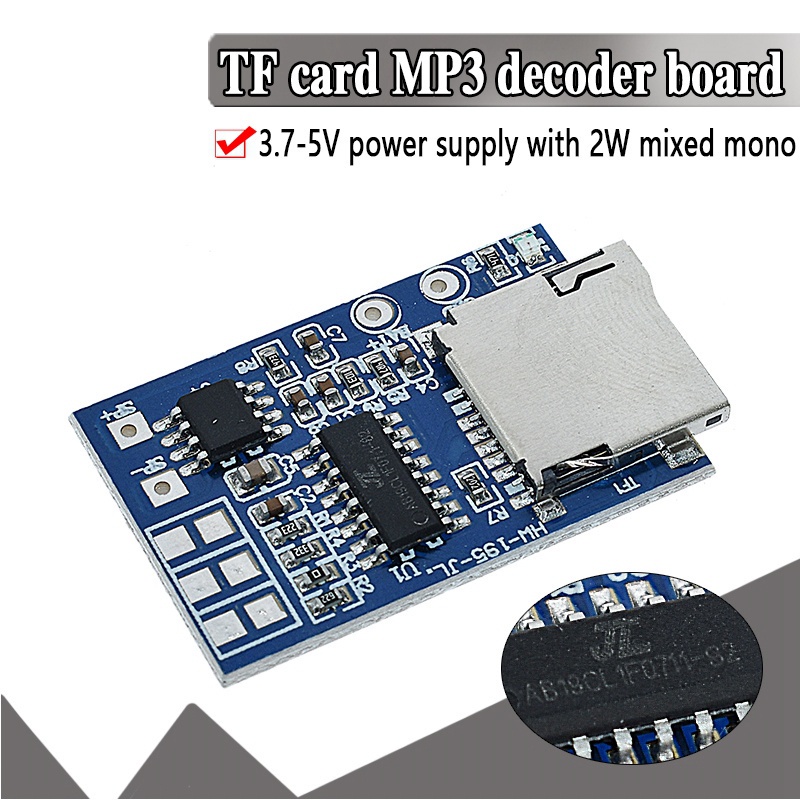

Modul TF Card MP3 Decoder Board Plus Mono 2W Amplifier

Elektronik > Elektronik Lainnya > Modul TF Card MP3 Decoder Board Plus Mono 2W Amplifier
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail Modul TF Card MP3 Decoder Board Plus Mono 2W Amplifier

Features:
- B+ 3.7v- 5v. Bisa dari baterai 18650/ charge hp (kabel dimodif)
- Amplifier mono 2watt

- S1 = pin untuk tombol next/ vol + (tekan dan tahan)
- S2 = pin untuk tombol play/ pause
- S3 = pin untuk tombol prev/ vol - (tekan dan tahan)
- S1/S2/S3 = switch, yang dipasang/disolder sendiri (bukan bagian dari modul yang dikirim)


Informasi lain;

Working Voltage: 3.7V Lithium Battery 600MA or 5V USB Power Supply
Chip:GPD2846A (tidak harus sama dengan chip yang dikirim)
Chip Footprint:SOP16
PCB Size:34.23MM*22.33MM*3.5MM
with 2W Mixed mono
With Power supply ,it can play Automaticly
With LED indicator
Supports MP3 format playback
Supports USB audio mode .
Supports 3 types FM radio chip : RDA5807, BK1080 and RTC6207E. (yang dikirim hanya support mp3).
Does not support infrared remote control.
Does not support USB device mode

#mp3player #minimediaplayer #amplifier #mp3decoder
