Modul STM32F103C8T6 ARM STM32 Minimum System Development Board Module

Detail Modul STM32F103C8T6 ARM STM32 Minimum System Development Board Module

Minimum System STM32F103C6T6 adalah cara paling praktis dan murah untuk belajar pemrograman STM32, dibandingkan evaluation board lainnya (seperti nucleo, Discovery dll).

FITUR
On-board Mini USB interface, you can give the board power supply and USB communication.
On-board test indicator LED
On-board reset button and power indicator LED
On-board 100ma 3.3V Regulator
All GPIO are led out and the names of the pins are marked
After soldering the headers, you can directly plug the board onto the breadboard

ARM 32-bit Cortex™-M3 CPU Core
72 MHz maximum frequency,1.25 DMIPS/MHz (Dhrystone 2.1) performance at 0 wait state memory access
Single-cycle multiplication and hardware division
Memories
16 or 32 Kbytes of Flash memory
6 or 10 Kbytes of SRAM
Clock, reset and supply management
2.0 to 3.6 V application supply and I/Os
POR, PDR, and programmable voltage detector (PVD)
4-to-16 MHz crystal oscillator
Internal 8 MHz factory-trimmed RC
Internal 40 kHz RC
PLL for CPU clock
32 kHz oscillator for RTC with calibration
Low power
Sleep, Stop and Standby modes
VBAT supply for RTC and backup registers
2 x 12-bit, 1 μs A/D converters (up to 16 channels)
Conversion range: 0 to 3.6 V
Dual-sample and hold capability
Temperature sensor
DMA
7-channel DMA controller
Peripherals supported: timers, ADC, SPIs, I2Cs and USARTs
Up to 51 fast I/O ports
26/37/51 I/Os, all mappable on 16 external interrupt vectors and almost all 5 V-tolerant
Debug mode
Serial wire debug (SWD) & JTAG interfaces
6 timers
Two 16-bit timers, each with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input
16-bit, motor control PWM timer with dead-time generation and emergency stop
2 watchdog timers (Independent and Window)
SysTick timer 24-bit downcounter
6 communication interfaces
1 x I2C interface (SMBus/PMBus)
2 × USARTs (ISO 7816 interface, LIN, IrDA capability, modem control)
1 × SPI (18 Mbit/s)
CAN interface (2.0B Active)
USB 2.0 full-speed interface

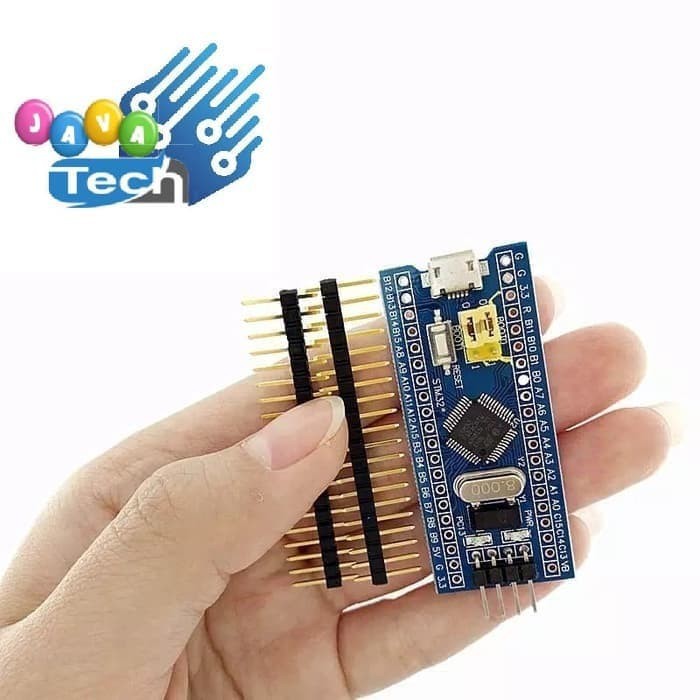

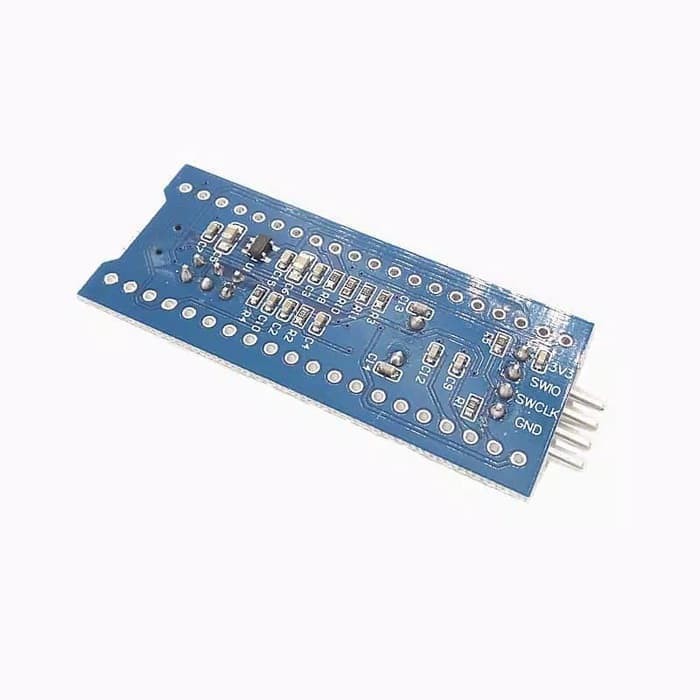

Gambar produk
