Modul Stepdown DC-DC Converter USB QC 2.0 QC 3.0 Quick Charge Output

Detail Modul Stepdown DC-DC Converter USB QC 2.0 QC 3.0 Quick Charge Output

Deskripsi Modul Stepdown DC-DC Converter USB QC 2.0 QC 3.0 Quick Charge Output
Specification:

Input voltage range: 6V - 32V
Output Voltage: default is 5V. Once fast charge is triggered, it automatically adjusts between 3 and 12V.
Output Power. 24W (5V, 3.4A, 9V, 2.5A, 12V, 2A, etc.)
Output voltage compensation cable
Conversion efficiency: 90% -97%
Supports multiple fast charging protocols
Overvoltage input, undervoltage protection
Input over-current protection
Output overcurrent and short circuit protection
Over temperature protection

Support protocol fast charging
For the iPhone BC1.2 Samsung Agreement
Qualcomm QC2.O and QC3.O

MTKPEI.1 / PE2.O
Fast charge FCP Protocol
Star Fast Charge AFC Protocol
Fast Cost Spreadtrum SFCP Agreement

Application:

Solar panel for cell phone charging
Retrofit car charging
Driving power supply recorder
Power conversion house

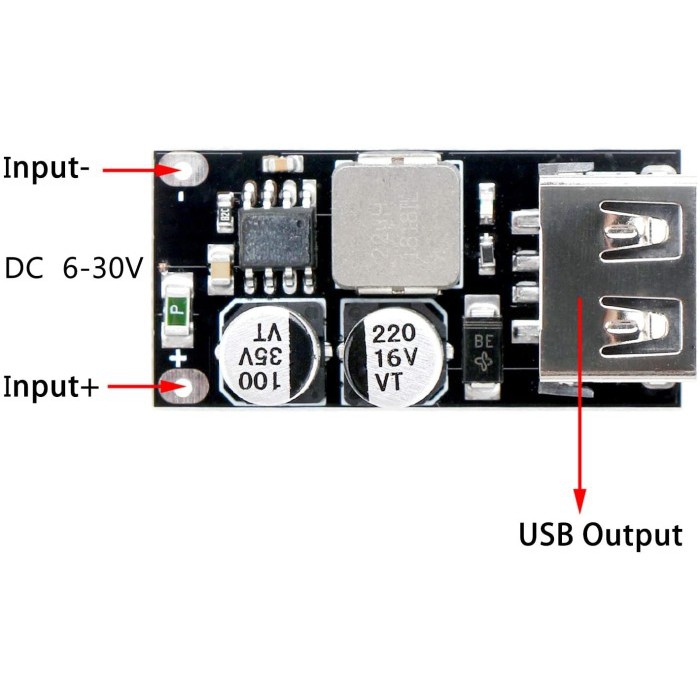

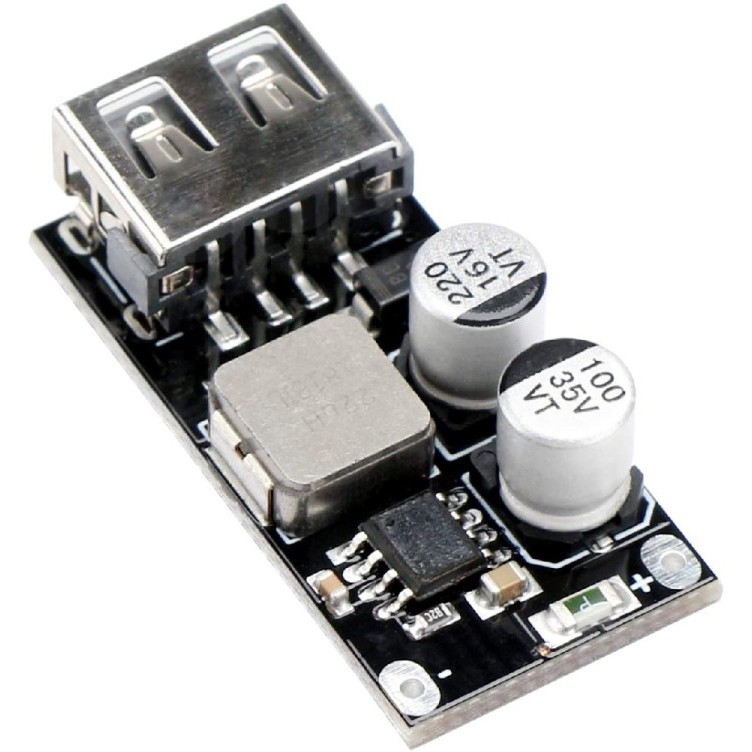

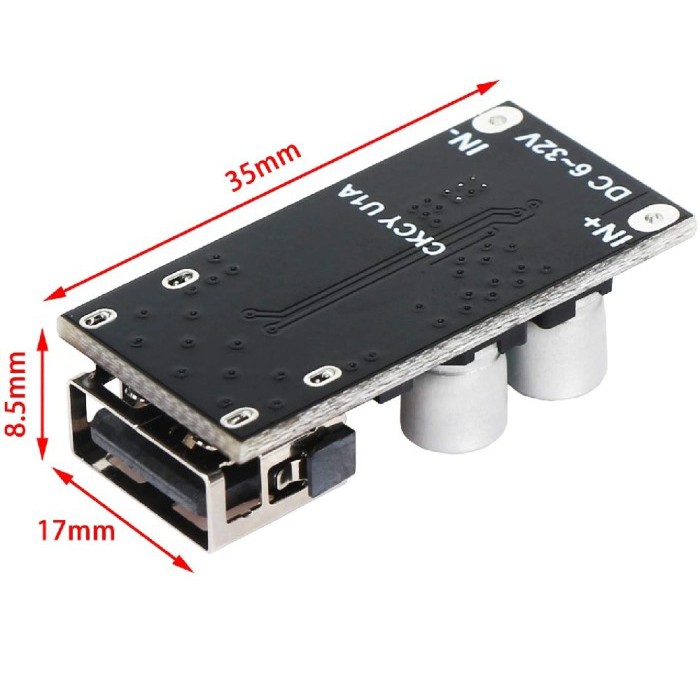

Gambar produk
