Modul Stepdown DC-DC 6-26V Dual USB Output 5V 3A

Detail Modul Stepdown DC-DC 6-26V Dual USB Output 5V 3A

Deskripsi Modul Stepdown DC-DC 6-26V Dual USB Output 5V 3A
Specification:
Compatible mobile models: Android for iPhone for Huawei for Xiaomi for Nokia
Input voltage range: 6-24V
Output Voltage: 5.2V (Considering the loss of charging line output is 5.3-5.4V load is 5.1-5.2V)
Output current: 3A (stable output current is 2A without heat sink)
Size: 31*27*9mm/1.22*1.06*0.35''

Warm Tips:
1) The input voltage should not exceed 24V otherwise the chip will be damaged.

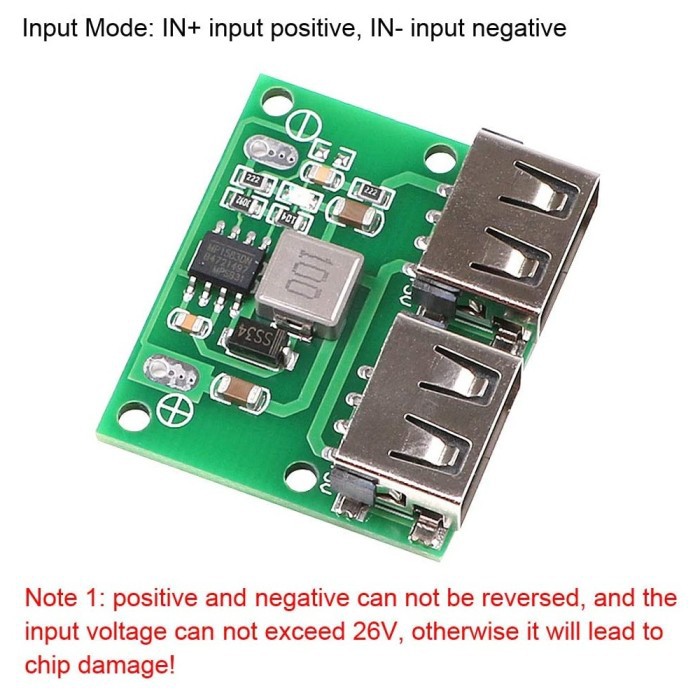

2) Input positive and negative poles can not be reversed otherwise the chip will be damaged.

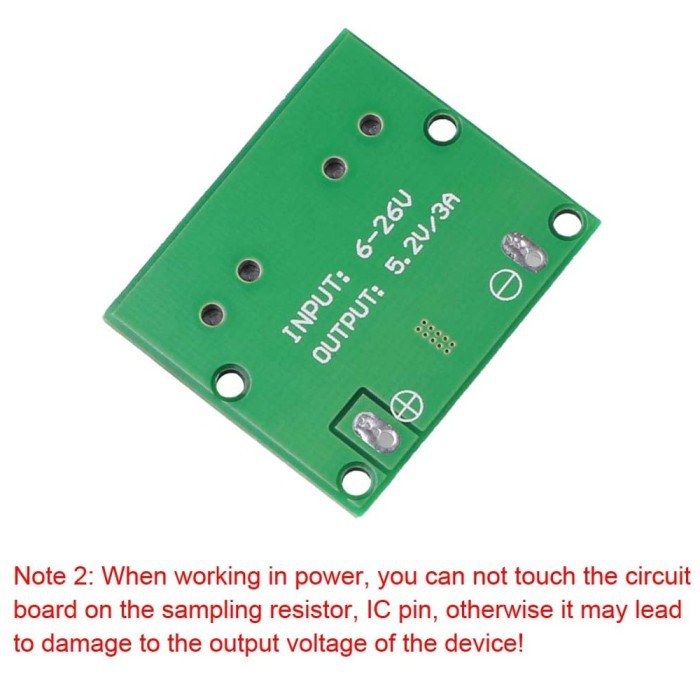

3) Do not touch the resistance capacitance and IC foot of the circuit board with your hands when working on power otherwise it may cause sudden change of output voltage to damage the equipment.

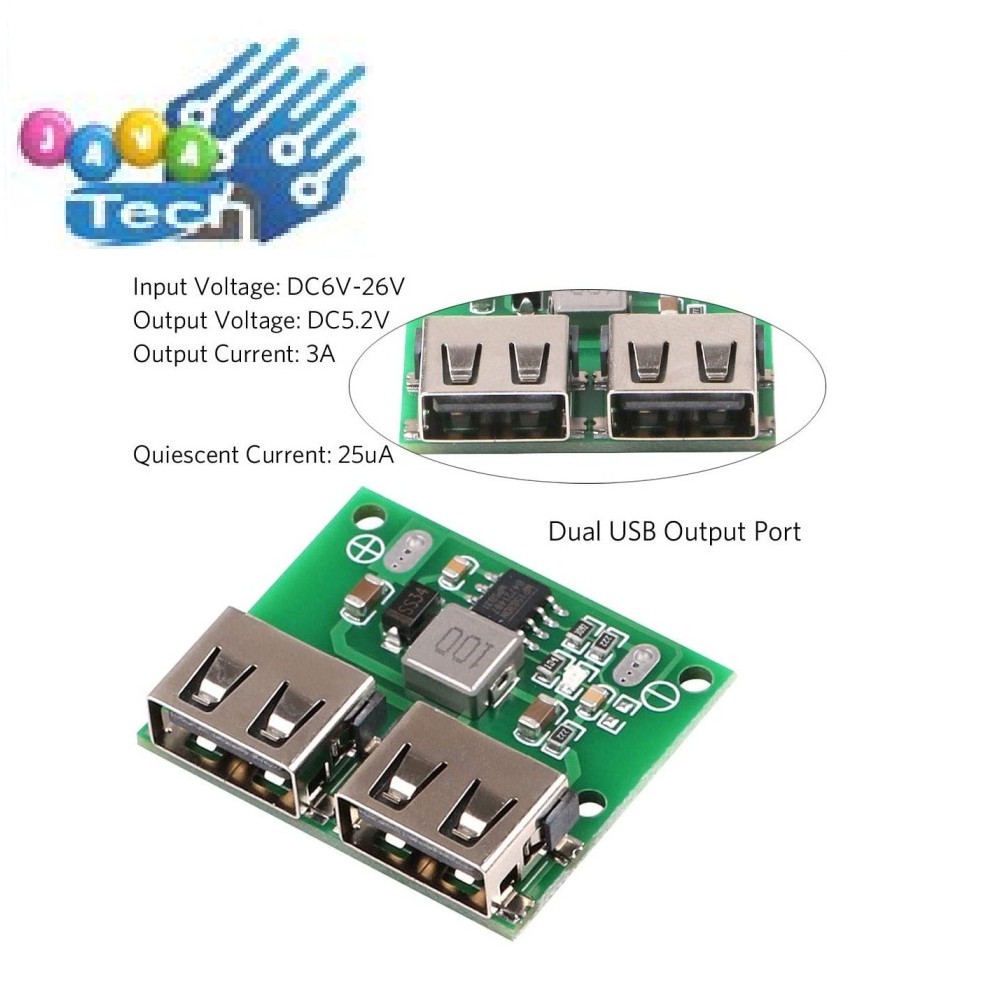

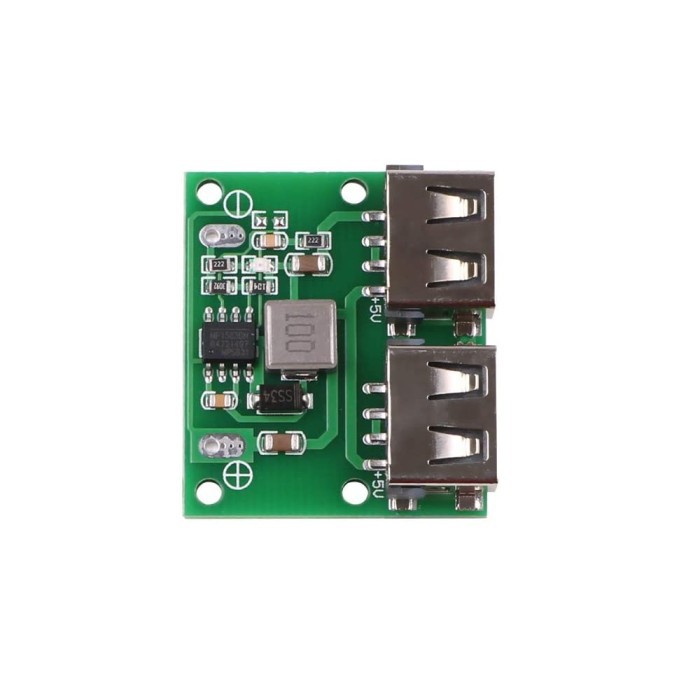

Gambar produk
