Modul Step Up High Volage DC 8-32V to DC 45-390V Boost Converter

Detail Modul Step Up High Volage DC 8-32V to DC 45-390V Boost Converter

Module Properties: Non-isolated step-up module
Input Voltage: 8~32V input (the default is 10~32V input.)
Input Current: 5A (Max)
Quiescent current: 15mA (12V to 50V, the current will increase for higher output)
Output Voltage: +45~390V continuously adjustable (default output 50V)
Output Current: 0.2A Max (the higher the output voltage, output current is smaller)
Output Power: 40W (Peak 70W)
Working Temperature: -40 ~ + 85 degrees (ambient temperature is too high, please enhance heat dissipation)
Operating frequency: 75 KHz
Conversion efficiency: up to 88% (efficiency and input and output voltage, current, pressurerelated)
Short circuit protection: Yes.
Over current protection: Yes. (Input current exceeds 4.5A, reducing the output voltage)
Over voltage protection: Yes. (Output voltage exceeds 410V, lowering the output voltage)
Input reverse polarity protection: Yes (non-self-healing, reverse burning fuse, try not reversed.)
Installation: Four 3 mm screws
Wiring: Output terminals
Size(L*W*H):60 x 50 x 20 mm

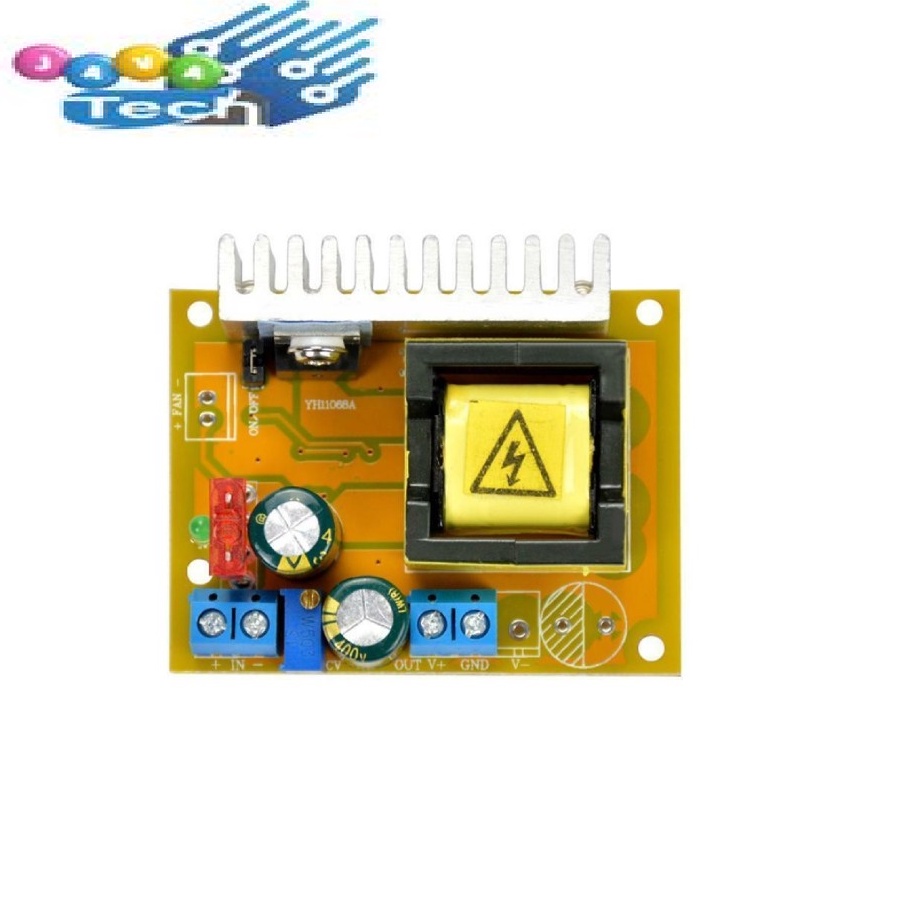

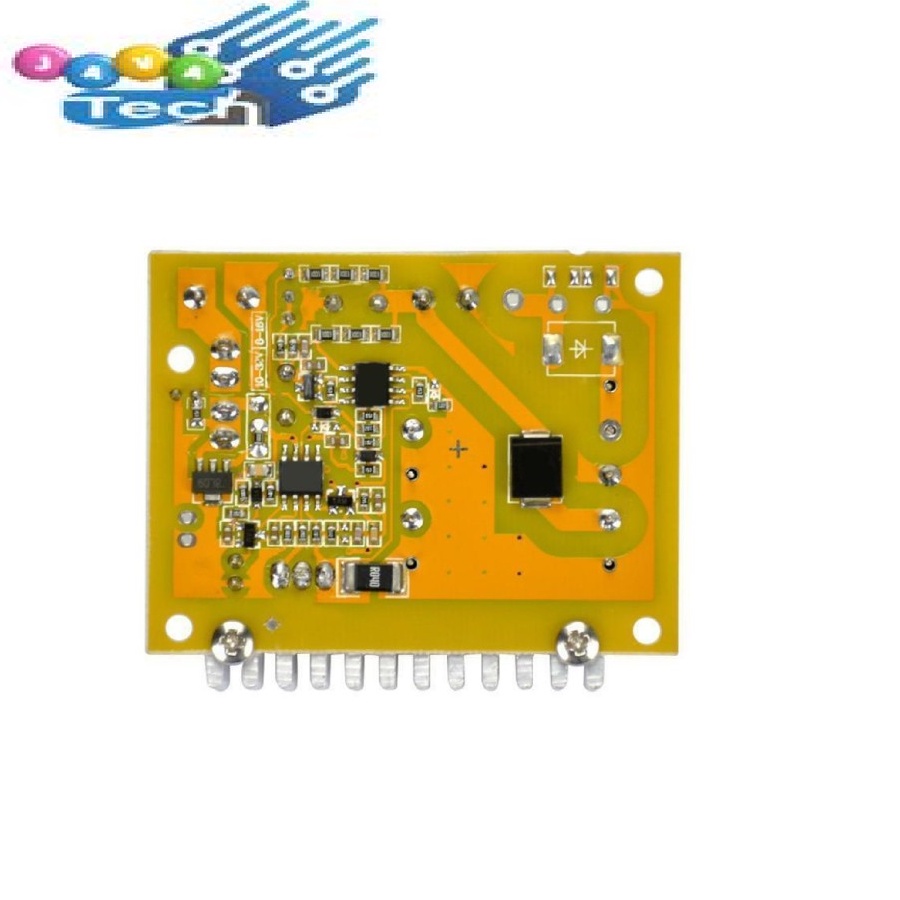

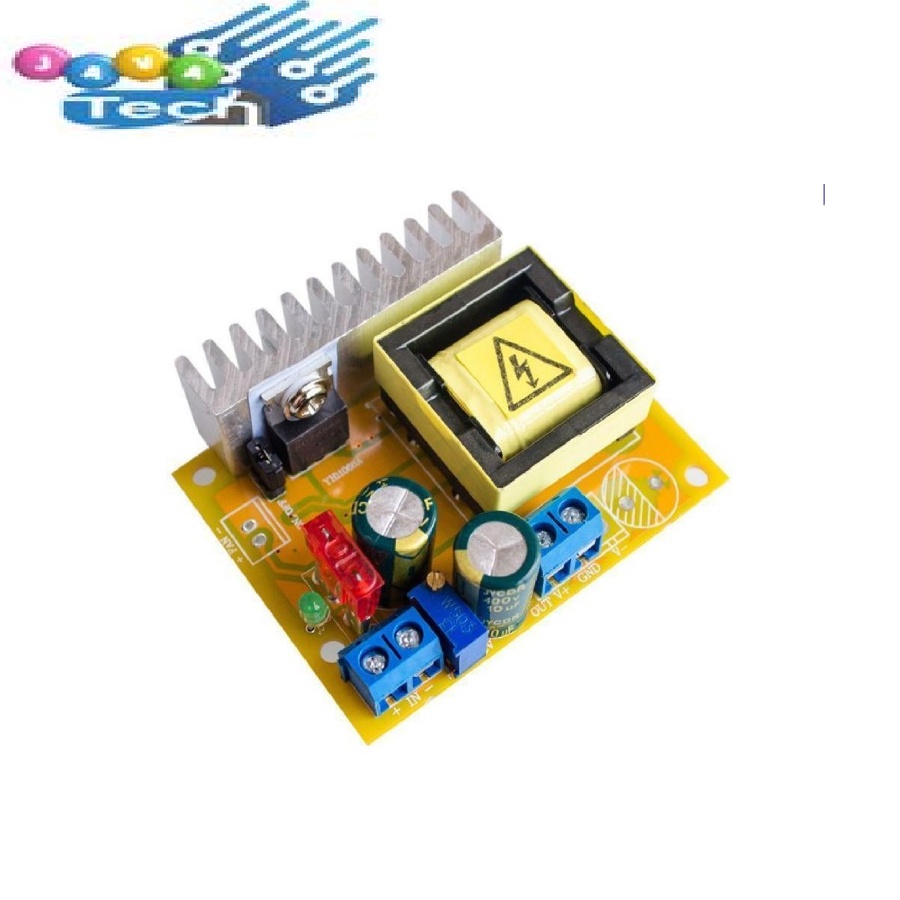

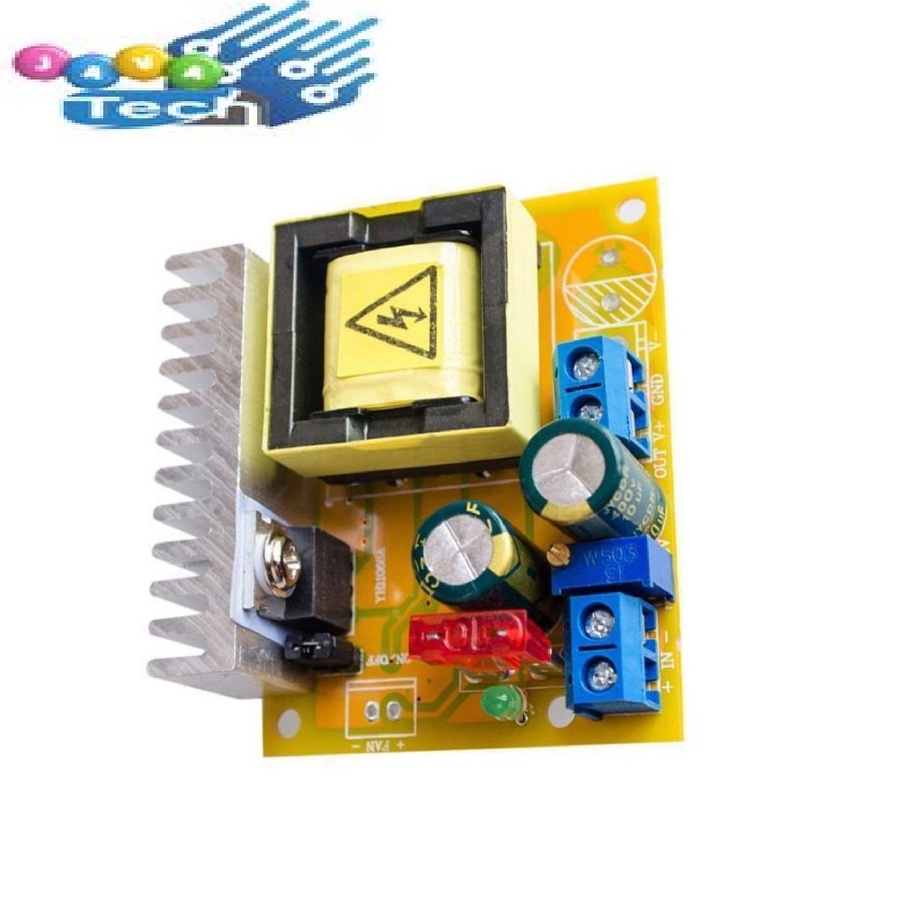

Gambar produk
