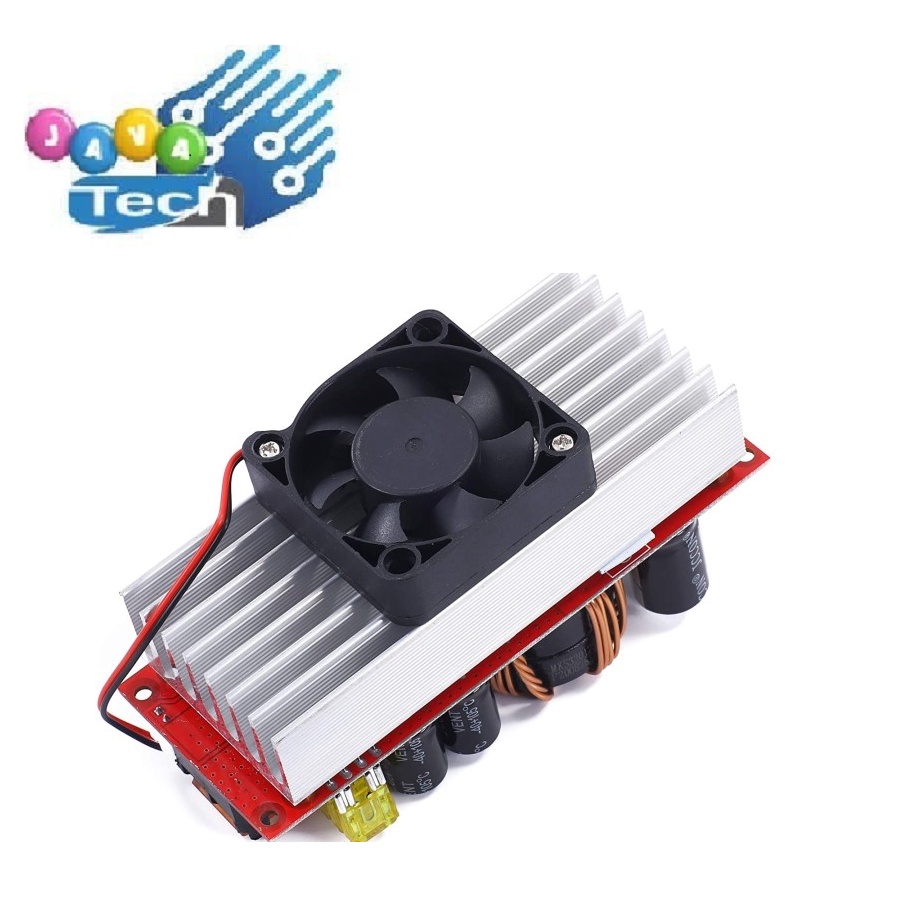

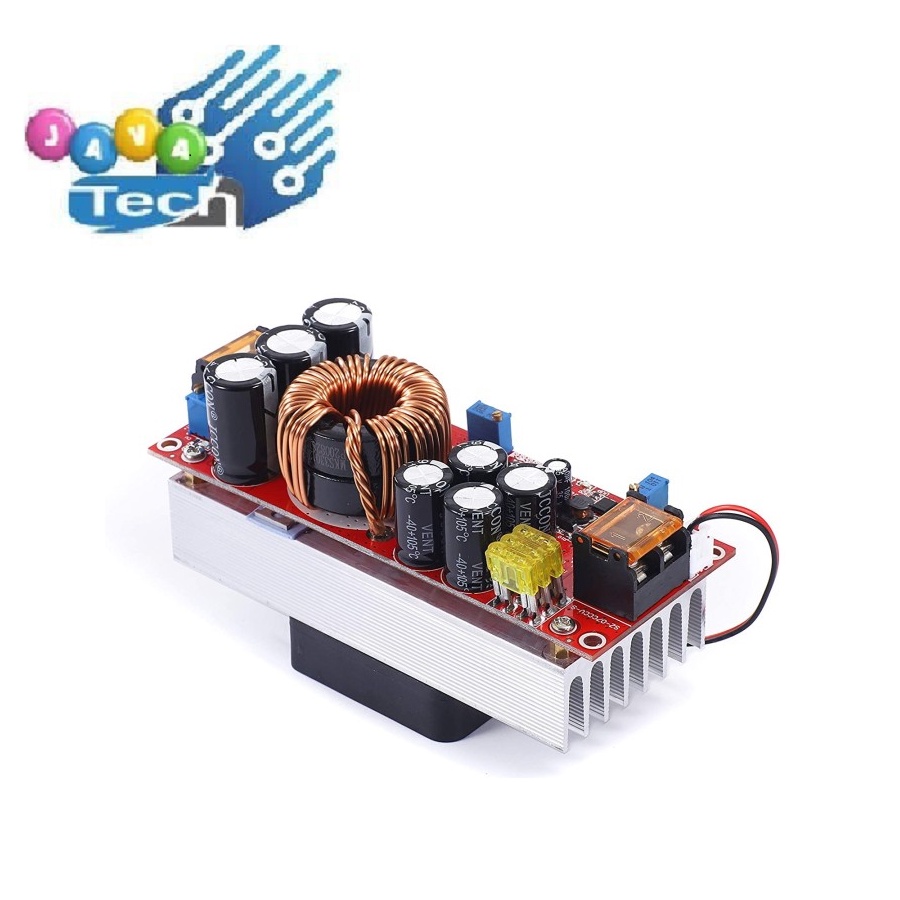

Modul Step Up High Power 1500W 30A DC-DC Boost Converter

Detail Modul Step Up High Power 1500W 30A DC-DC Boost Converter

Function: Long life non-insulated DC power converter module. High power and stable output, convert 10-60VDC to 12-97VDC High quality components ensure high conversion efficiency of up to 97%. Designed with a smart temperature control fan, it will automatically activate when the temperature reaches about 60 degrees Celsius and stop when the temperature is below 60 degrees Celsius.
Widely used for high power solar street light driving, various LED lighting CV drive, power supply for car and mobile devices, DIY adjustable CV power supply, solar power charging, various battery charging.



Specifications:
Name: 1500W Step-Up Constant Current Module
Type: Non-insulated step-up module (BOOST)
Input Voltage: DC 10V to 60V
Input Current: 10V-30V input voltage, maximum current is 35A-40A. Input voltage of 31-60V, maximum current is 30A-35A.
Static current: 15 mA (converting 12 V to 20 V, the static current will increase)
Output Voltage: 12 - 97 V continuous adjustment (not for use with buck pressure).
Output current: 22A (relating to the voltage difference between input and output, the higher the voltage difference, the smaller the output current. If the current is above 15A, please increase the heat dissipation.)
Constant Current Range: 0.8-22A (+/- 0.3A)
Reverse input protection: Yes (150

Gambar produk
