Modul Step Up Dc-Dc Sx1308 DC 2a

Detail Modul Step Up Dc-Dc Sx1308 DC 2a

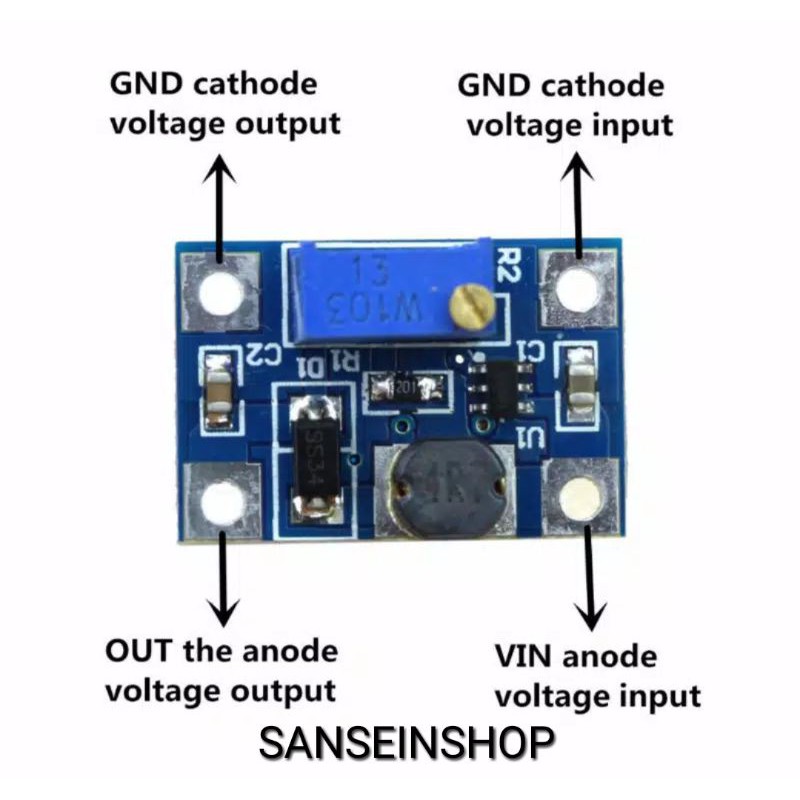

DC-DC SX1308 Step-UP Adjustable Power Module Step Up Boost Converter 2-24V to 2-28V 2A

Note: If the voltage does not change, turn it counterclockwise 20 times for normal use (if the rotation direction is wrong, the product will burn)

LC SX1308 booster module carrying SX1308 chip, its packagnig is small, and high efficiency. The output power can be adjust, maximum can arrive 28V and its interior integrate the lowest RDS internal resistance 100m metal oxide semiconductor field effect transistor (mosfet), which can realize large current output of up to 2A. It widely used in 3G network products, digital products, mobile power supply,battery power supply, equipment, etc.

Oscillation frequency 1.2MHz

efficiency is as high as 95%

Circuit has short circuit protection, overheating protection function

10k to adjust potentiometer, adjust the output voltage

Maximum input voltage: DC 2-24V

Maximum output voltage: DC 2-28V

Switching frequency: 1.2MHz

Maximum current output: 2A
