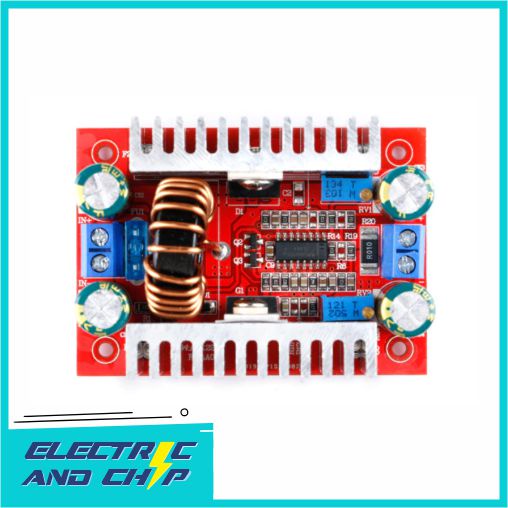

Modul Step Up DC-DC 400W 15A Step-Up Boost Converter 8.5-50V to 10-60V

Detail Modul Step Up DC-DC 400W 15A Step-Up Boost Converter 8.5-50V to 10-60V

Specification:
Module name: 400W boost constant current module
Module properties: non-isolated step-up module (BOOST)
Input voltage: DC 8.5 -50V
Input current: 15A (MAX) exceeds 8A please enhance heat dissipation
Quiescent current: 10mA (12V liter 20V, the output voltage, the higher the current will increase too quiet)
Output voltage: DC 10 -60V continuously adjustable
Constant] range: 0.2-12A
Temperature: -40 -85℃ (ambient temperature is too high, please enhance heat dissipation)
Operating frequency: 150KHz
Conversion efficiency: up to 96%
Overcurrent protection: yes
Input reverse polarity protection: no
Installation: 4 2.55mm screw holes
Connection method: Connection Output
Module size: 67mm X48mm X 28mm (LxWxH)

Output voltage/current adjustment method:
1. Adjust the "CV-ADJ" potentiometer, according to your battery or LED, set the output voltage to the voltage value you need. For example, the voltage of 10 LED strings is adjusted to 37V. (Turn up the voltage counterclockwise and turn down the voltage clockwise)
2. Adjust the "CC-ADJ" potentiometer counterclockwise for about 30 turns, set the output current to the minimum, connect the LED, and adjust the RV2 potentiometer to the current you need. For battery charging, after the battery is discharged, connect to the output and adjust RV2 to the current you need. (When charging, you must use the discharged battery to adjust it, because the battery has more power. More, the lower the charging current.) (Turn down the counterclockwise current and turn up the clockwise current)
