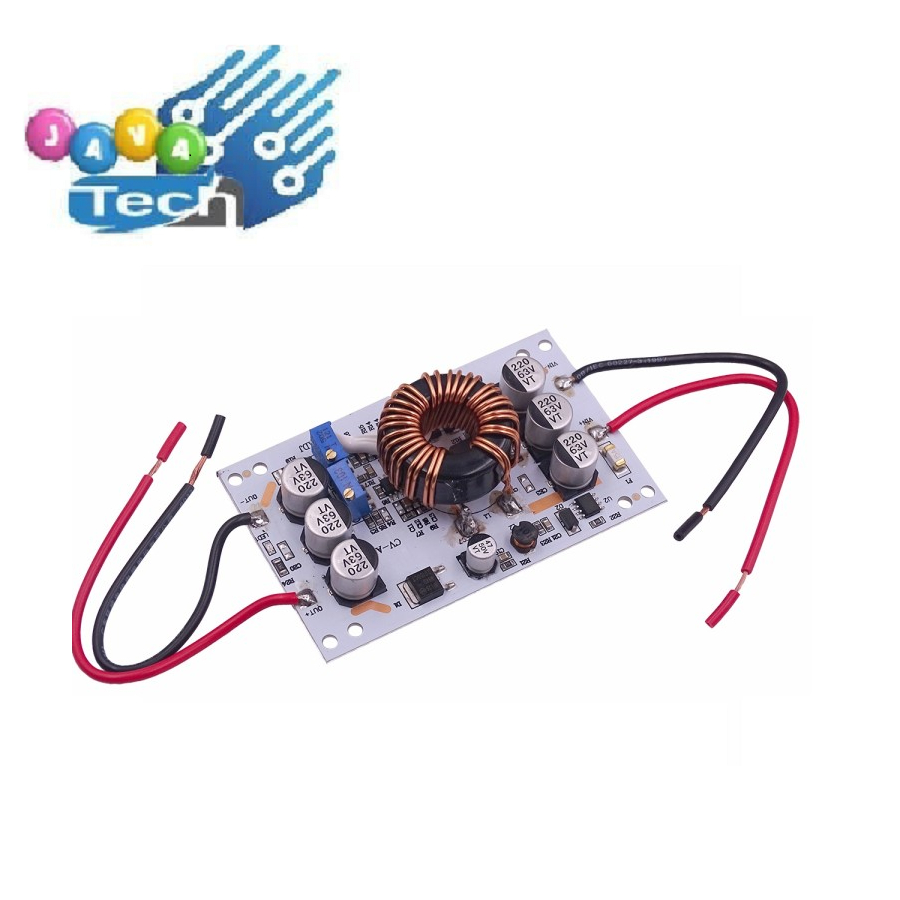

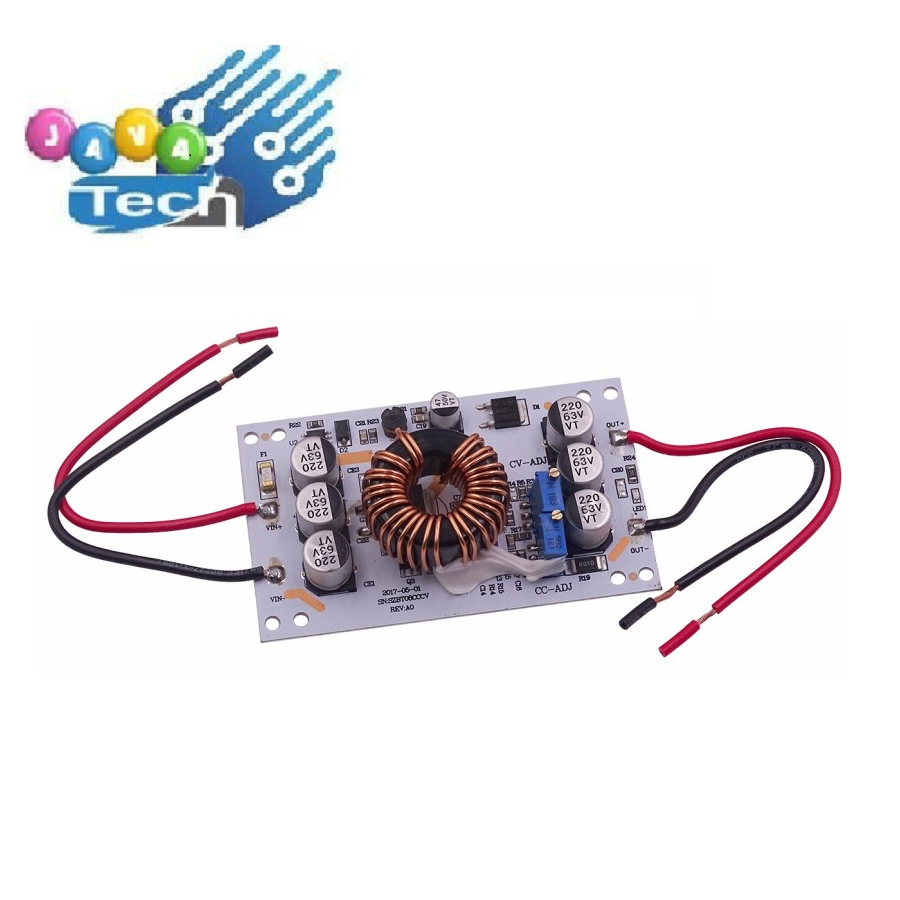

Detail Modul Step Up 600W 10A CC-CV Boost Converter DC 10-60V
Parameter:- Product Name:600W Boost Power Module
- Input Voltage:DC 10V~60V
- Input Current:10A(Max)
- Static Working Current:10mA
- Output Voltage:DC 12V~60V
- Output Current:10A
- Constant Current Range:0.2A~10A
- Working Frequency:150KHz
- Conversion Efficiency:92%~96%
- Work Temperature:-40℃~85℃
- Work Humidity:5%~95%RH
- Size:85*52*21mm

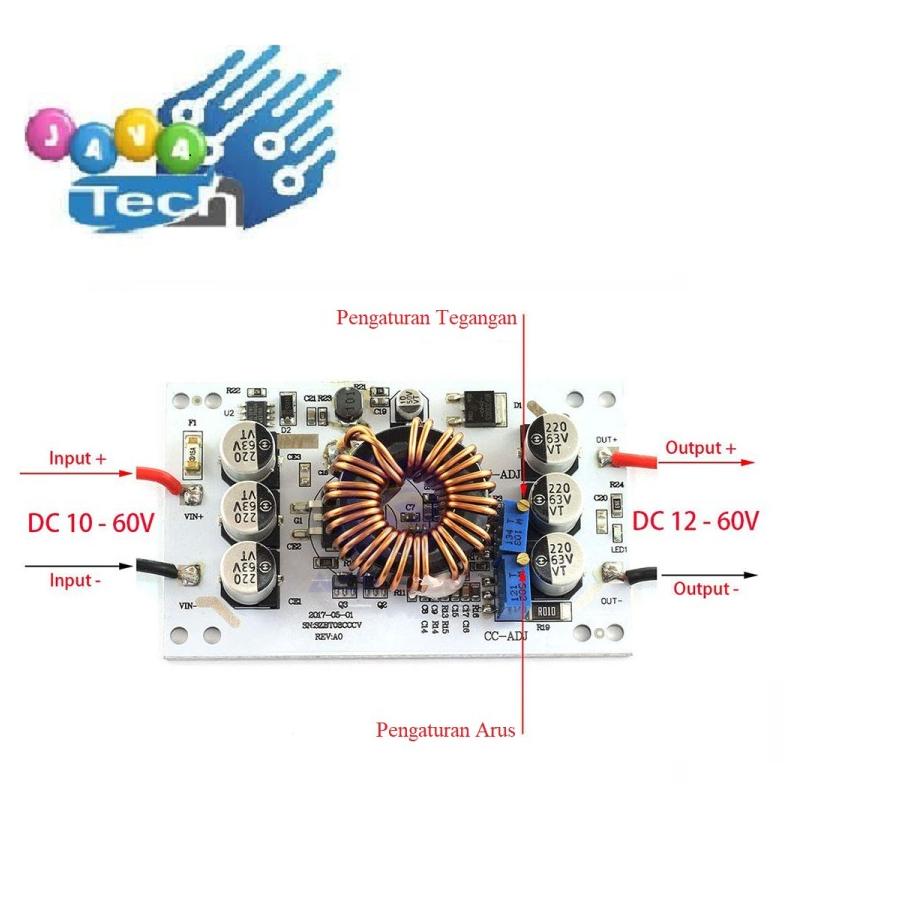

Output Voltage Adjustment:
- Adjust the CV-ADJ potentiometer,according to your battery or LED,set the output voltage to the voltage value you need.
- Turn the voltage down clockwise,and turn it up counterclockwise.
Output Current Adjustment:
- Adjust the CC-ADJ potentiometer clockwise about 20 turns,set the output current to the minimum,connect the LED,and adjust the CC-ADJ potentiometer to the current you need.
- For battery charging,after the battery is discharged,connect to the output and adjust the CC-ADJ to the current you need.(When charging,you must use the discharged battery to adjust,because the battery is left The more power,the lower the charging current.)
- Please do not adjust the current in a short-circuit mode.The circuit structure of the booster module cannot be adjusted in a short-circuit mode.
Instructions for Use:
- Constant voltage adjustable range:DC12-60V (clockwise to decrease,counterclockwise to increase)
- Constant current adjustable range:0.2A-10A (clockwise to decrease,counterclockwise to increase)

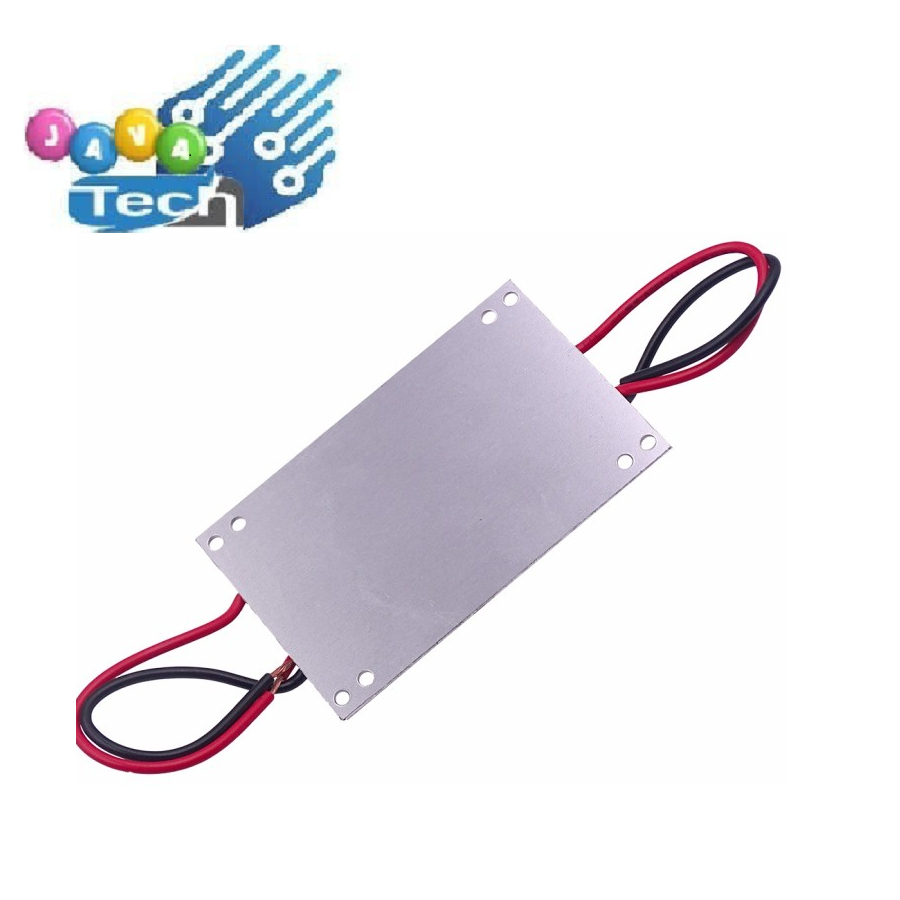

- When the input current exceeds 6A,heat dissipation needs to be strengthened (the aluminum substrate is attached to the flat metal part).
- The input voltage cannot be lower than 10V and exceed 60V.
- The maximum input current cannot exceed 10A,and the power cannot exceed 600W.
- When using,it must be ensured that the input voltage is lower than the output voltage by more than 2V.
- Before connecting the load,please adjust the required voltage and current when there is no load (the no-load voltage should be increased by 3-5V when the current is constant).
