Modul Step Up 150W Boost Converter DC-DC 10-32V to 12-35V Module

Detail Modul Step Up 150W Boost Converter DC-DC 10-32V to 12-35V Module

Modul Step Up 150W Boost Converter DC-DC 10-32V to 12-35V Module
Power Maximum 150 Watt

Spesifikasi :
Input voltage :10-32V ( Min. 4A)
Output voltage: 12-35V (adjustable)
Output Current: 10A (MAX)
Input Current: 16A (MAX) (Please enhance heat dissipation if more than 10A)
Output power: natural cooling 100W (MAX), enhance heat dissipation 150W (MAX)
Easy to drive 65W 90W dual-core notebook.
Use a 12V battery drive 19V 3.42A notebook, the module temperature about 45c
Conversion efficiency: 94% (measured at Input 16V, output 19V 2.5A)
Output Ripple: 2% (MAX) 20M-bandwidth
Operating Temperature: Industrial (-40c to +85c) (ambient temperature exceeds 40c, lower power use, or to enhance heat dissipation)
Full load temperature rise: 45c
No-load current: 25mA typical
Voltage regulation: 0.5%
Dynamic response speed: 5% 200uS
Short circuit protection: None (Please Install fuses and protection circuits at Input port.)
Input Reverse Polarity Protection: None (Please Series diode at the input port.)

Cara Pasang :
Hubungkan IN+ Ke + Batteryi atau Adaptor dan IN- Ke - Baterry, Adaptor atau Aki. Hubungkan Out+ Ke + Led dan Out- Ke - Led.

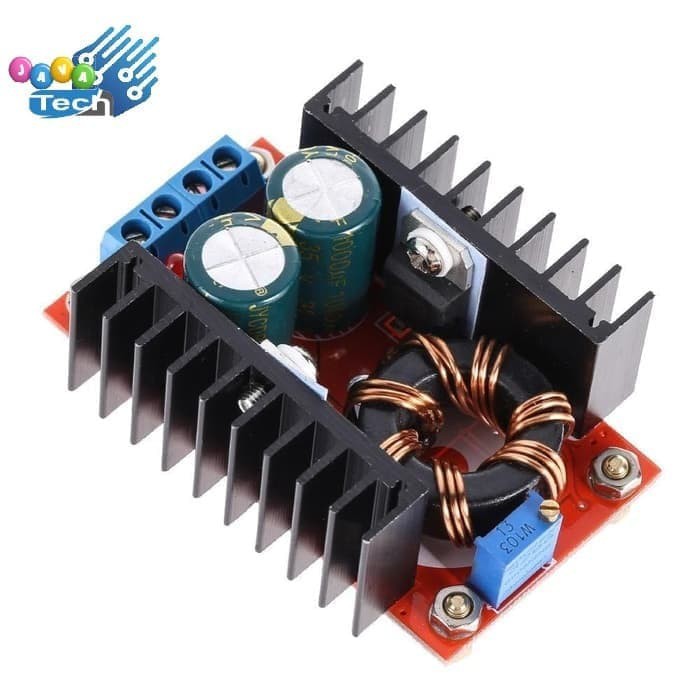

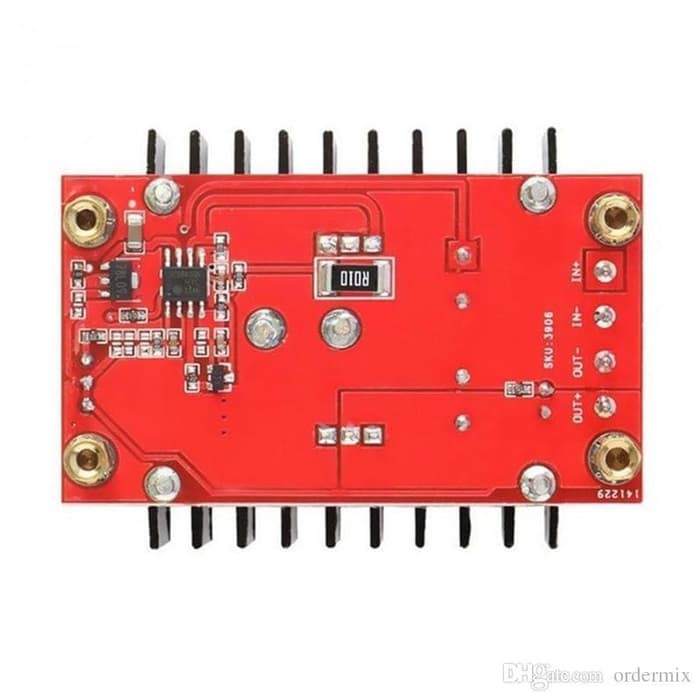

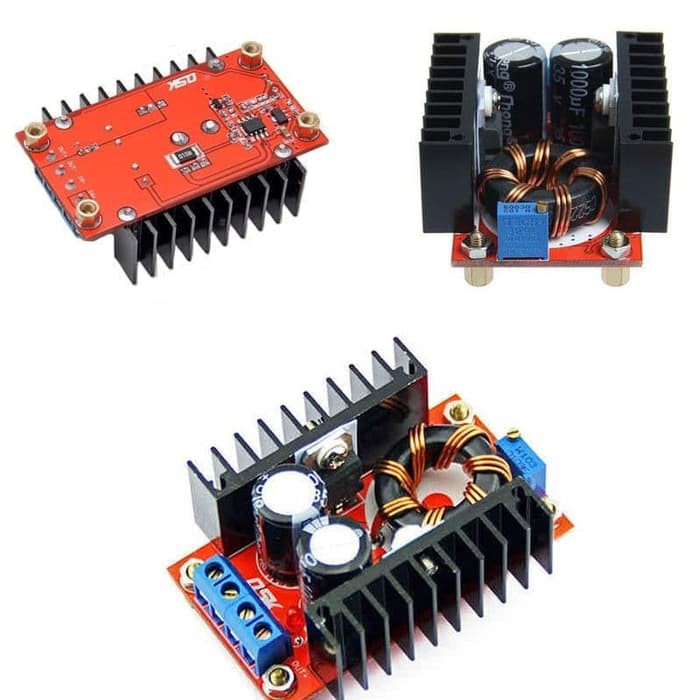

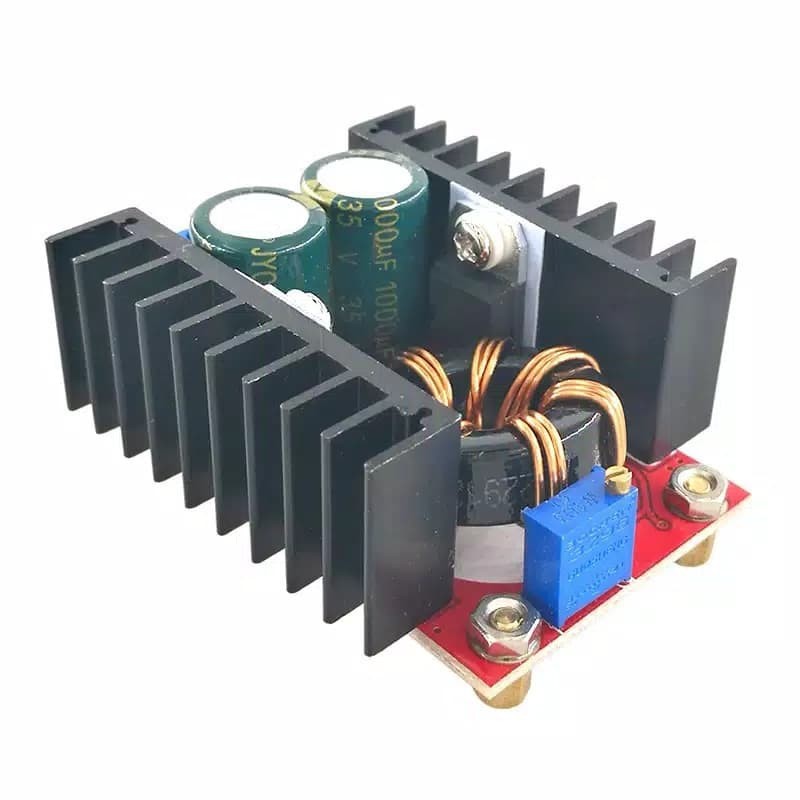

Gambar produk
