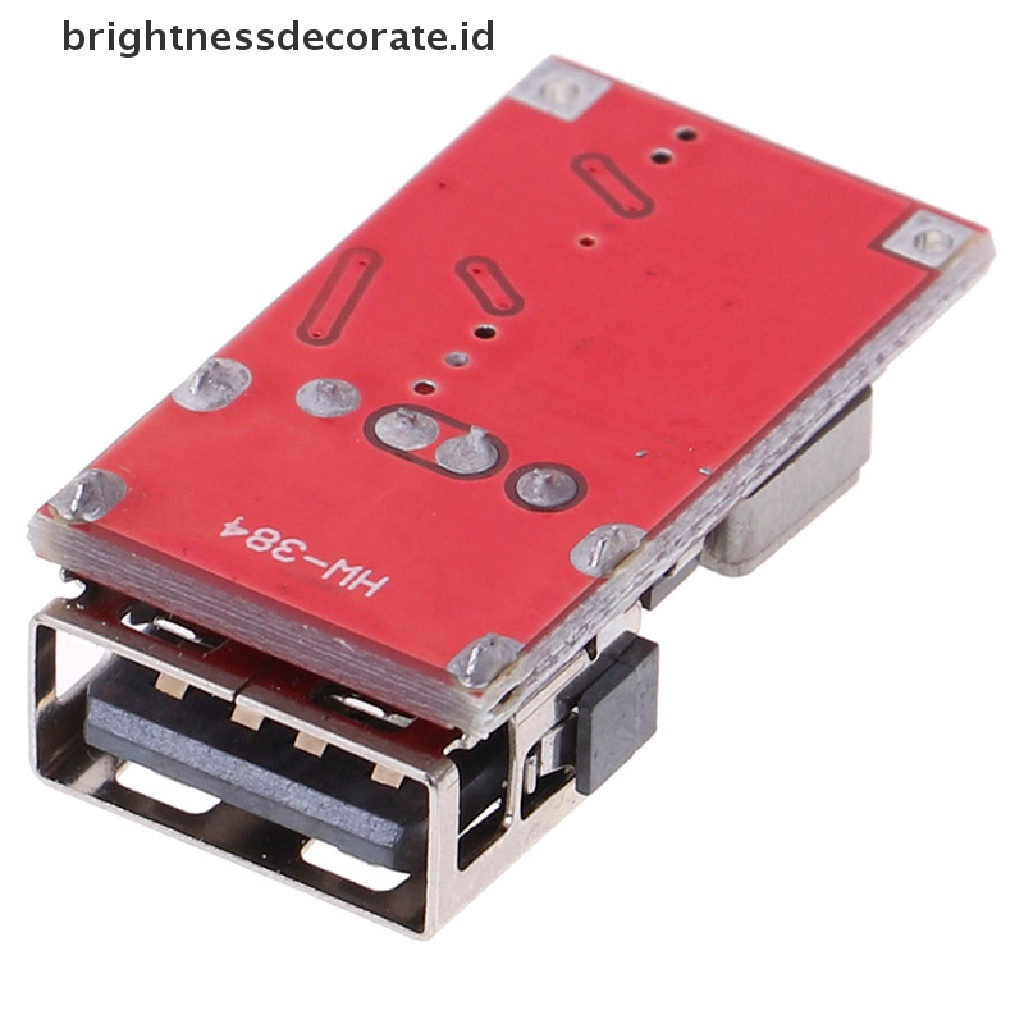

Modul Step Down Power Dc 6-24v 12v / 24v To 5v 3a Output Charger Usb

Perlengkapan Rumah > Perkakas > Perkakas Lainnya > Modul Step Down Power Dc 6-24v 12v / 24v To 5v 3a Output Charger Usb
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail Modul Step Down Power Dc 6-24v 12v / 24v To 5v 3a Output Charger Usb

Introduction:
Module Properties: non-isolated buck module (BUCK) synchronous rectification;Input voltage: DC 6-24V;Output voltage: 5.1-5.2V;Output current: 3A MAX;
Conversion efficiency: can up to 97.5% (6.5V step down to 5V 0.7A) (after short reverse protection and fuses test value);Switch frequency: 500KHz;
Output ripple: 10mV around (12V to 5V3A) 20M bandwidth;Output indicator: Output voltage indicator is red;
Operating temperature: Industrial grade (-40 Celsuis to + 85 Celsuis) (the higher the ambient temperature, the lower the output power);
Output overvoltage protection: Yes, input 1.5A fuse, output 5V have 300W TVS tube clamp protection.
Full load temperature: 30 Celsuis;Static current: 0.85 mA;Load regulation: ± 1%; Voltage Regulation: ± 0.5%;Dynamic response speed: 5% 200uS;
Output short circuit protection: Yes, but please do not short circuit for a long time;Input reverse polarity protection: Yes, there is reverse polarity protection diode;
Connection mode: Welding;Input mode: Welding;Output mode: USB;
Size: 26.4 (long) * 15 (wide) * 7.4 (high) mm
Include:1Pcs 5V USB Module
