MODUL STEP DOWN FAST CHARGING QUICK CHARGE IP6505 QC 3.0 5V 9V 12V 3A MODULE

Detail MODUL STEP DOWN FAST CHARGING QUICK CHARGE IP6505 QC 3.0 5V 9V 12V 3A MODULE

PSU-0081
========

Deskripsi:
======================
Hallo gan, lagi mau ngerakit atau ngebuat charger. nih kita siapin modul fast
charging dengan daya maksimal 24w loh gan, dapat menyesuaikan dengan HP yang mau
di charge.

Modul ini juga sudah dilengkapi dengan berbagai protection jadi dijamin aman
tanpa takut overheat yahh
Yuk di order sebelum kehabisan :))

Spesifikasi:
======================
Input voltage range: 9.5V-32V
Output voltage: default 5V, automatically adjust between 3-12V after triggering
fast charge
Output power: maximum 24W (5V@3.4A, 9V@2.5A, 12V@2A)
Output voltage cable compensation function
Conversion efficiency: 90%-97%
Support multiple fast charging protocols
Input overvoltage and undervoltage protection
Input overcurrent protection
Output over current, short circuit protection
Whole machine over-temperature protection
Size: 35*17*9.5mm

Support fast charge protocol
==================
BC1.2, Apple, Samsung agreement
Qualcomm QC2.0 and 3.0
MTK PE1.1/PE2.0
Huawei Quick Charge Agreement AFC
Spreadtrum Quick Charge Protocol SFCP

Paket:
==================
1 x DC STEP DOWN MODULE 9.5V-32V TO QC3.0 FAST CHARGING 24W SINGLE USB

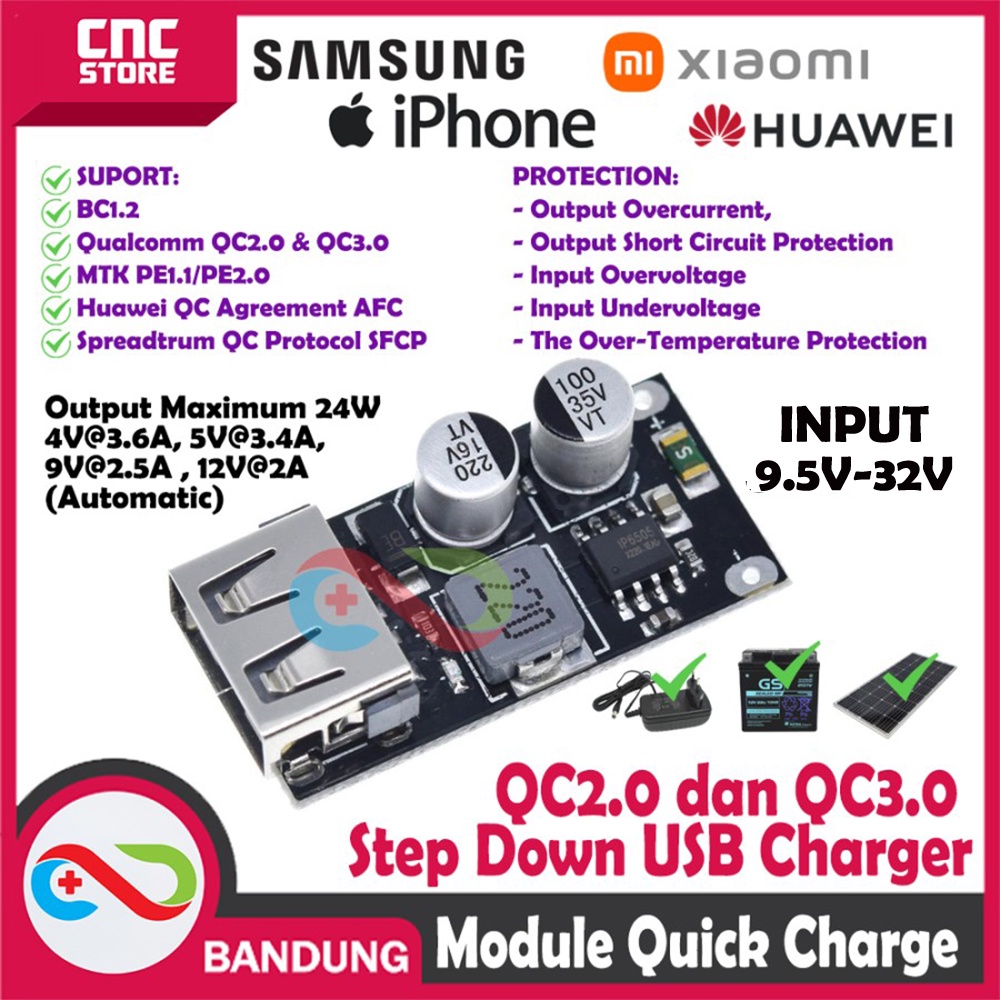

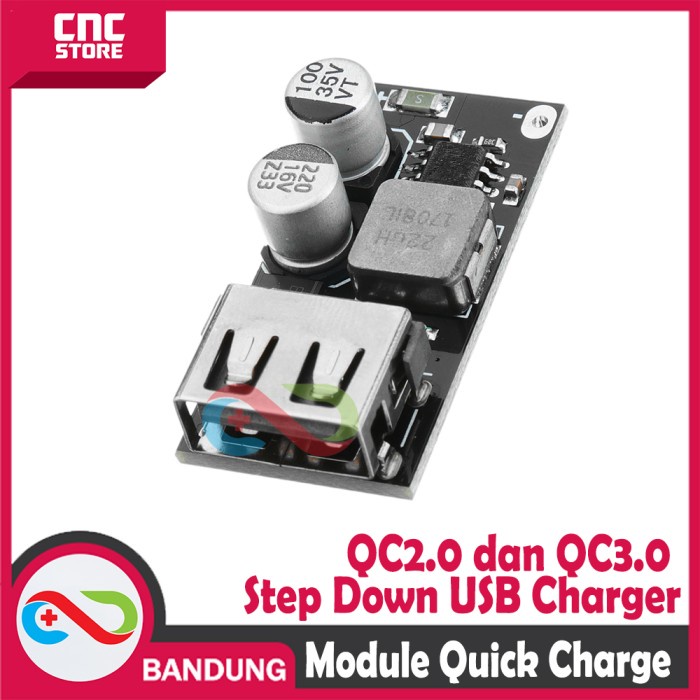

Gambar produk
