Detail Modul Step Down DC-DC 1W LED Driver Modul 350mA 5-35V

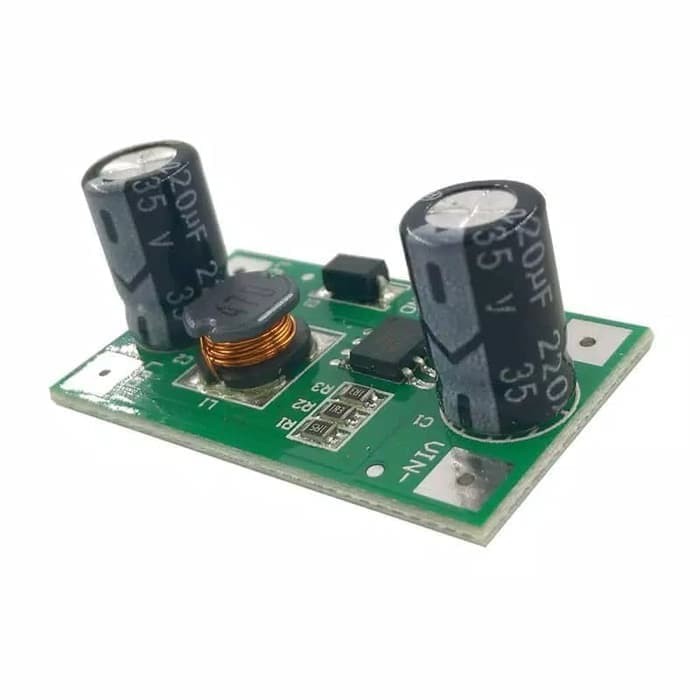

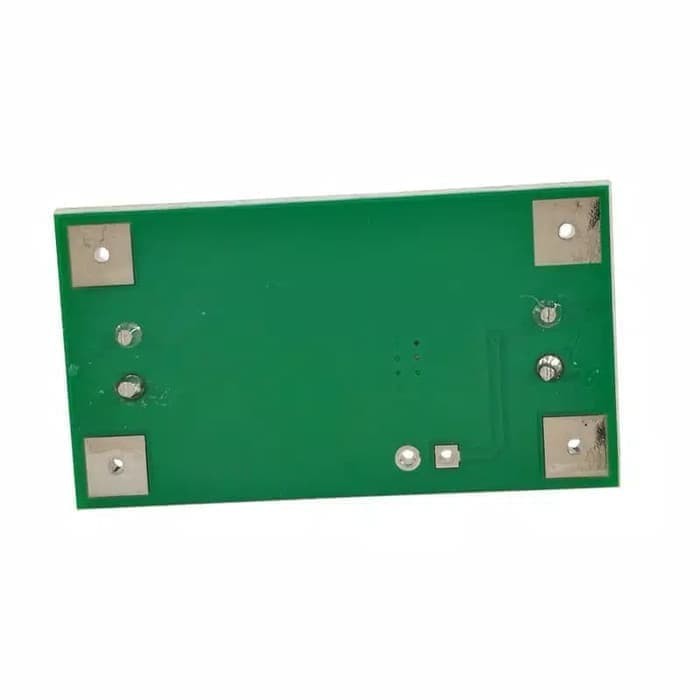

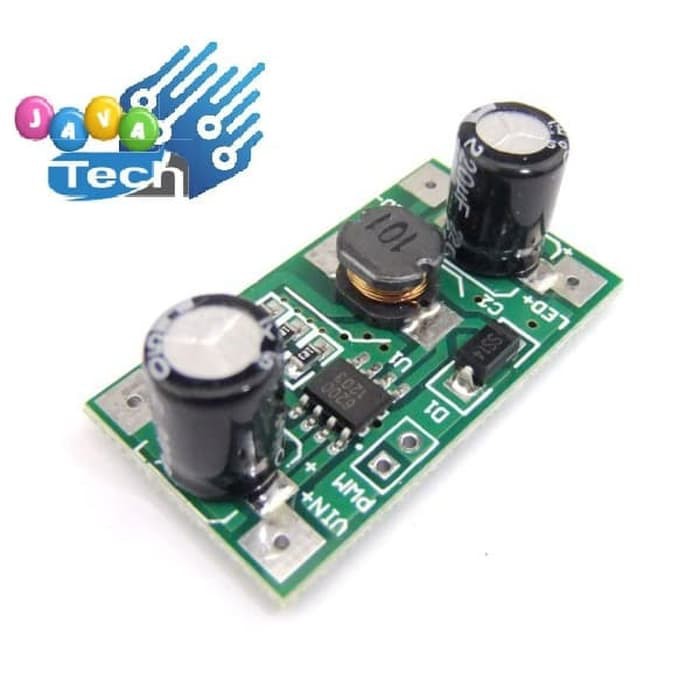

Modul Step Down DC-DC 1W LED Driver Modul 350mA 5-35V1W LED Driver 350mA PWM Light Dimmer DC-DC Step Down Module 5-35V Hot sale
5-35V input range
Output 350mA±20mA drive 1-10 pieces 1W LED
PWM dimming.
Buck mode LED guarantee total pressure is lower than the input supply voltage 2-3V to work.

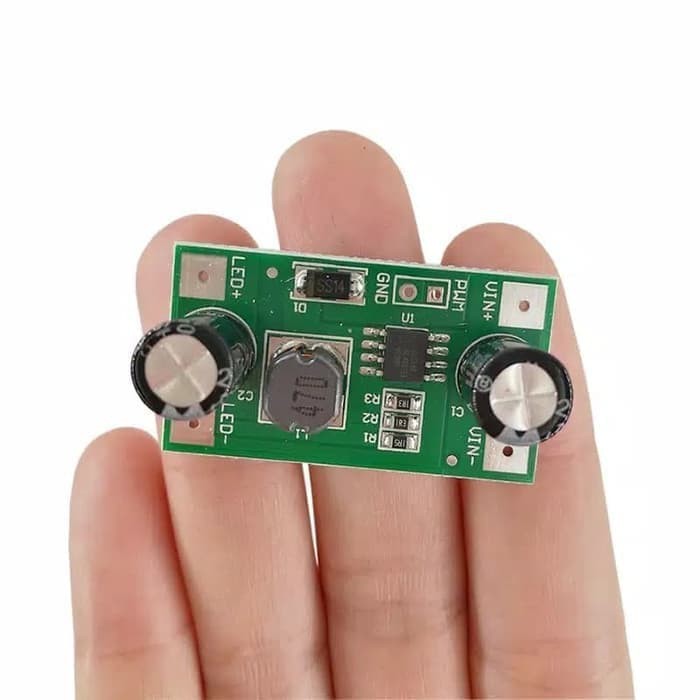

Ultra-small size design (length 3.6cm * Width 2cm), low noise, safety features.
High-efficiency, low power consumption, stable chip for energy saving and environmental protection projects.
Constant output current, low ripple, improve the LED light stability and lifetime.
Overload, short circuit, overcurrent protection, to ensure the supply security.
Wide input voltage, VIN and VIN- are the positive and negative power input, respectively.
Size:(L*W*H)3.58*2.00*1.40cm/1.41"*0.79"*0.55"
