FITUR DAN SPESIFIKASI : Operating Frequency Band 2.4 GHz - 2.48 GHz unlicensed ISM Band Bluetooth Specification V2.1+EDR Output Power Class: Class 2 Operating Voltage: 3.3V Host Interface UART Dimension: 27mm (L) x 13 mm (W) x 2 mm (H) Storage temperature -40C +150C Supply voltage: VBAT -0.4V 5.6V Recommended Operating Conditions Operating Temperature Range -40C +150C Guaranteed RF Performance Range (a) -40C +150C Supply Voltage: VBAT 2.2V 4.2V (b)
APLIKASI : - Bluetooth printer - Bluetooth POS machine - Intelligent home control - Bluetooth wireless data transmission
**Input voltage with baseplate: 3.6V-6V(5v is good)**
KELENGKAPAN : - 1pcs SPP-C Bluetooth serial pass-through module wireless serial communication

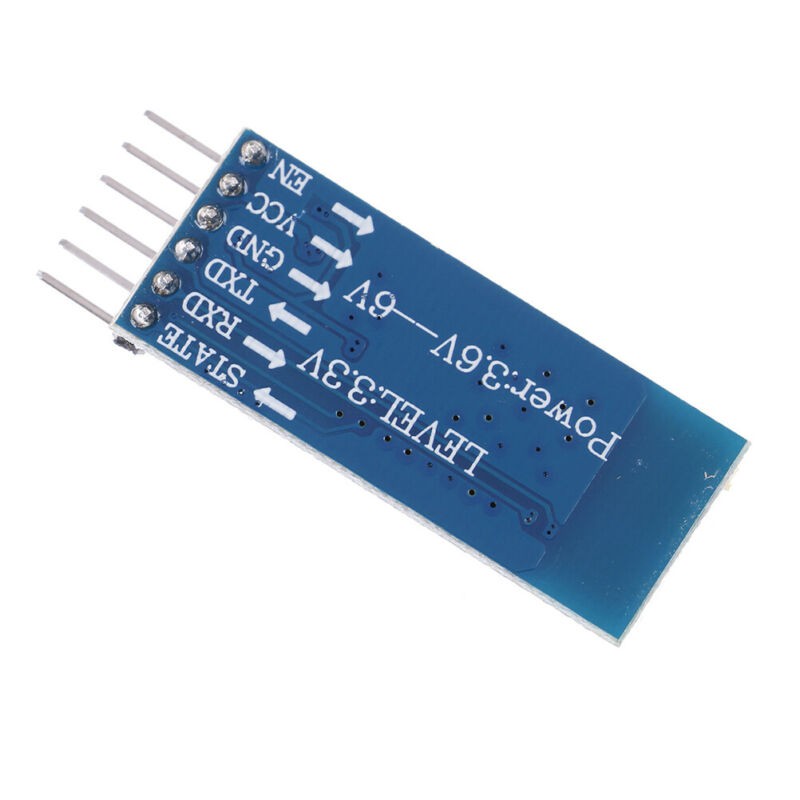

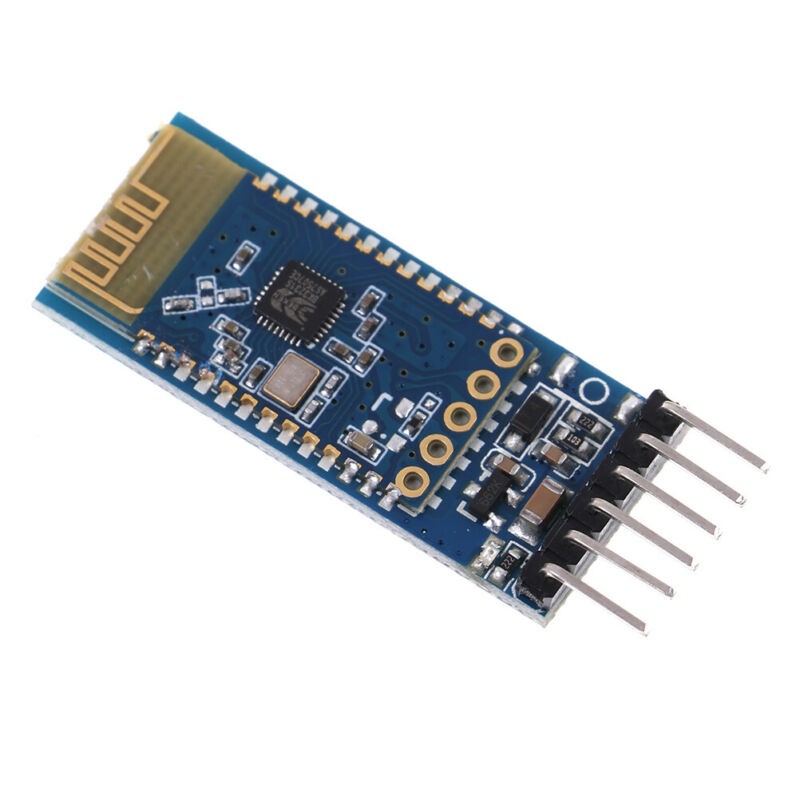

Gambar produk
Modul SPP-C SPPC Serial wireless BluetoothModul SPP-C SPPC Serial wireless Bluetooth
