Modul Speed Regulator Kecepatan Motor 5A 90W PWM 5-35V Controller Modul Speed

Perlengkapan Rumah > Perlengkapan Rumah Lainnya > Modul Speed Regulator Kecepatan Motor 5A 90W PWM 5-35V Controller Modul Speed
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:SanseinshopLihat semua produk Perlengkapan Rumah oleh Sanseinshop
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

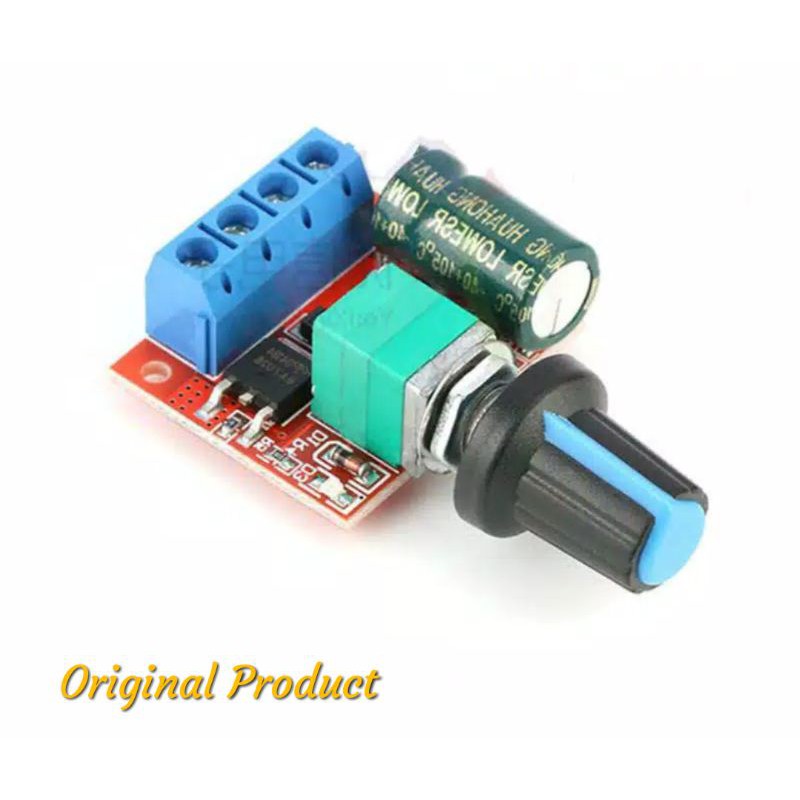

Detail Modul Speed Regulator Kecepatan Motor 5A 90W PWM 5-35V Controller Modul Speed

Mini 5A 90W PWM 5-28V DC-DC Motor Speed Controller Module Adjustable Speed Regulator Control Governor Switch
Specification:
Working voltage: DC5V-35V
Output current: 0-5A
Output power: 90W (maximum)
Static current: 7uA (standby state)
PWM duty ratio: 1%-100%
PWM frequency: 20KHz
Product size: 30mmx26mmx14mm/1.18x1.02x0.55''
Product weight: 14g
Paage size: 95mmx60mmx14mm/3.74x2.36x0.55''
Paing weight: 15g

Warm Tips:
1. DC motor governor input is DC, not directly connected to AC, otherwise it will burn out.
2. DC positive and negative terminals do not reverse, otherwise the governor may be damaged.
3. The motor can be divided into positive and negative directions. When the direction of operation is not consistent with the expectation, the direction can be changed by adjusting the line order.
4. Adjusting the potentiometer knob can change the duty cycle of the governor and change the speed of the motor

Gambar produk

Modul Speed Regulator Kecepatan Motor 5A 90W PWM 5-35V Controller Modul Speed
Modul Speed Regulator Kecepatan Motor 5A 90W PWM 5-35V Controller Modul Speed
