Detail Modul SG3525 PWM Signal Control Generator 100kHz-400kHz
Deskripsi Modul SG3525 PWM Signal Control Generator 100kHz-400kHz1, onboard SG3525A PWM control chip
2, on-board 78M05 regulator chip, providing a reliable reference voltage
3, onboard two precision adjustable resistors, R3 controls the duty cycle, R4 control frequency
4, on-board power indicator
5, the working voltage: 8 ~ 12V
6, board size: 30.8 (mm) x18 (mm)
7,Frequency:100~100kHz(adjustable)
8,Duty Ratio:0~100%(adjustable)
9,Range:5V

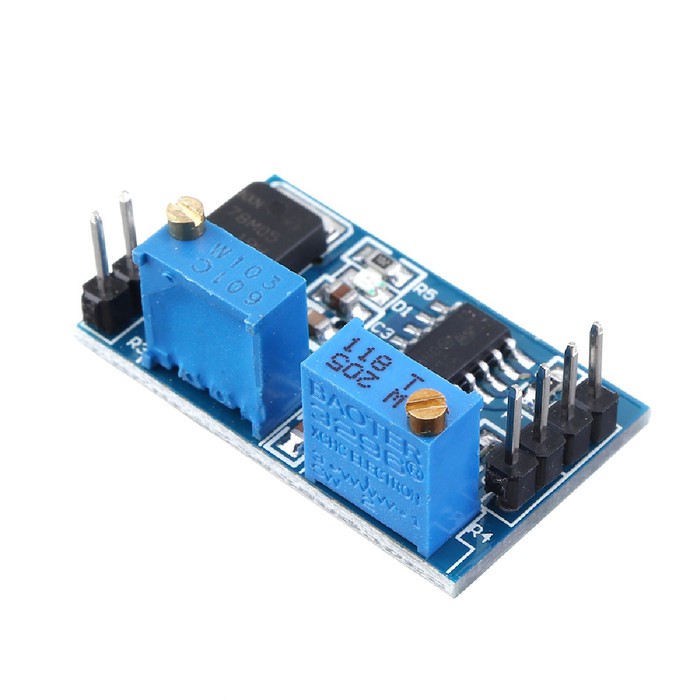

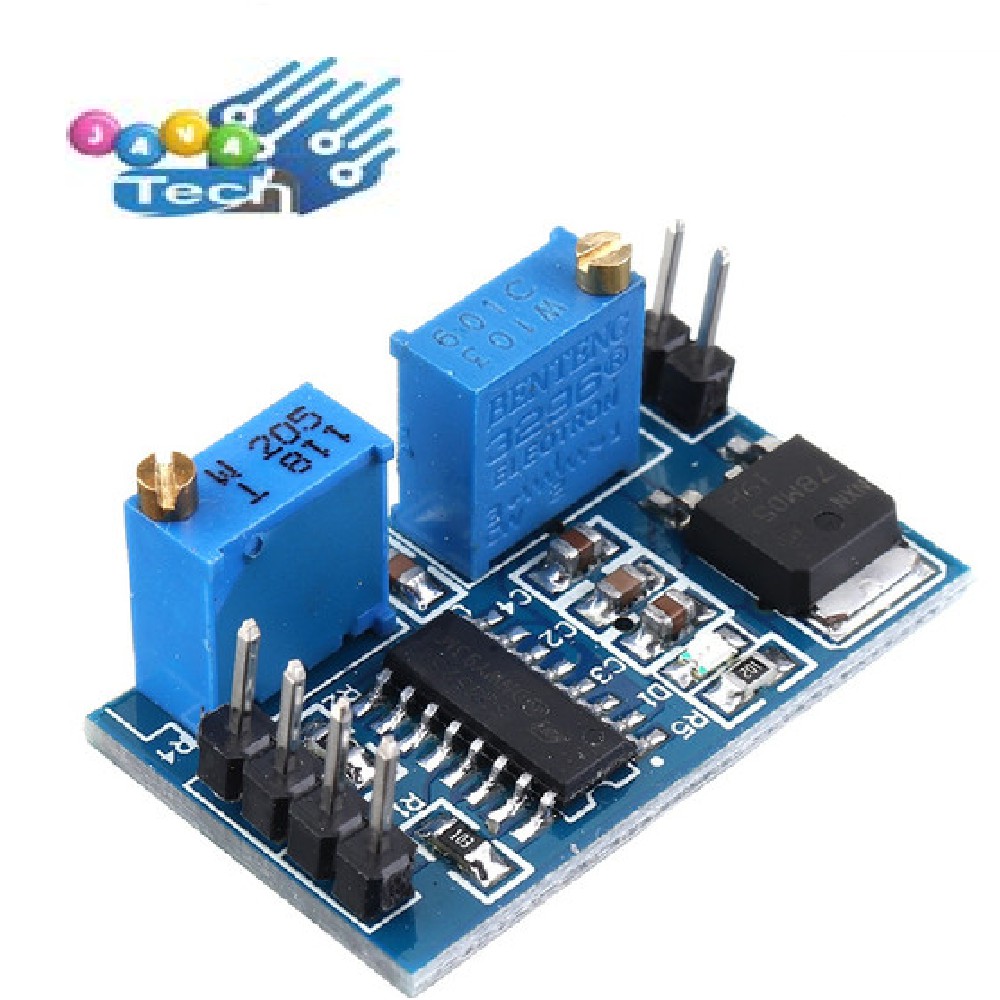

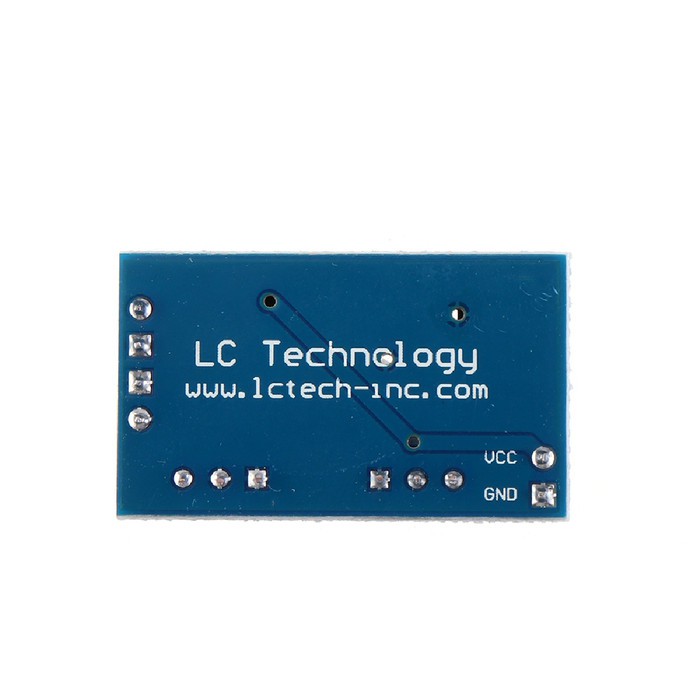

Gambar produk
