Detail Modul Sensor Ultraviolet DC 3.3V - 5V UV Sensor Module
Deskripsi Modul Sensor Ultraviolet DC 3.3V - 5V UV Sensor ModuleDescription: This module has a UVsensor, GUVA, which is a ideal device for detecting the amount of UV ray without wavelength filter, since it is UVray sensitive only. In other word, the wavelengths of 365nm(UV-A)and 320nm(UV-B) are the cut-off thresholds of GUVA. Output voltage boosts along with the ambient ultraviolet intensity increases with onboard amplifier circuit with adjustable amplification factor.
Specifications:
working voltage 3.3V-5V
output voltage DC0-1V
Measuring accuracy ±1UV INDEX
Wavelength 200-375nm
Operating temperature -20°-85°
Size 19.8x15mm
Applications:
Ultraviolet tester
Outdoor ultraviolet detector
Germicidal lamp

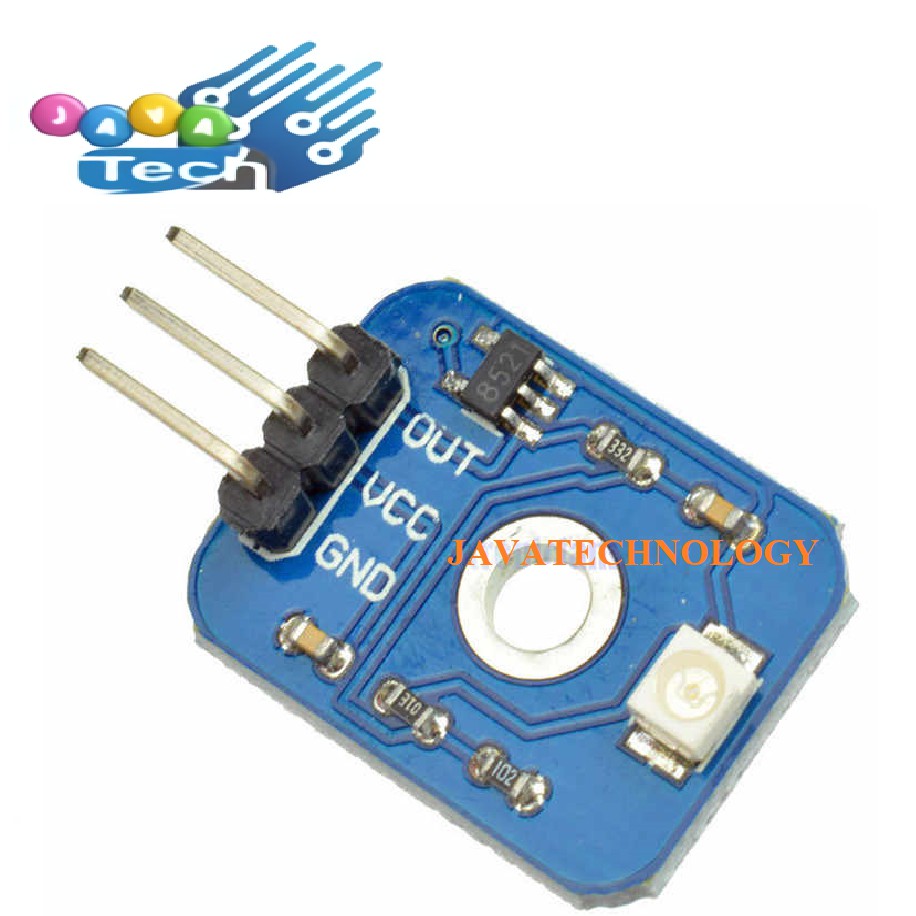

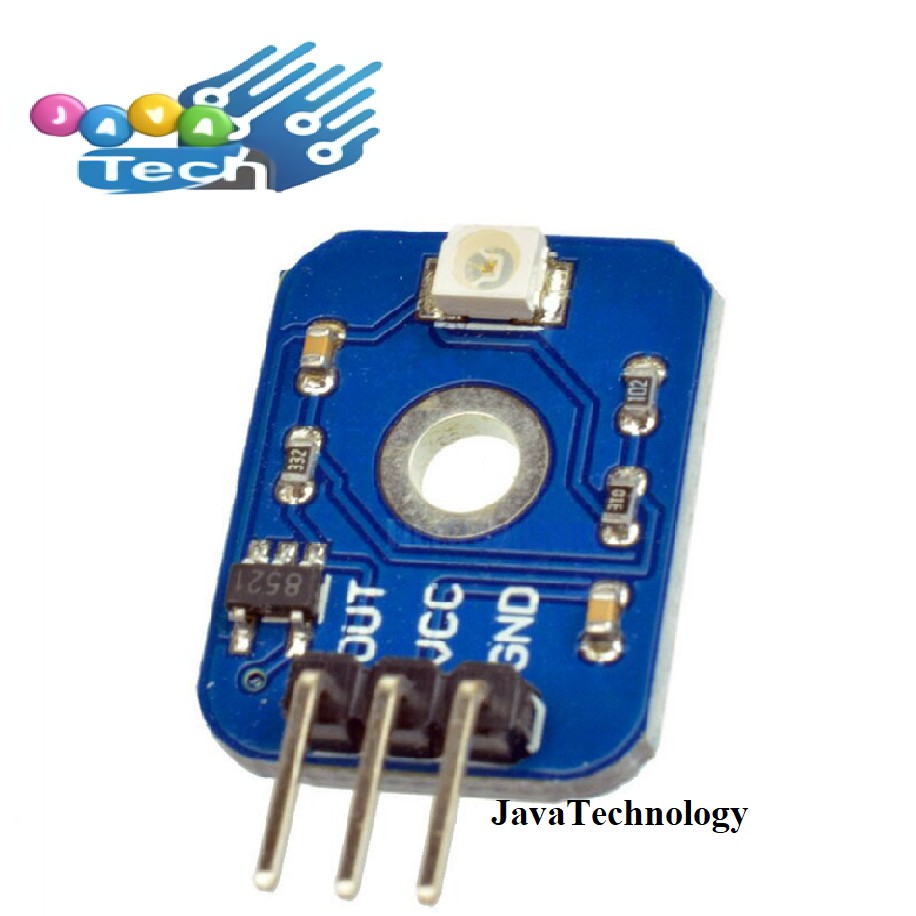

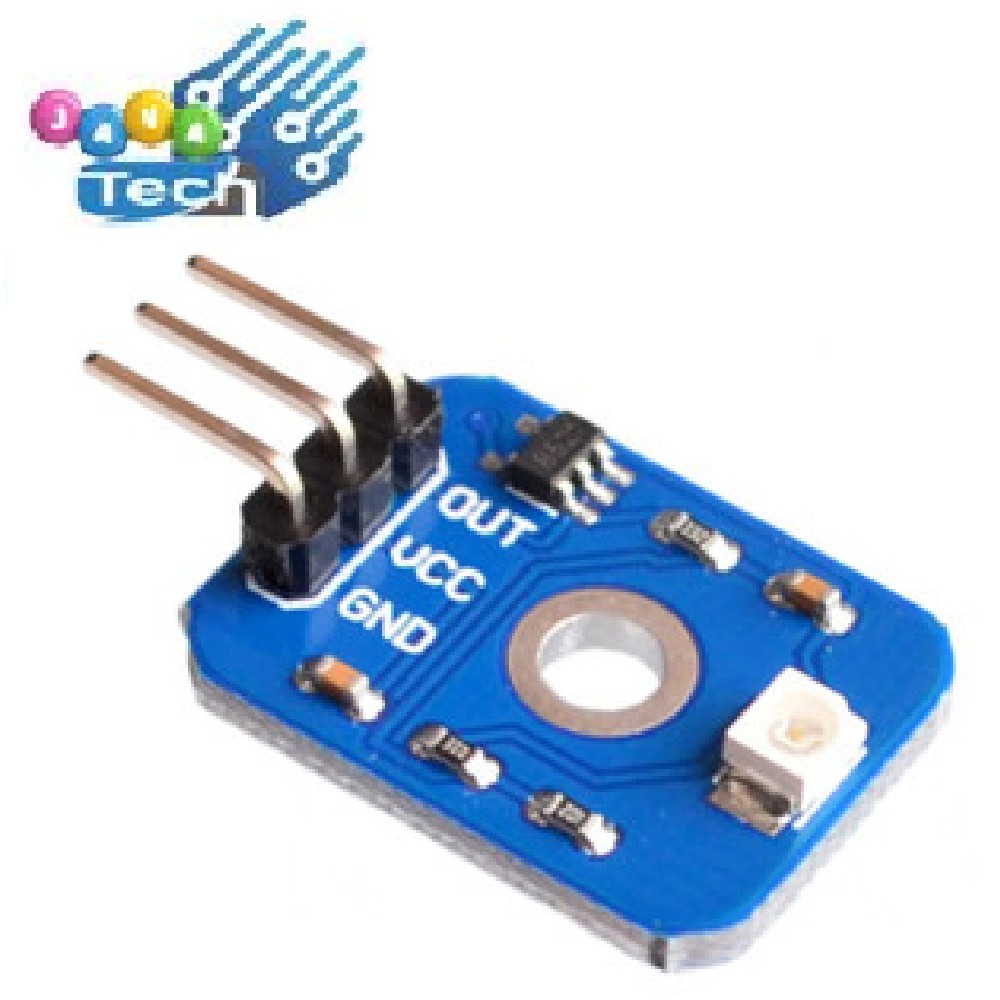

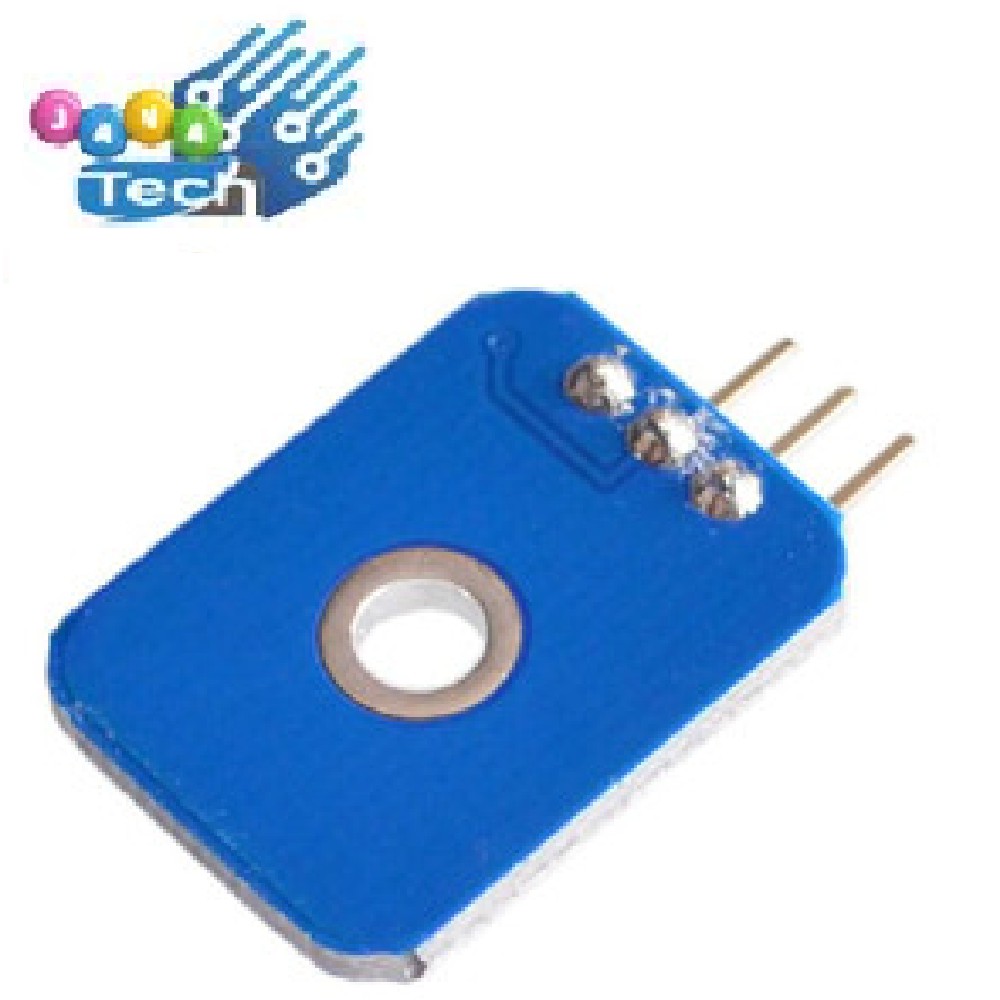

Gambar produk
