Modul RTC PCF8563 I2C Protocol CMOS Real Time Clock Board

Detail Modul RTC PCF8563 I2C Protocol CMOS Real Time Clock Board

Deskripsi Modul RTC PCF8563 I2C Protocol CMOS Real Time Clock Board
The PCF8563 is a CMOS1 Real-Time Clock (RTC) and calendar optimized for low power
consumption. A programmable clock output, interrupt output, and voltage-low detector are
also provided. All addresses and data are transferred serially via a two-line bidirectional
I2C-bus. Maximum bus speed is 400 kbit/s. The register address is incremented
automatically after each written or read data byte

- Provides year, month, day, weekday, hours, minutes, and seconds based on a
32.768 kHz quartz crystal
- Century flag
- Clock operating voltage: 1.0 V to 5.5 V at room temperature
- Low backup current; typical 0.25 A at VDD = 3.0 V and Tamb = 25 C
- 400 kHz two-wire I2C-bus interface (at VDD = 1.8 V to 5.5 V)
- Programmable clock output for peripheral devices (32.768 kHz, 1.024 kHz, 32 Hz, and
1 Hz)
- Alarm and timer functions
- Integrated oscillator capacitor
- Internal Power-On Reset (POR)
- I2C-bus slave address: read A3h and write A2h
- Open-drain interrupt pin

Aplications
- Mobile telephones
- Portable instruments
- Electronic metering
- Battery powered products

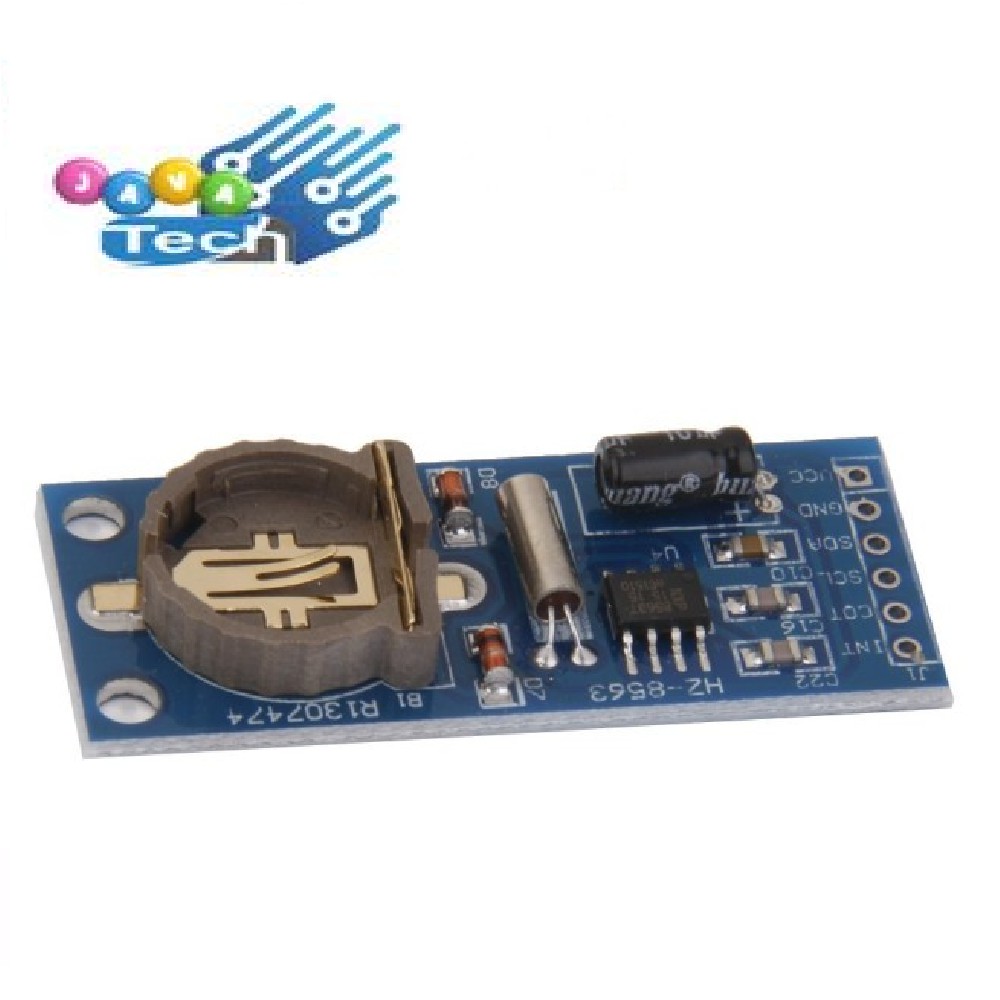

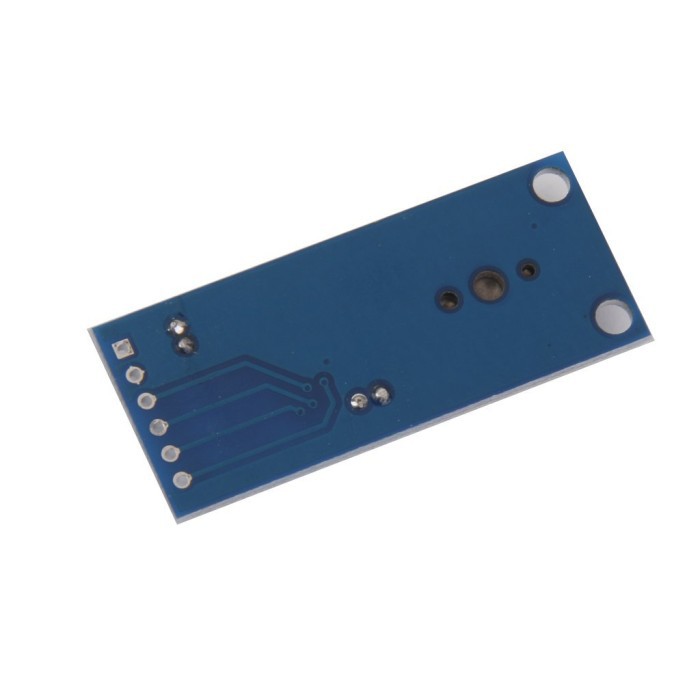

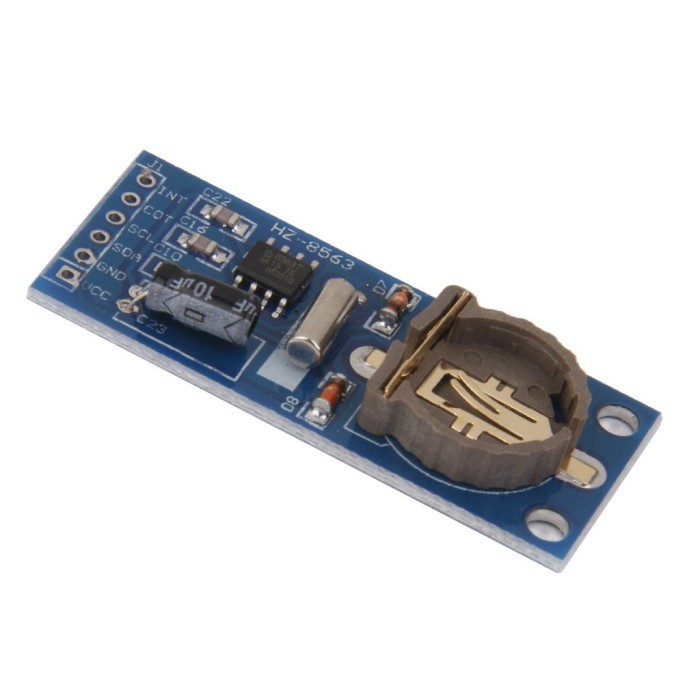

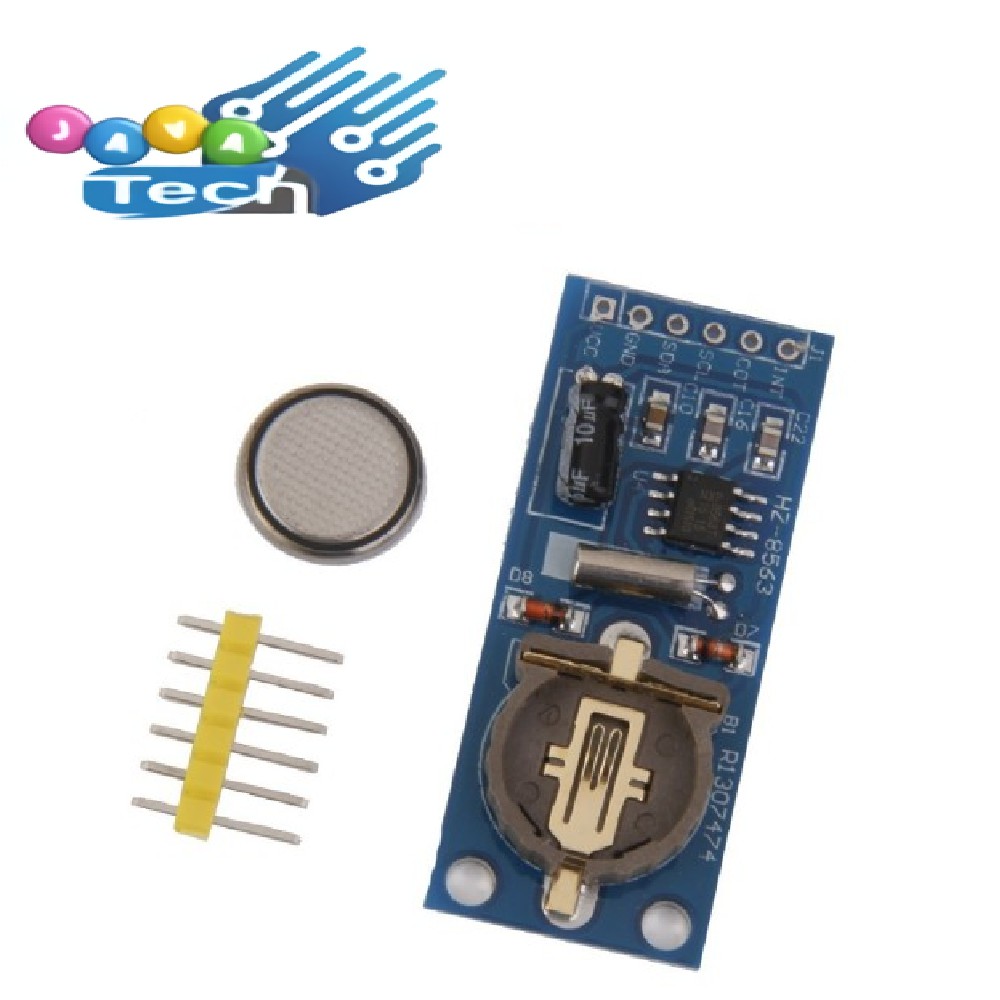

Gambar produk
