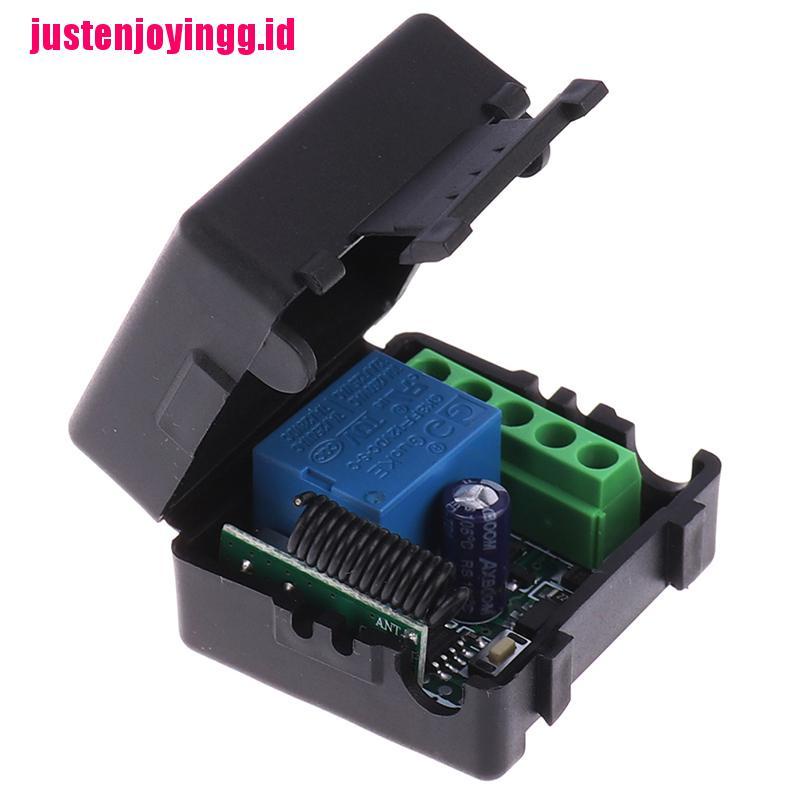

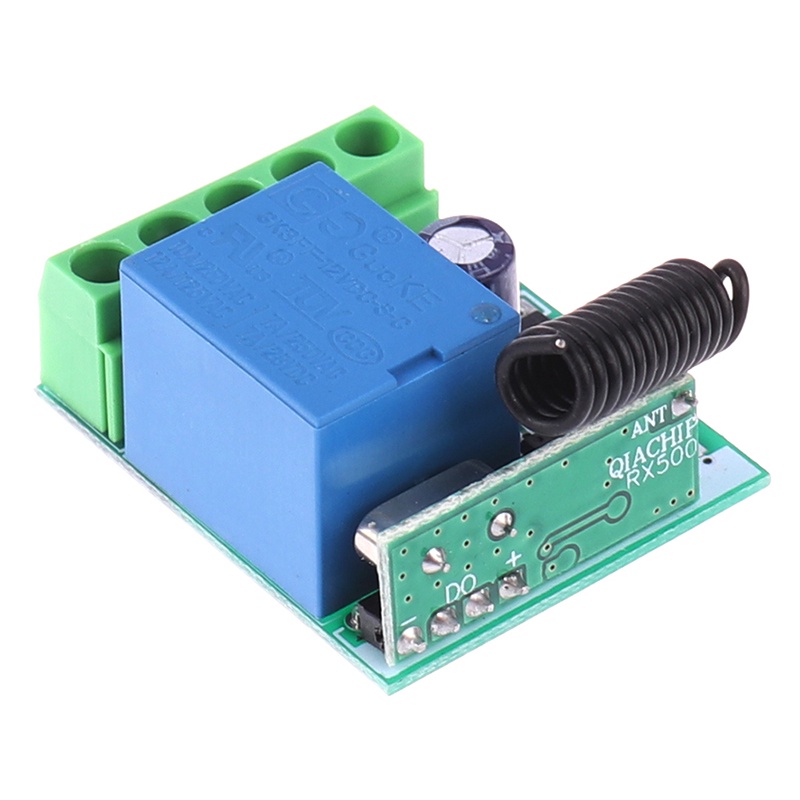

Modul Relay Switch Remote Control Wireless RF 1CH Channel DIY

Detail Modul Relay Switch Remote Control Wireless RF 1CH Channel DIY

Specification:

Brand new

Input Voltage: DC10-14V

Working Voltage: DC12V

Output Current: 10A

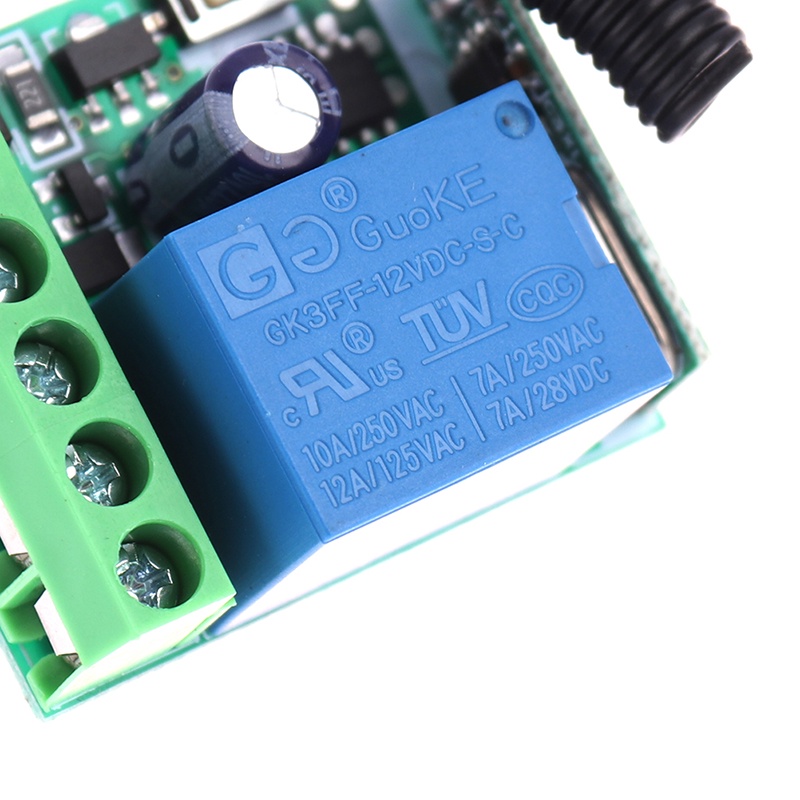

Rated load: 10A 250V AC / 10A 125V AC; 10A 30V DC / 10A 28V DC

Standby Current: ＜5MA

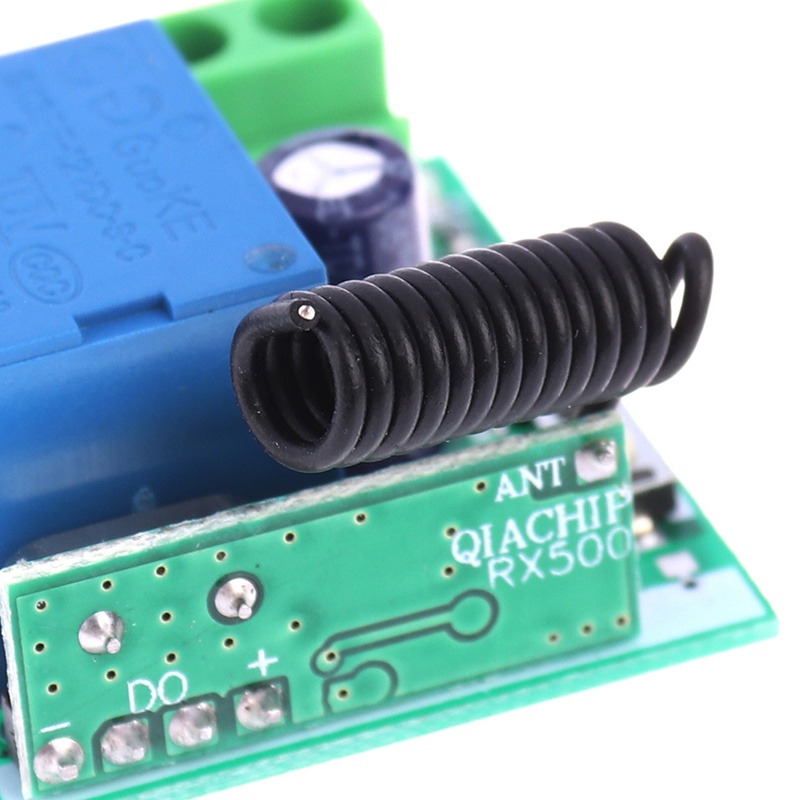

RF Frequency: 433MHZ

RF Working mode: Super heterodyne receiver

Receiver Sensitivity: >90dBm

Remote Control Distance: >100 meter(In open environment)

Decoding Way: MCU Software decoding

Can store the number of remote control: 50

Support remote control type: Fixed code, learning code

Channel: 1CH

Wiring Method: Fixed wiring terminal

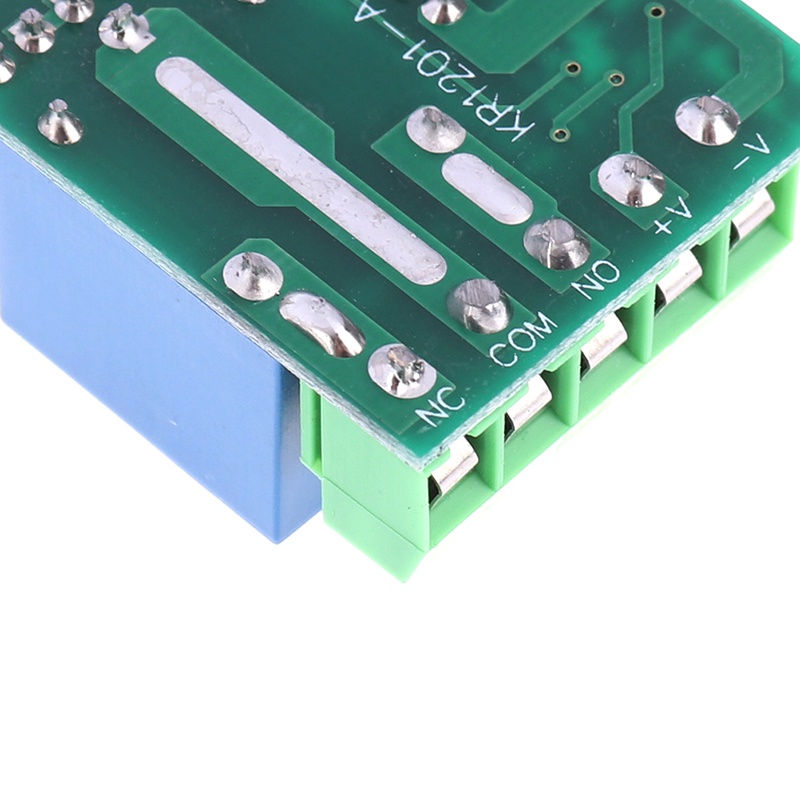

Output: Normally open/Common/Normally closed

Fine workmanship and good performance.

Stable and reliable.

Durable in use.



Working/Output Way:

1. Jog/Non-Latched: Press one button is Working /ON. Loosen your finger on the same button is Stop/OFF. One channel switch need one buttons remote control.

2. Self -lock/Self-Latched: Press one button for one time is working/ON. Press the same button again is stop/OFF. One channel switch need one buttons remote control.

3. Inter-lock /Latched: Press one button is working/ON, press another button is stop/OFF. One channel switch need 2 buttons remote control.

4. Delay: Press remote control relay pull-in, release the remote control and begin timekeeping, after 5s, 10s, 15s will automatically close the relay.



Usage:

1. Press the learning code and the indicator flash, then loosen your finger, press any button of the remote control the indicator flash 2 times and off. It means that you learn it successfully.

2. It can learn more than 12 PCS 2262 or 1527 chip with the different code wireless 433MHz remote control.

3. Remove/Clean: press the learning button about 8 seconds, the indicator turn on to off, it means the information that you keep have been removed successfully.



Package included:

1 x Wireless Relay Switch



Note:

Please allow 1-3mm errors due to manual measurement.

Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same
