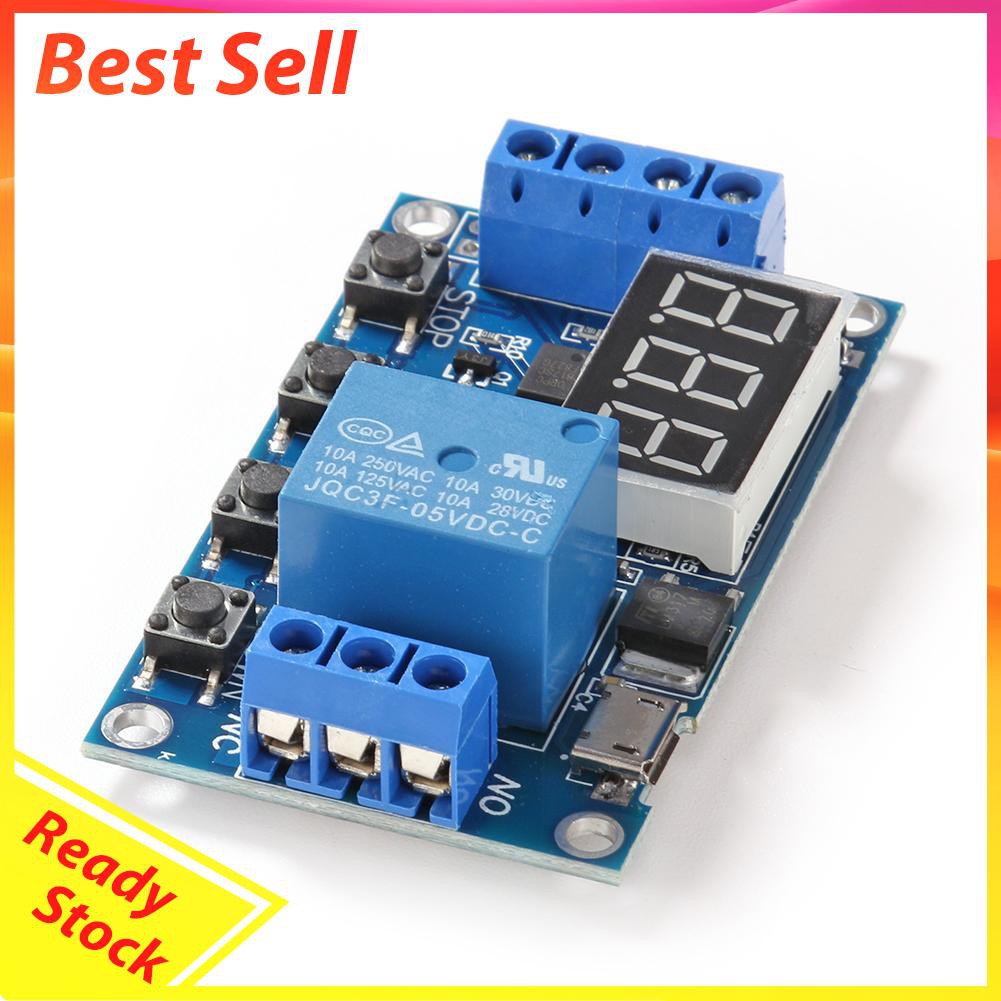

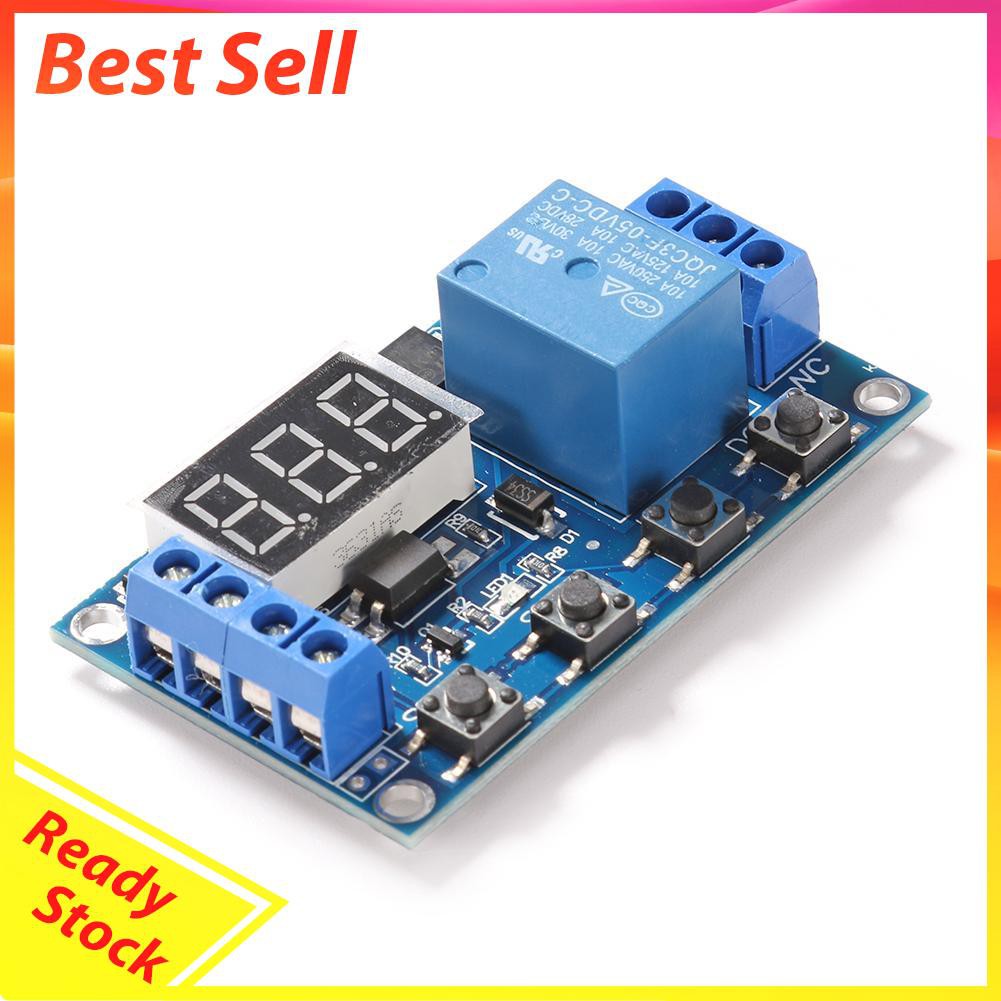

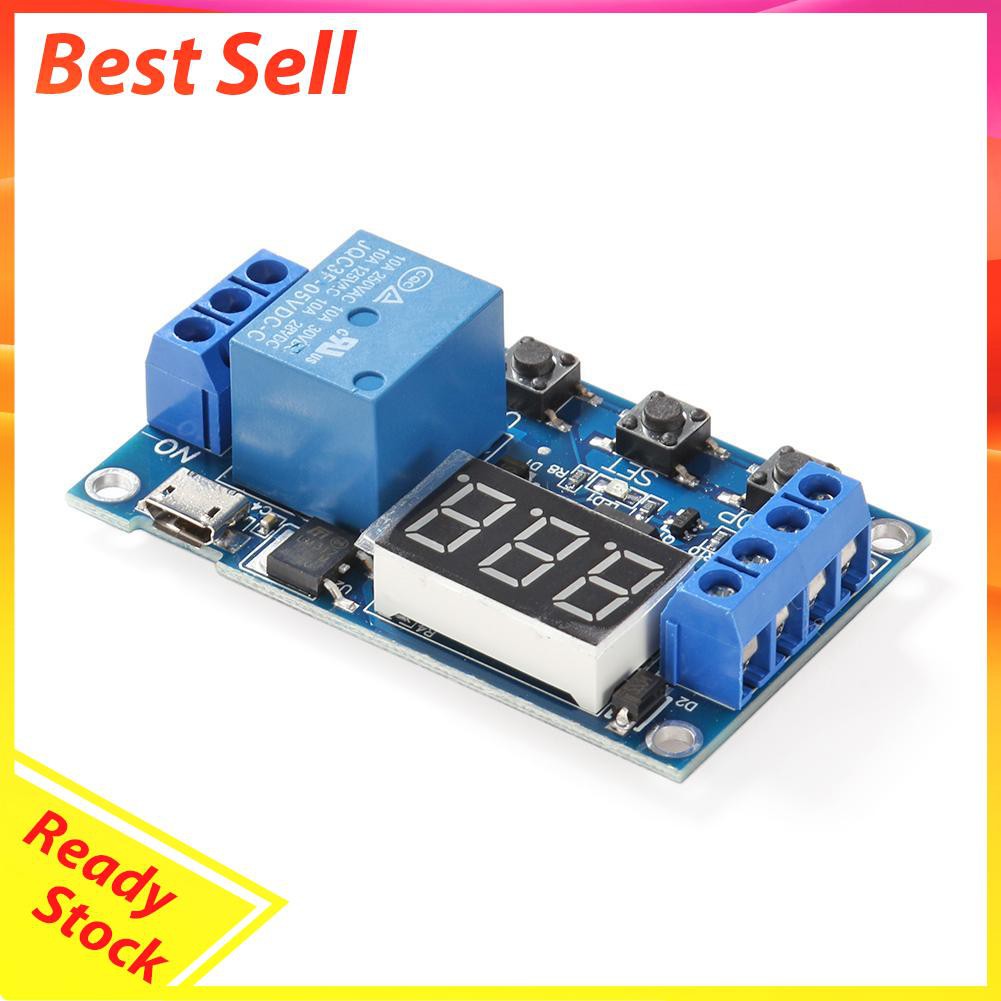

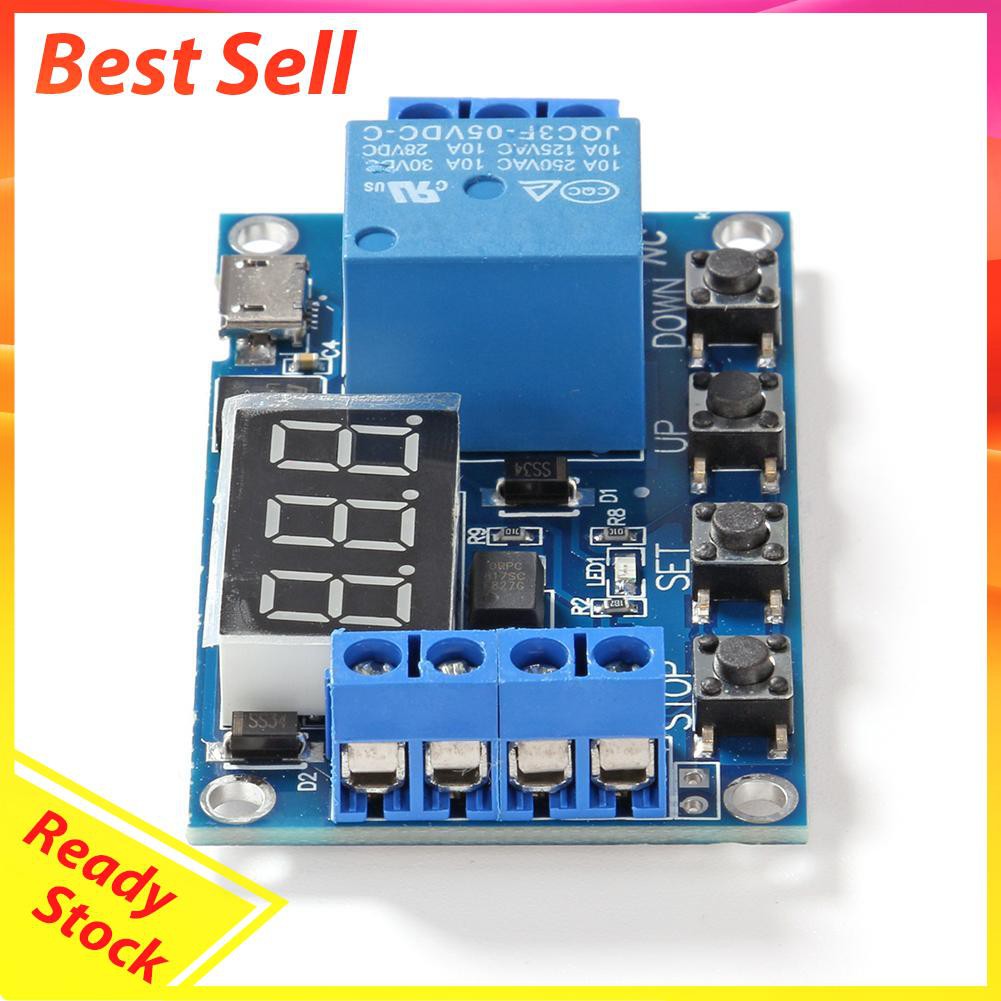

Detail Modul Relay Kontrol Timer Delay 1 Arah Dc 6-30v
DC 6-30V 1 Way Automation Cycle Delay Timer Control Off Switch Delay Time Relay Module Board Support Micro USB 5V Feature: 1. Wide voltage power supply (6 ~ 30V), supports microUSB 5.0V power supply, easy to use; 2. The interface is clear and simple, powerful, easy to understand, meet almost all your needs; 3. The emergency stop function ("STOP" key);With reverse polarity protection, reverse polarity will not burn the product. 4. Increase the sleep mode, if this mode is enabled, without any operation within 5 minutes, then automatically turn off the monitor, any key wake-up; 5. You can set a different OP, CL, LOP parameters, which are independent of each other, and are automatically saved; 6. After the module is powered down, all parameter settings are not lost. 7. With optocoupler isolation, enhance anti-jamming ability, industrial grade circuit board, set parameters after power off forever memory.

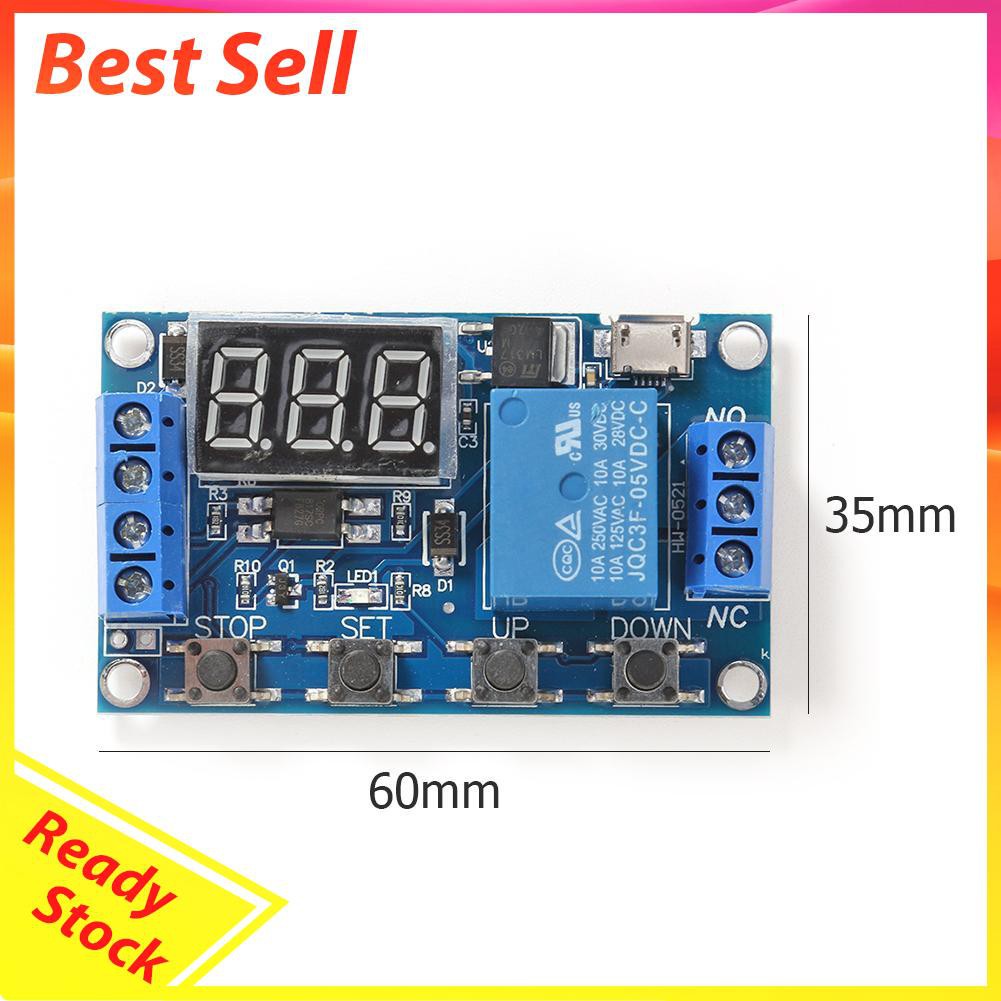

Specification: Working Voltage: 6-30V Supports Micro USB 5.0V Power Supply Trigger Signal Source: High-level Trigger (3.0V-24V) signal is not in common with the system to improve the anti-jamming ability of the system (also can be self-connected to the ground) Output capacity: can control equipment within 30 V 5A DC or 220 V 5A AC Quiescent current: 20mA Working current: 50mA Service life: more than 100,000 times Working temperature: -40~85℃ Size: 60*35*15mm/2.36*1.37*0.59''
Note: Please allow 1-3cm differs due to manual measurement. Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
Included:
1 x Time Relay Module
Gambar produk
