Modul Relay Cahaya Photoswitch Input DC 5V LDR Light Sensor
Deskripsi singkat
Elektronik > Elektronik Lainnya > Modul Relay Cahaya Photoswitch Input DC 5V LDR Light Sensor
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail Modul Relay Cahaya Photoswitch Input DC 5V LDR Light Sensor
Features:This switch uses photoresistor to sense intensity of light and good quality relay can directly control load.
Adjust potentiometer to change sensitivity and set relay start threshold; when it is darker than the threshold, relay is energized; when it is brighter than the threshold, relay is de-energized.
5V power supply input special for relay, designed with 78L05 regulated transistor, more stable and reliable.
Optical coupling isolation drive relay can effectively protect chip and ensures a better performance.
Widely used for light detection, brightness detection, all kinds of light detection switch, controlling street lamps, and automatic equipment.
Specification:
Voltage: 5V DC
Current: >100mA
Load Capacity: 250V 10A AC; Or 30V 10A DC

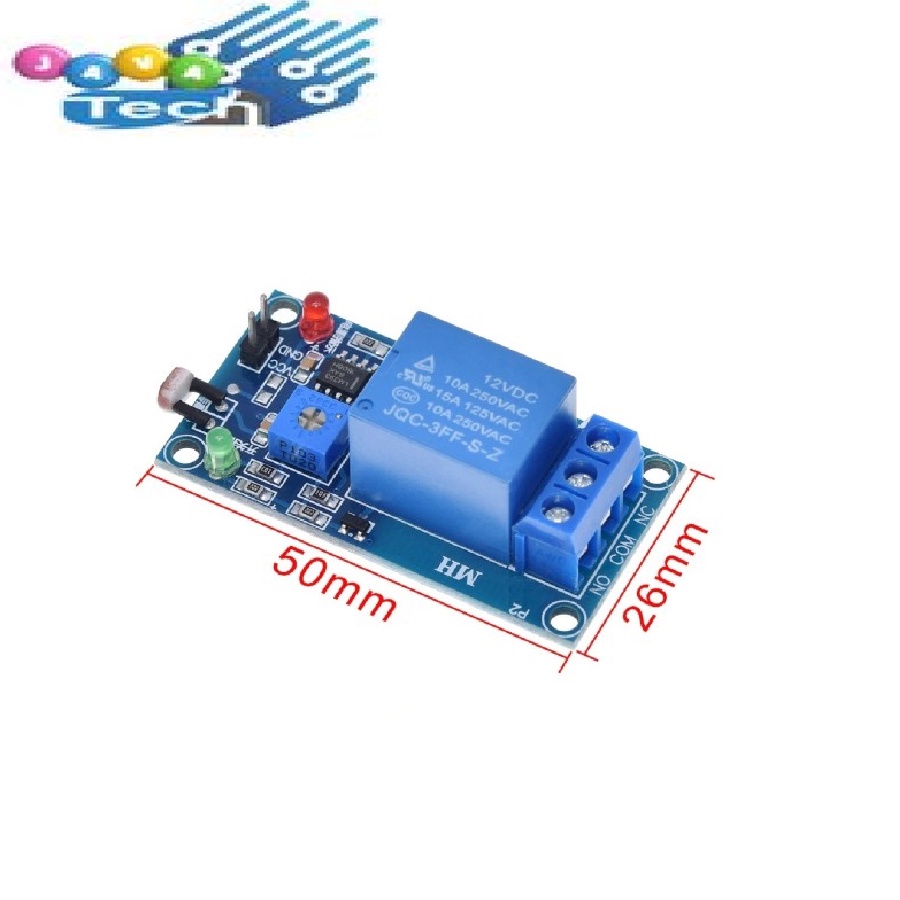

PCB Size: 5*2.6cm/1.96*1.02"
Instruction:
1, Photosensitive resistance module is sensitive to ambient light, commonly used to detect the brightness change of ambient light.
2, Relay module is energized when ambient light is darker than set threshold; COM and NO terminals are connected. Relay module is de-energized when ambient light is brighter than set threshold; COM connect to NC terminal.
3, COM, NO and NC terminals are equivalent to a three-way switch. When relay coil is energized, COM is connected to NO terminal. When coil is not energized, COM is connected to NC terminal.Features:
This switch uses photoresistor to sense intensity of light and good quality relay can directly control load.
Adjust potentiometer to change sensitivity and set relay start threshold; when it is darker than the threshold, relay is energized; when it is brighter than the threshold, relay is de-energized.
5V power supply input special for relay, designed with 78L05 regulated transistor, more stable and reliable.
Optical coupling isolation drive relay can effectively protect chip and ensures a better performance.
Widely used for light detection, brightness detection, all kinds of light detection switch, controlling street lamps

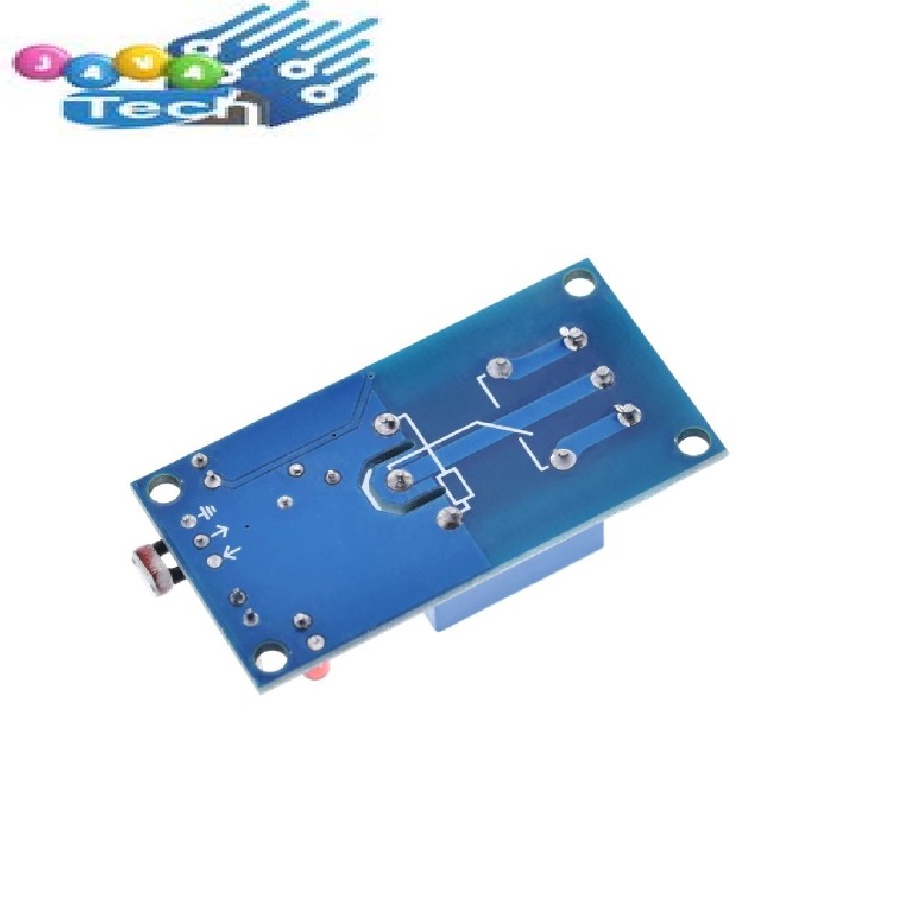

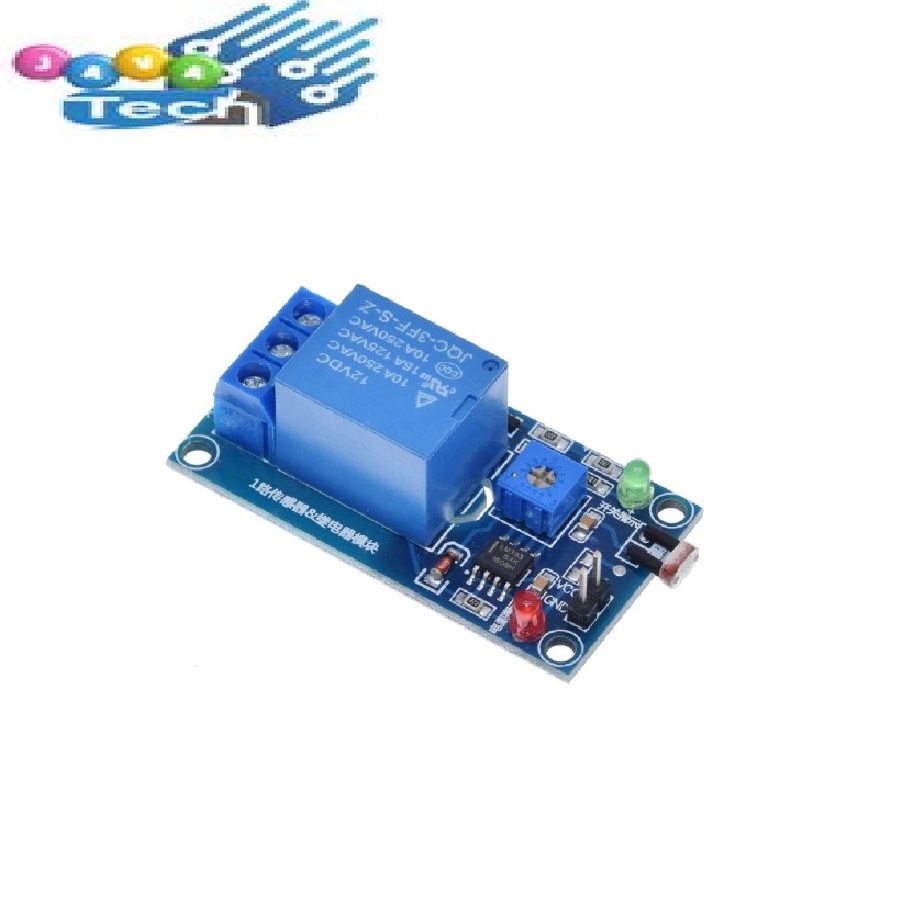

Gambar produk
