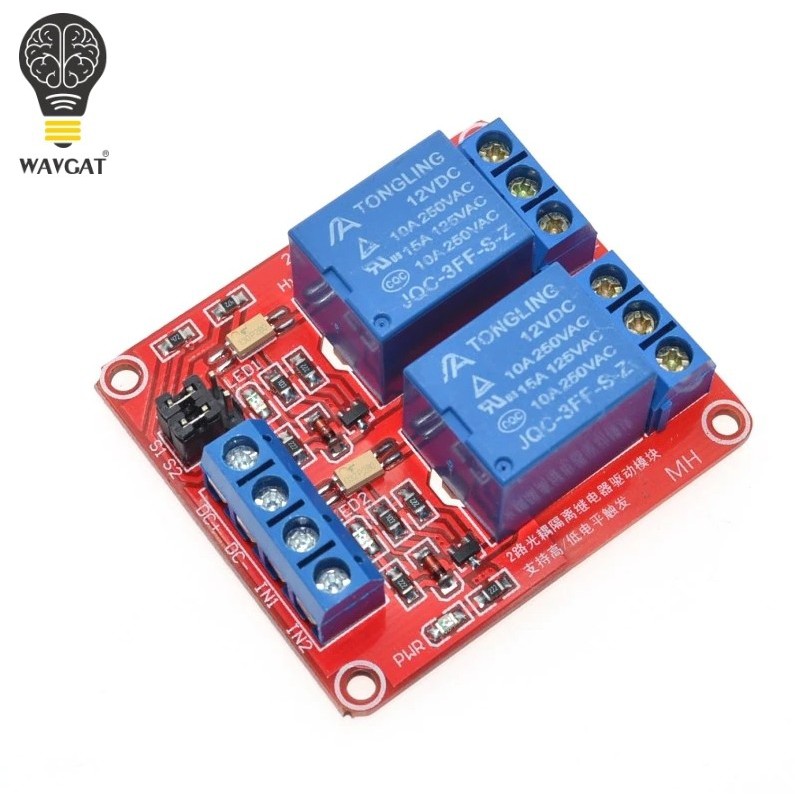

Detail Modul Relay 2 Channel 12V Optocoupler High or Low Level Trigger 12volt

Module description:
1. Maximum load onnormally open pin: AC 250V/10A DC 30V/10A.
2. Trigger current5mA
3. Module can be sethigh level or low level trigger by jumper wire
4. Power indicatorlight (green) relay status indicator light (red)
5. Module size:50mm*41mm*18.5mm.

Module interface specifications:
1. DC+ : DC powersupply positive pole
2. DC- : DC powersupply negative pole
3. IN1 : channel 1signal triggering pin
4. IN2 : channel 2signal triggering pin

Relay output:
1. Normally closedpin (NC1) : channel 1 relay normallyclosed pin
2. Common pin (COM1): channel 1 relay common pin
3. Normally openedpin (NO1) : channel 1 relay normallyopened pin
4. Normally closedpin (NC2) : channel 2 relay normallyclosed pin
5. Common pin (COM2): channel 2 relay common pin
6. Normally openedpin (NO2) : channel 2 relay normallyopened pin

High or low level trigger option:
1. S1:It is optionswitch for channel 1 relay
2. S2:It is optionswitch for channel 2 relay
3. It is low leveltriger if COM pin connect to LOW pin It is high level triger if COM connect toHigh.

Included:
1xRelay Module 2 Channel 12V
