Modul Relay 16 Channel Ch 5V 220V AC Module optocoupler

Detail Modul Relay 16 Channel Ch 5V 220V AC Module optocoupler

The module allows you to control actuators consuming up to 10 A by means of microcontroller ports or any startup kit. Opto-isolation separates the control signal from the part related to the relay power supply, thus ensuring safe operation of the control system.

For proper operation, simply connect the relay coil power supply and the digital control signal. The leads are standard 2.54 mmgoldpin strips, which allow connection with popularconnection cables.

The relay has the following leads
5V- optoisolator power supply
GND- system weight
IN1 ... IN16- control inputs of relays, switched on in low state
KF (ARK) connectors- relay contacts, connected according to the drawing on the module board.

Examples of application
Lighting controller
Controller of actuators
Switch for electrical equipment, including motors

Specification
VCC supply voltage: 12 V
Attached in a low state
Current consumption of each input: approx. 60 mA
Relay SRD-12VDC-SL-C
Coil voltage: 12 V
Maximum contact voltage: 250 VAC, 110 VDC*.
Maximum current: 10 A
Optoelectronic isolation
16 LEDs indicating vh activation of relays

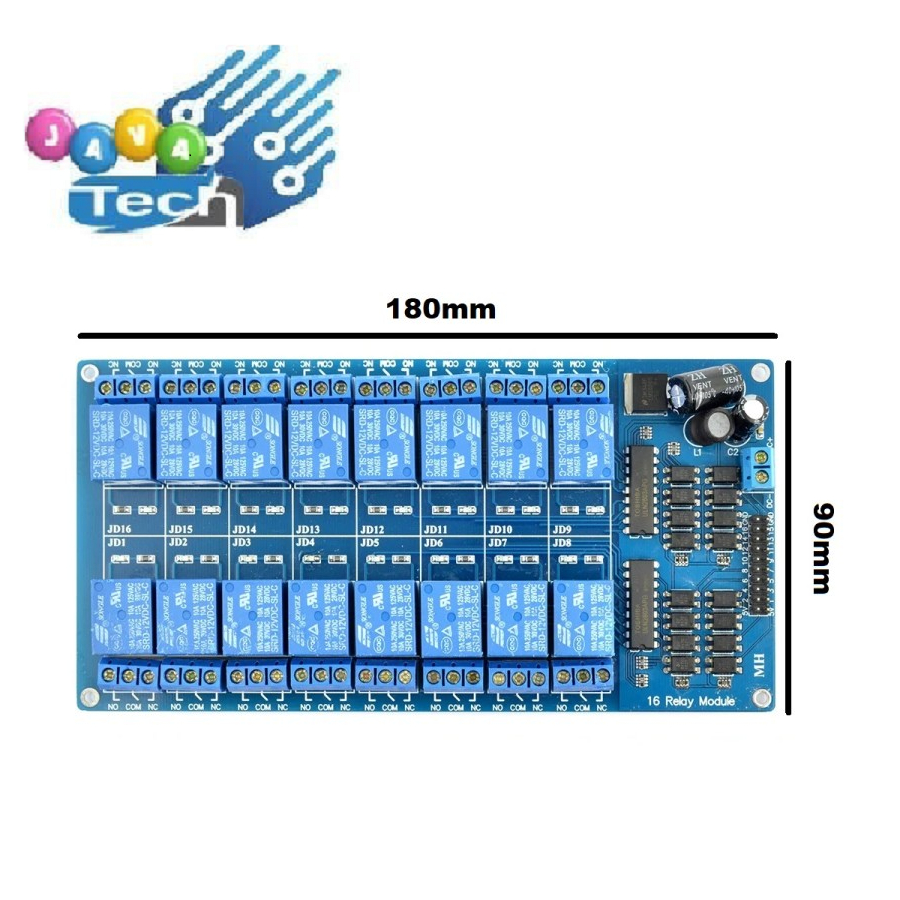

Plate dimensions 180 x 90 mm
Weight: 225 g
Diameter of mounting holes: 3 mm
