Detail Modul Relay 1 Channel 24V Hi-Lo Input Optocoupler

Deskripsi Modul Relay 1 Channel 24V Hi-Lo Input Optocoupler
Description

NO & NC Pin Maximum load: AC 250V/10A, DC 30V/10A
Using OPTOCOUPLER isolation, the trigger current only 5mA
The module have 24V DC Coil
The module can be set to high or low triggered by jumper
Fault-tolerant design, even if the control line is broken, the relay will maintain;
Has the power indicator (green) and relay status indicator (red)
Size: 50*26*18.5mm
Has four mounting bolts holes, hole 3.1mm, 44.5*20.5mm pitch
Interface:

Input:

VCC: Relay power supply +

GND: Relay power supply -

IN: Signal trigger input (High or Low Level Signal, select via jumper)

Output:

NO: Relay normally open.

COM: Relay Common Pin

NC: Relay normally closed.

Gambar produk

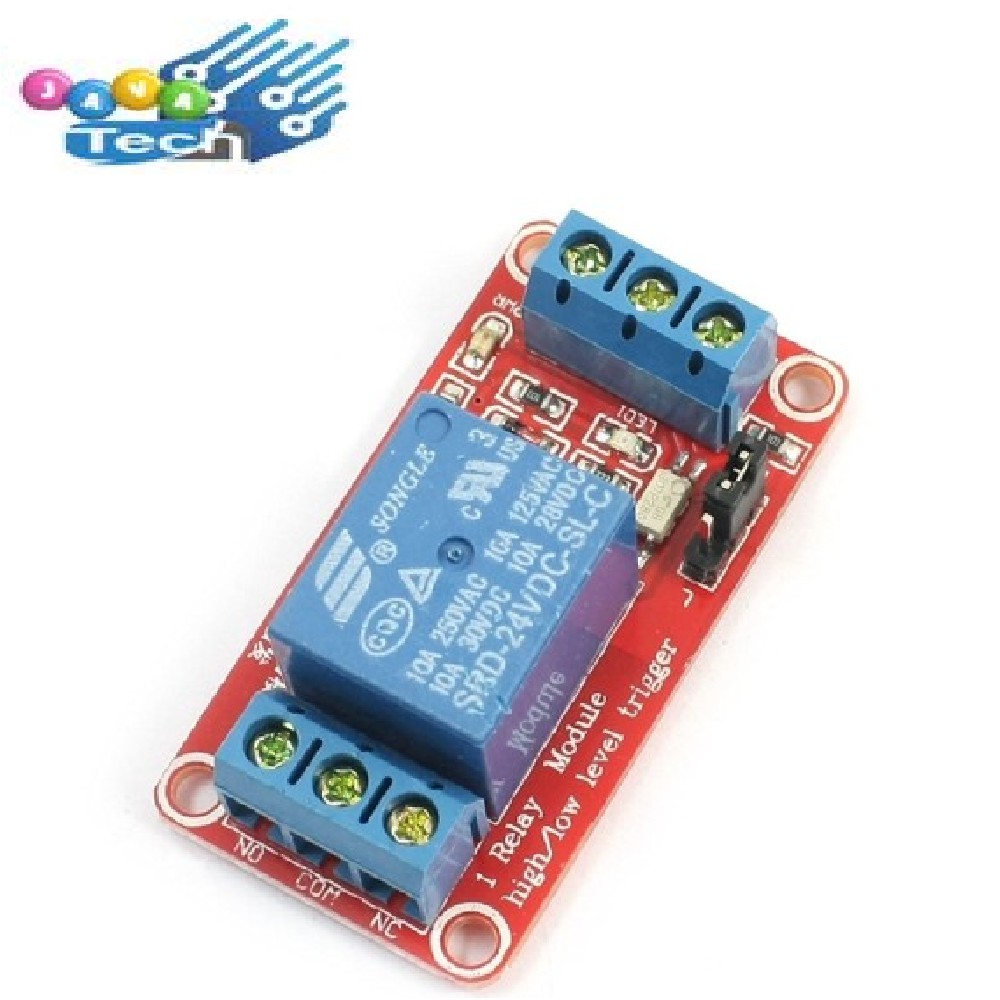

Modul Relay 1 Channel 24V Hi-Lo Input Optocoupler

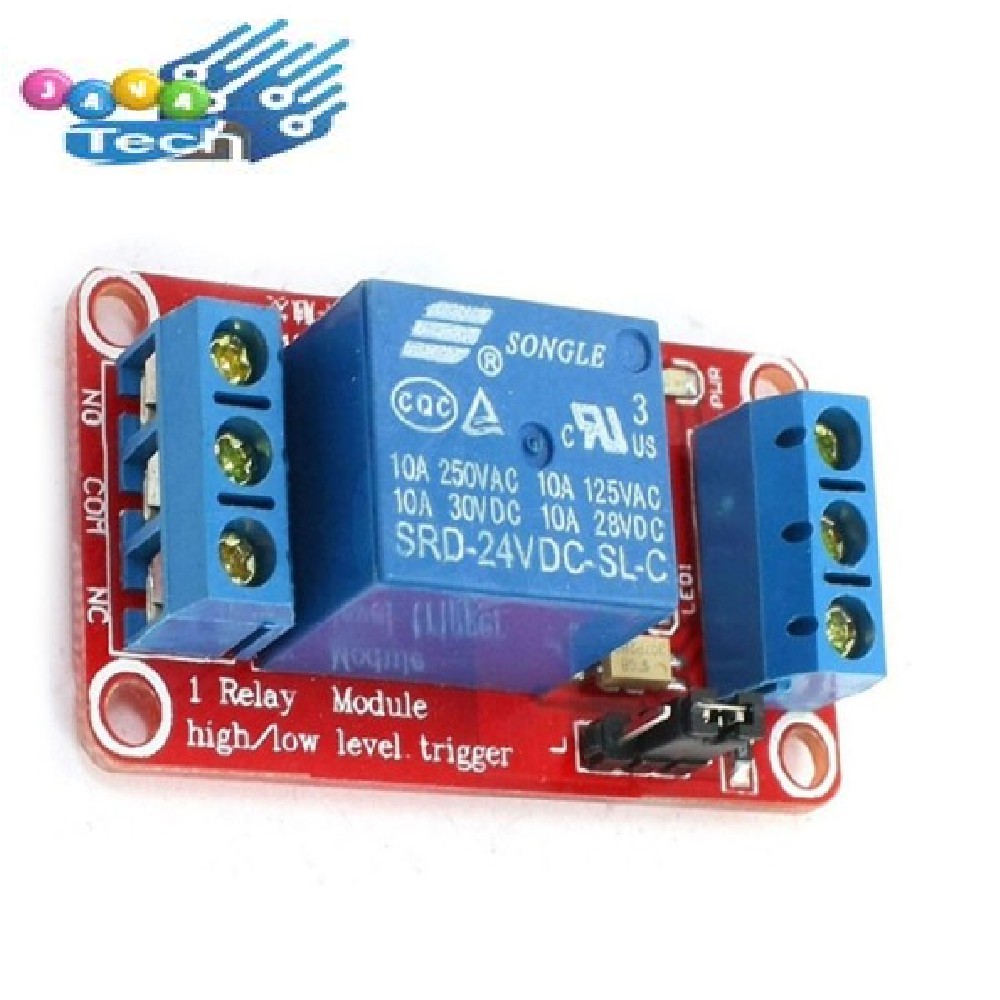

Modul Relay 1 Channel 24V Hi-Lo Input Optocoupler
Modul Relay 1 Channel 24V Hi-Lo Input Optocoupler
Modul Relay 1 Channel 24V Hi-Lo Input Optocoupler
