Modul Relay 1 Channel 12V Hi-Lo Input Optocoupler

Detail Modul Relay 1 Channel 12V Hi-Lo Input Optocoupler

Deskripsi Modul Relay 1 Channel 12V Hi-Lo Input Optocoupler
This is ready breakout board with one (single) 12V activated relay, with 3 screw terminals for the relay (NO, NC, COM) and screw terminals for control signal from microcontroller such as Arduino. The control signal is opto-isolated, protected. It even comes with activation LED indicator for the relay. Easy to use and suitable for beginner, and of course student too.

If you need to control AC or high current, high voltage load, this will be the perfect board.

Features:

12V 1 channel relay module
Configureable Activation Logic, High or Low, via mini jumper
Maximum Current Rating: 10A
Maximum Voltage Rating: AC 250V
Can control various appliances with large current and high voltage
Can be controlled directly by microcontroller such as Arduino, 8051, AVR, PIC, DSP and ARM
Build in an Opto-Isolator for extra isolation and protection to controller.
A power indicator LED, Green
Comes with an indicator LED

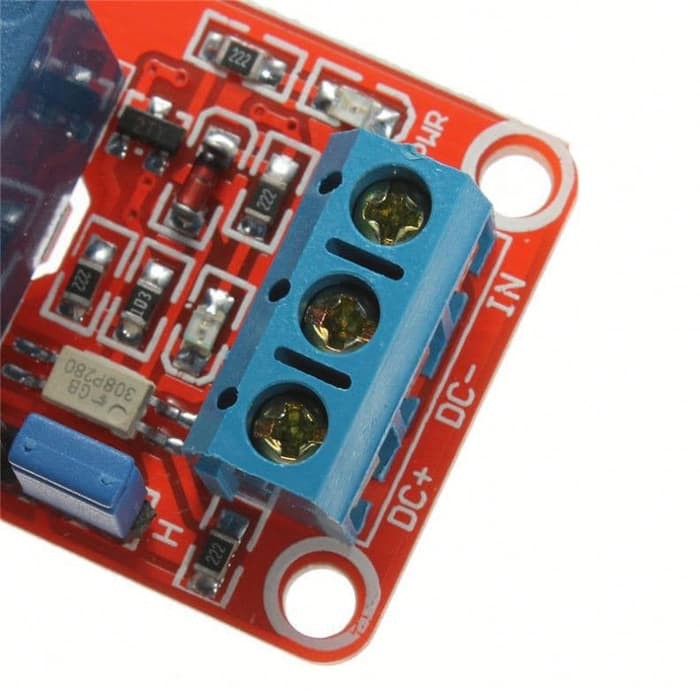

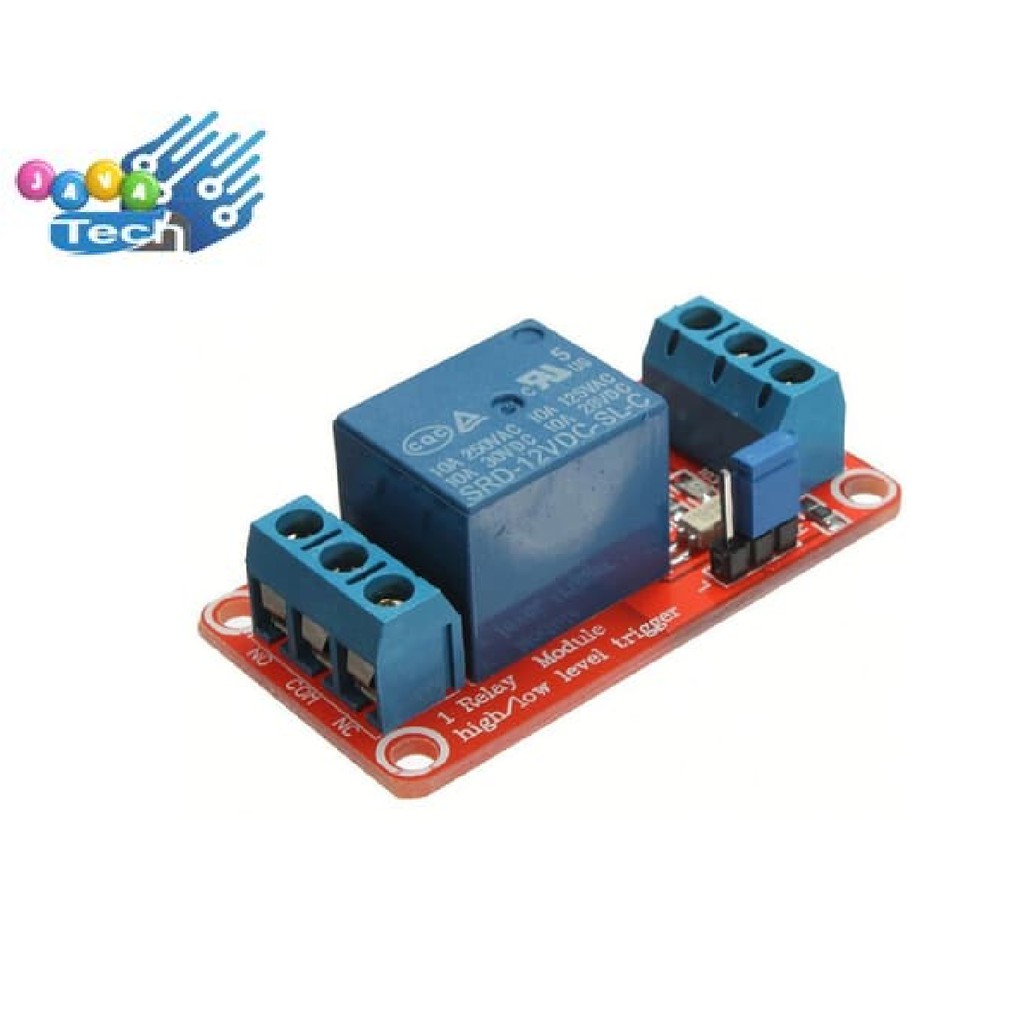

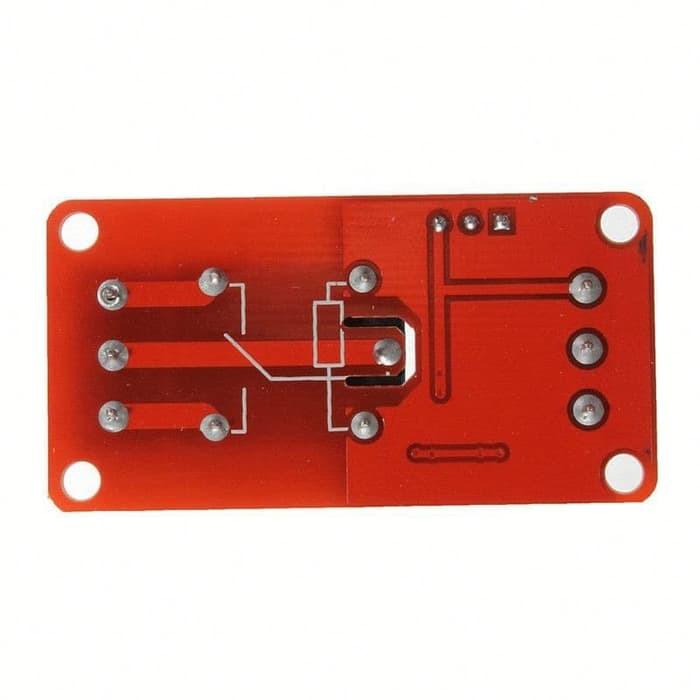

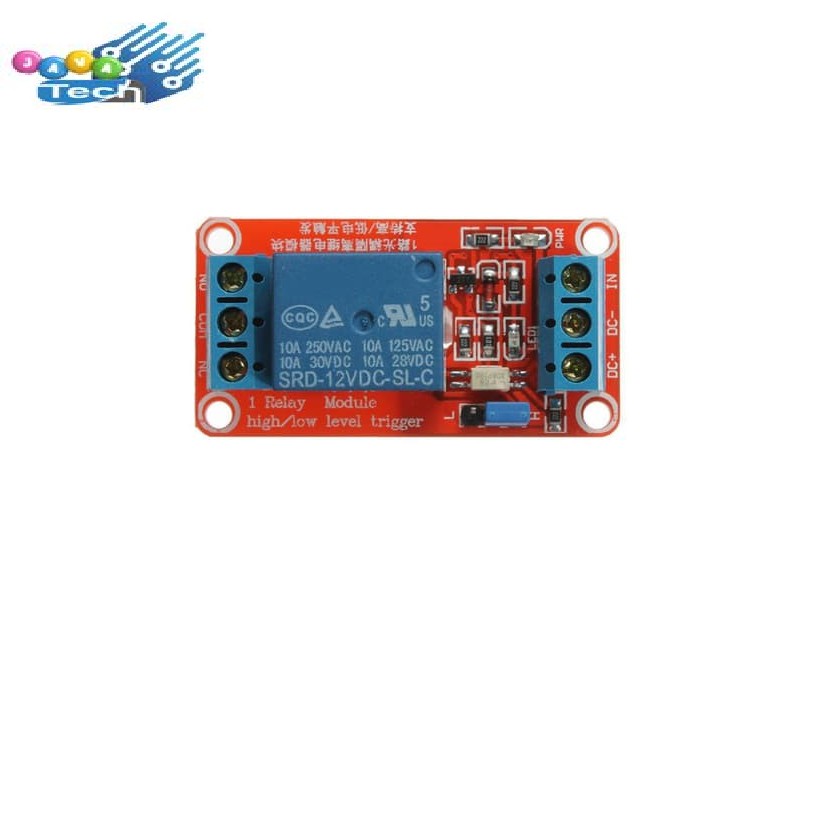

Gambar produk
