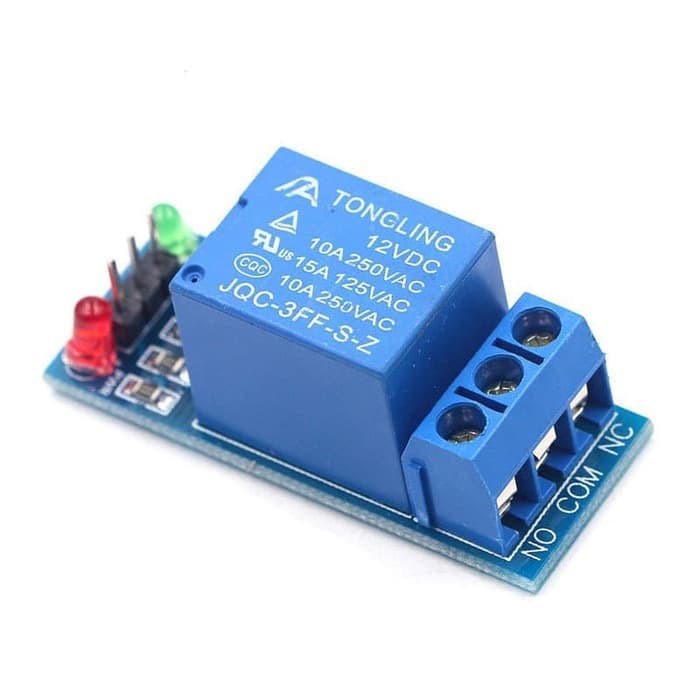

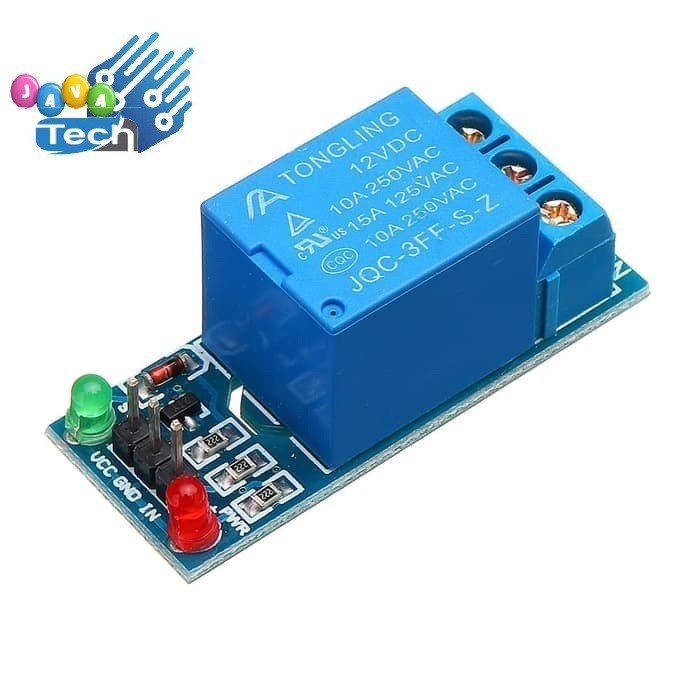

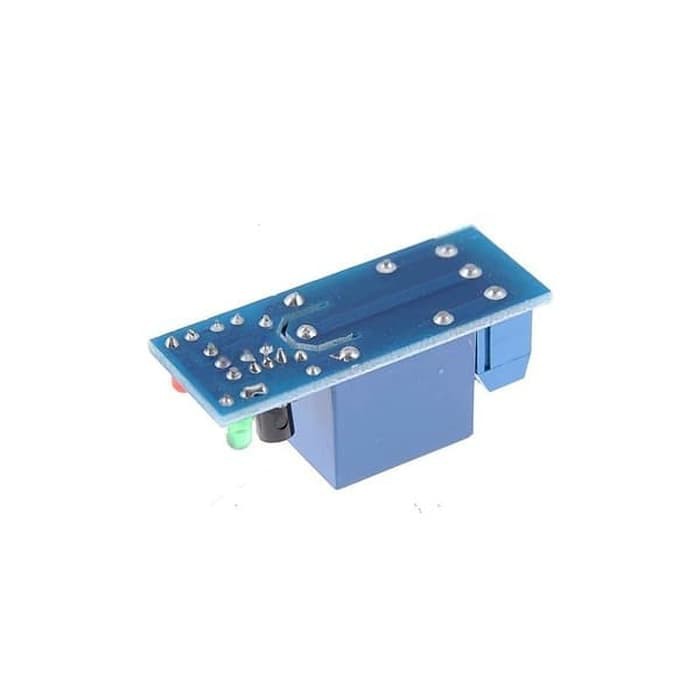

Modul Relay 1 Channel 12V DC

Detail Modul Relay 1 Channel 12V DC

Modul Relay 1 Channel 12V DC
Features:
1. With isolation groove in control area and load area.
2. With power and relay action indication, bright when connect and go off when disconnects.
3. When there is a signal in signal input, public side and common side will breakover.
4. It can be not only used as a microcontroller development board module, but also as a home appliance control.
5. It can not only control the DC or AC signal, but the 220V AC load.
6. With a permanent open and close vents contact.
7. It is convenient to connect with blue KF301 terminal access control cable.

Specification:
1. VCC: Power interface, 12VDC
2. GND: Ground
3. IN: Control interface .Drive Current at least 4mA
4. COM: Control circuit ground ,Connect to GND
5. Single Size: approx. 44 x 16 x 16mm/ 1.73 x 0.62 x 0.62''
6. Single Weight: approx. 11g
