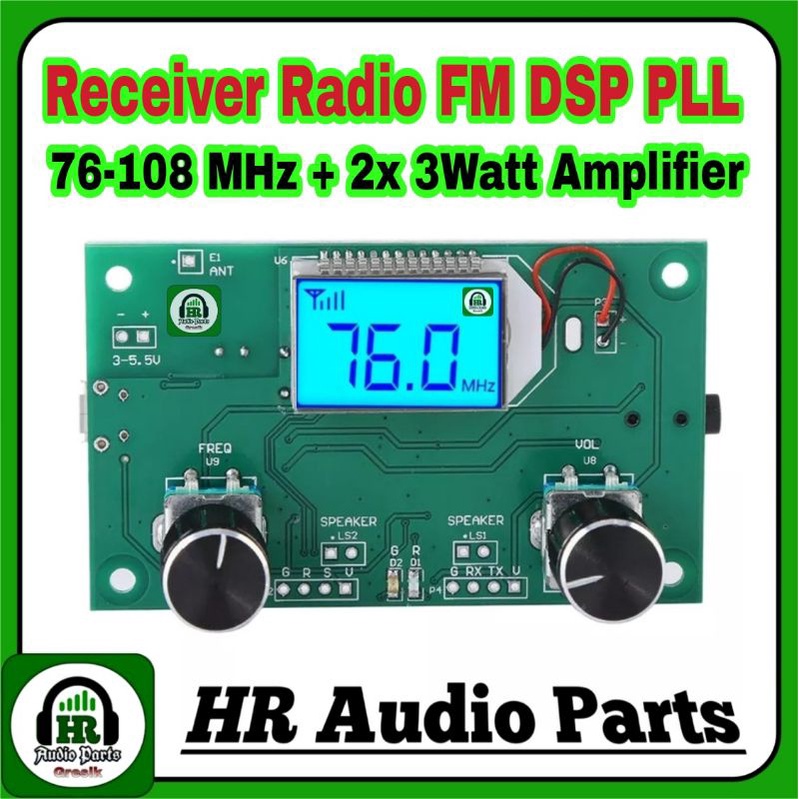

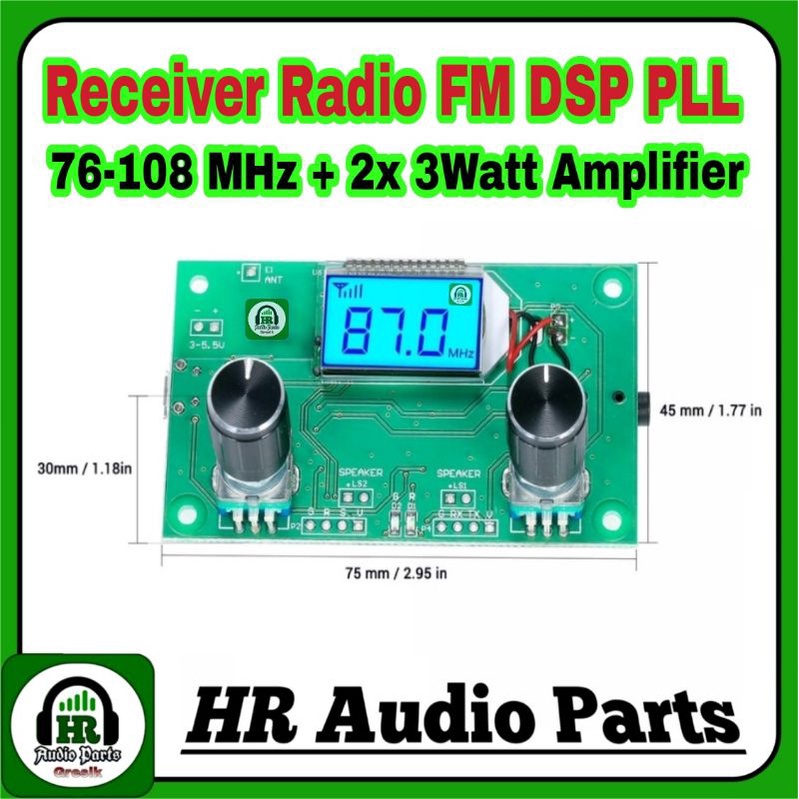

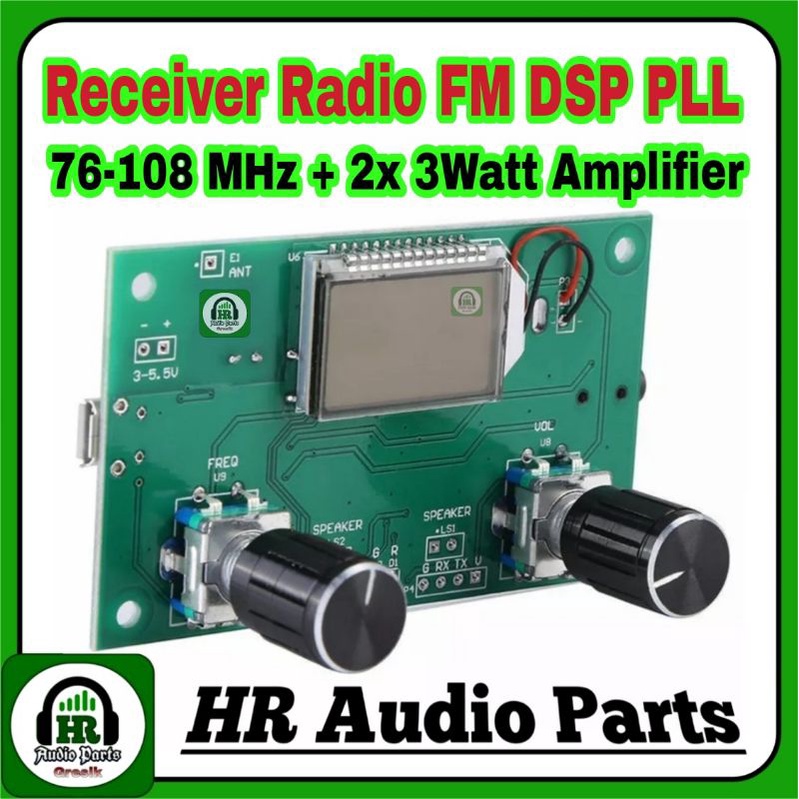

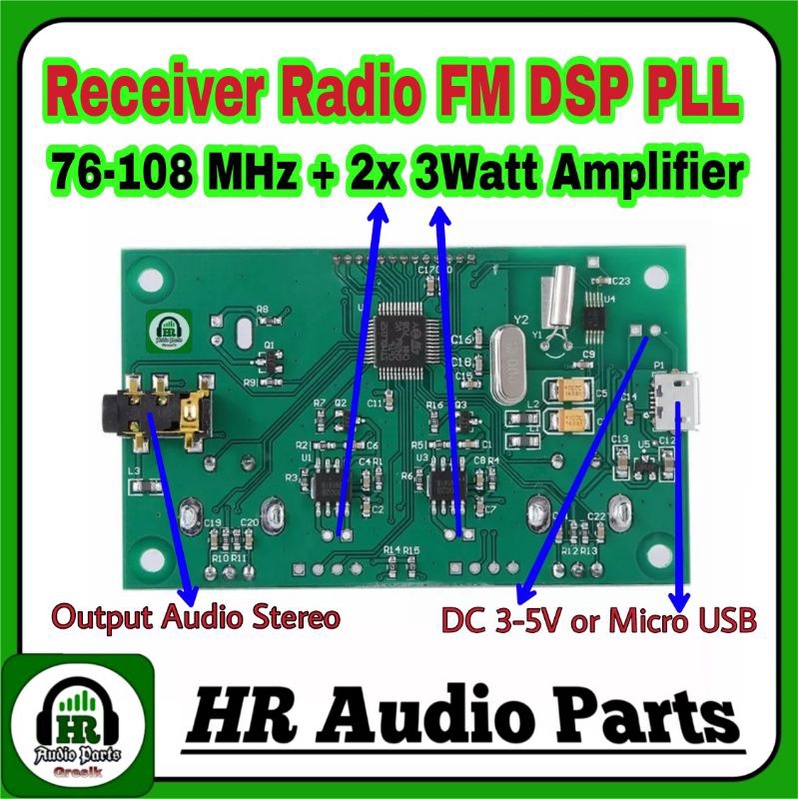

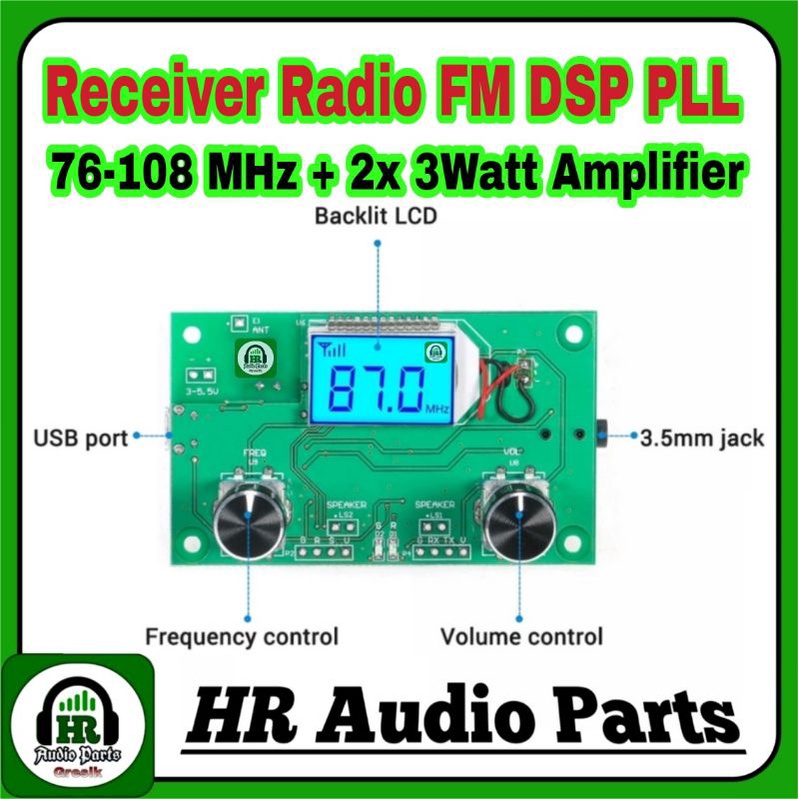

Modul Receiver DSP PLL Radio FM Digital Tuner Stereo 76-108MHz 2x3Watt

Detail Modul Receiver DSP PLL Radio FM Digital Tuner Stereo 76-108MHz 2x3Watt

Modul Receiver DSP PLL Radio FM Digital Tuner Stereo 76-108MHz 2x3Watt


Description:
The use of advanced digital audio signal processing (DSP) and FM modulation phase-locked loop (PLL) to make sound more realistic, more stable performance, long working hours without frequency offset.
LCD display is more intuitive and accurate, with a very low power consumption and minimal noise
Can search for radio stations and store radio function, easy to operate
Built-in 30 digital volume adjustment button operation can be easily done
Automatic power-down memory data before the power failure
Speaker / headphone output automatic switching
Quartz crystal frequency stabilization.

The professional audio DSP audio signal analysis and processing, automatic mute no signal or weak FM signal noise floor of the big time, away from the traditional FM radio signal or the signal is weak in the absence of annoying when rustle
Digital incremental rotary encoder to adjust the volume and frequency of use feel good, precise positioning, stable and durable, 360 ° rotation without dead ends
30-level digital volume adjustment range
Support for serial communication control, use other computer or device control MCU module with serial full functionality.
Specification:
Output power: 500mW (drive headphones), 3W x 2 (driving the speaker)
Frequency range: 50Hz-18KHz
Receiving frequency range:
Close the campus radio 87.0MHz-108.0MHz,
Open campus radio 76.0MHz-108.0MHz
Equivalent noise: ≥30dB
Supply voltage: 3.0V-5.0V
Supply Current: maximum volume 1000mA, minimum volume at 60mA (for reference only)
Channel: Stereo
Package Includes:
1 x Digital Stereo FM Radio Receiver Module
