Modul Powerbank 5V T6845-C dengan Stepup dan Proteksi

Detail Modul Powerbank 5V T6845-C dengan Stepup dan Proteksi

Modul Powerbank 5V T6845-C dengan Stepup dan Proteksi
DESCRIPTION:
The PowerBank Module is a single chip solution designed for mobile power and includes a load management module, a discharge management module, an LED indication module and a protection module. The integrated loading and unloading of MOS 134N3P can be configured. Large load current and large discharge current 1A. 134N3P internal integrated thermostat charging mode, over-temperature protection, overload and over-discharge, output overvoltage protection, output overload protection, output short-circuit protection, and almost all safety features to ensure the safety of the chip and the Lithium-ion battery, while the 134N3P application circuit is simple, only a few components can be achieved for load management and discharge management.

SPECIFICATIONS:
Chemistry:
Lithium-Ion (Li-Ion)
Rated Voltage: 5Volt

EXTRA SPECIFICATIONS:
Input Voltage: 3.7 V ~ 5.5 V
Charging current: 1A (max.)
Output current: 1A (max.)
Output voltage: 5 V
Voltage to stop discharging volatile mouse: 2.9 V
Charging charging voltage 4.2V, accuracy ± 1%
Discharge efficiency: 85% (input 3.7V , output 5V / 1A)
Maximum standby current 8uA

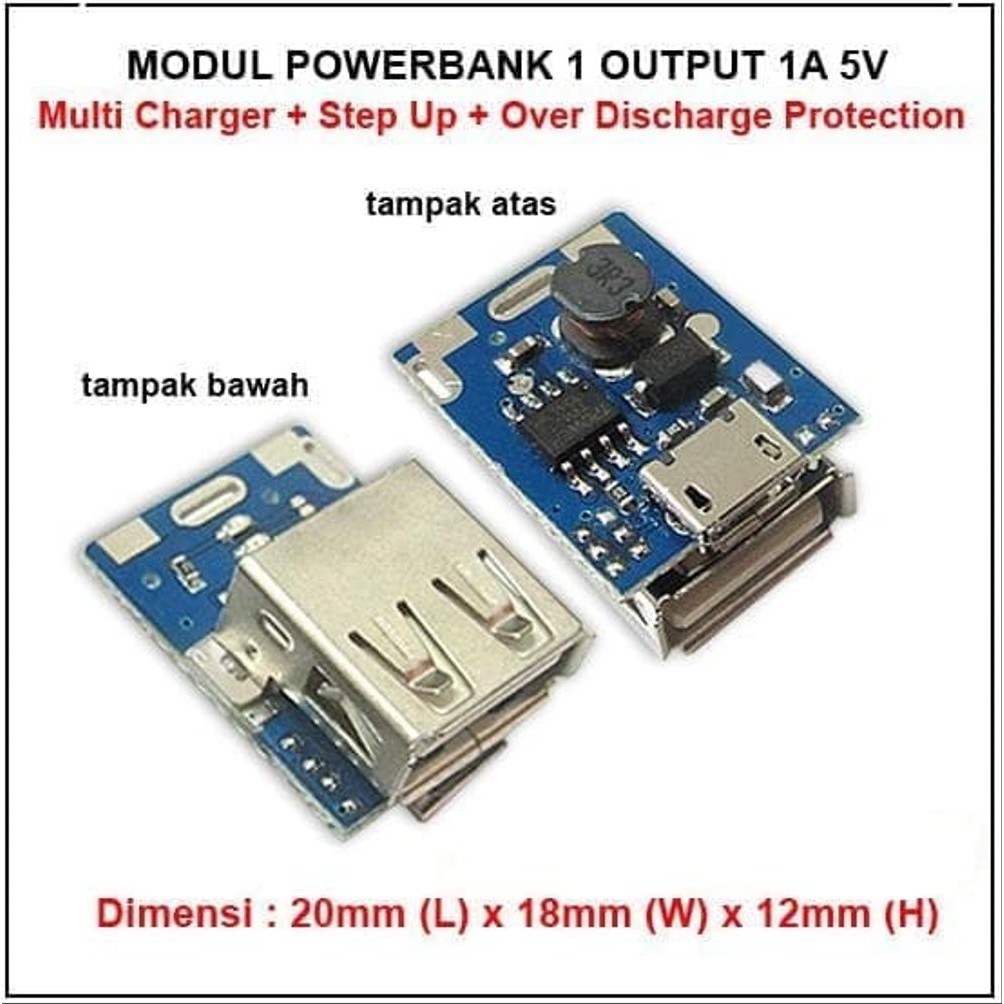

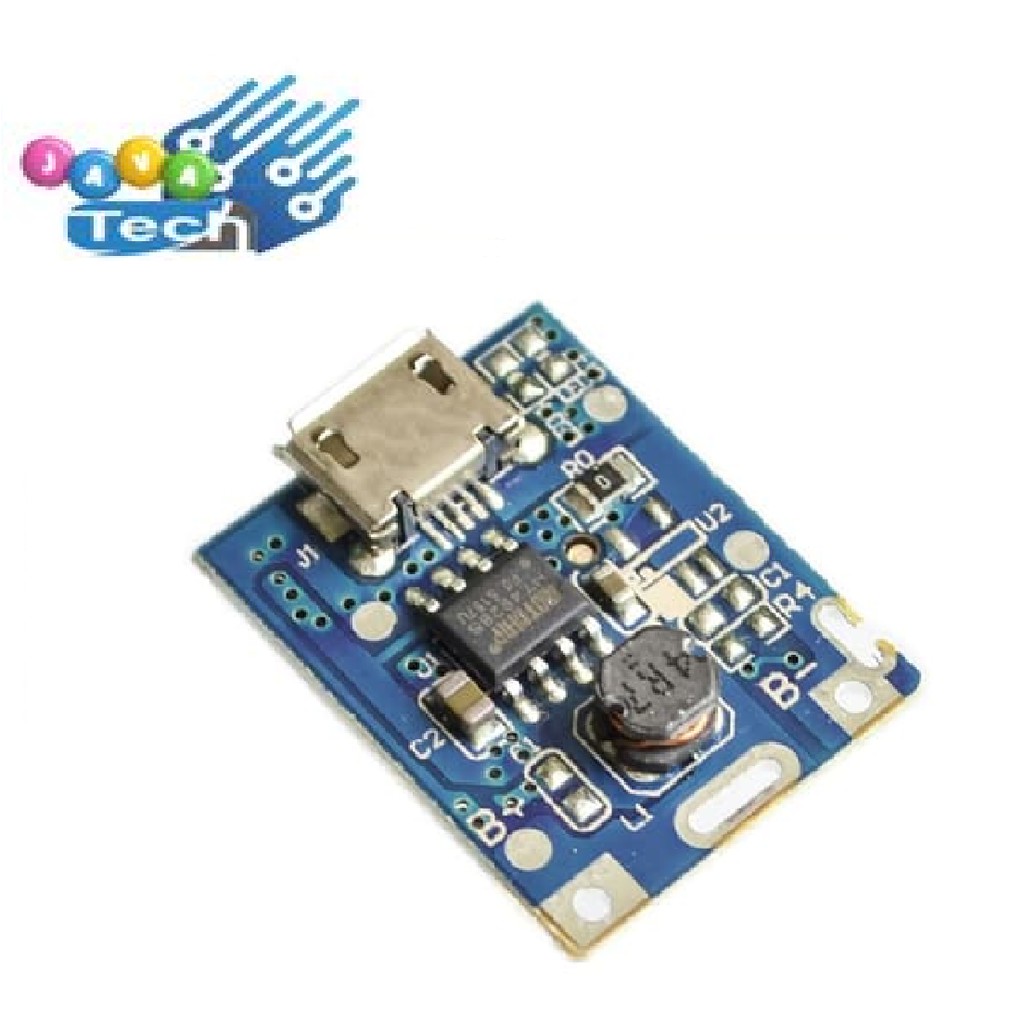

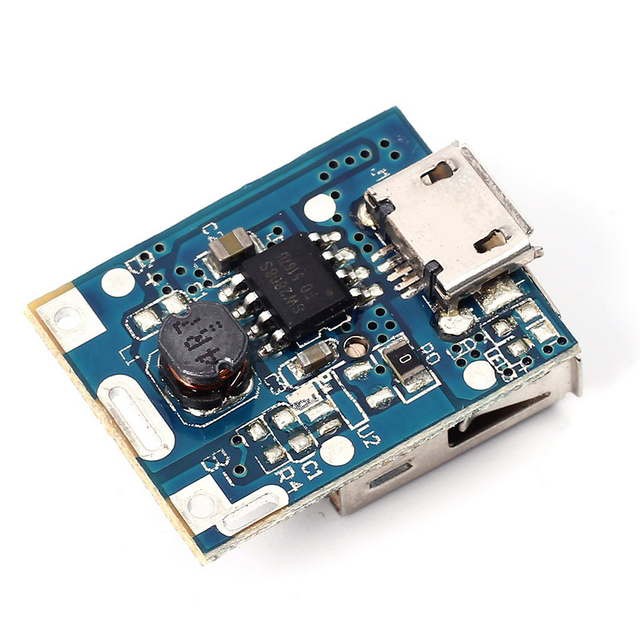

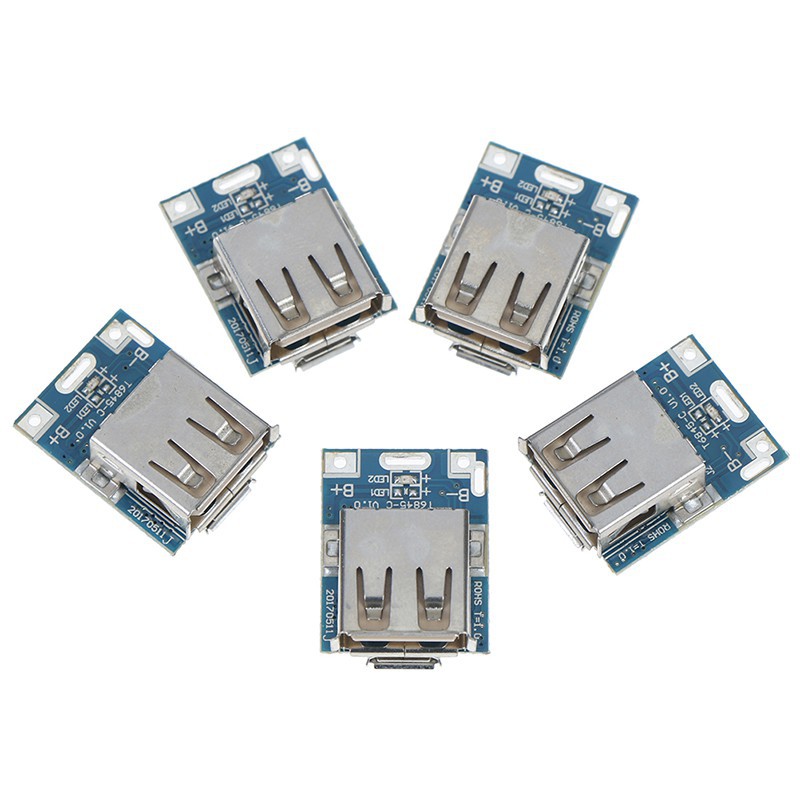

Gambar produk
