Modul Power Supply Step Down LM2596 S DC-DC 3A LM2596s

Komputer & Aksesoris > Komponen Desktop & Laptop > Power Supply > Modul Power Supply Step Down LM2596 S DC-DC 3A LM2596s
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:ahrar8Lihat semua produk Komputer & Aksesoris oleh ahrar8
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

Detail Modul Power Supply Step Down LM2596 S DC-DC 3A LM2596s

Features:
100% Brand New and High Quality.
Shape: Same as the picture show
Module Spec: Non-Isolated Step-Down (BU)
Rectification: Non-Synchronous Rectification
Input voltage:3.2--35V
Output voltage:1.25-35V(Adjustable)
Output current:Rated current is 2.5A,maximum 3A(Additional heatsink is required)
Conversion Efficiency: 92% (The Highest)
Operating Temperature: -45 ℃ To +85 ℃
Module Size: 42mm(Length)*20mm(Width)

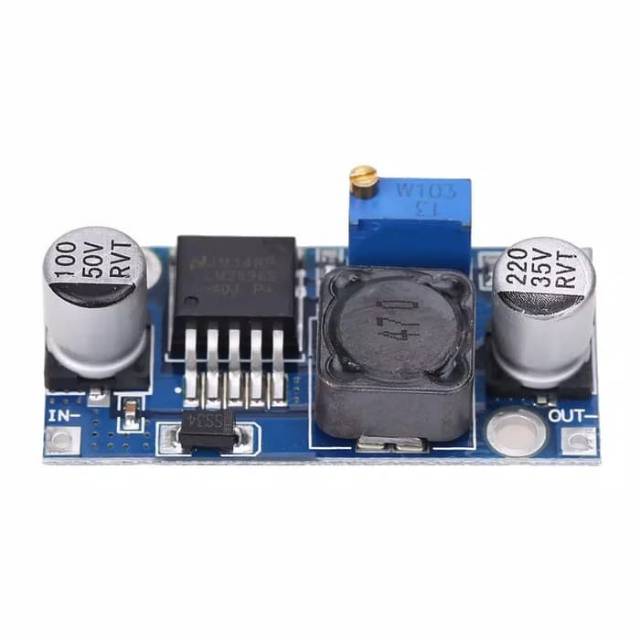

Gambar produk

Modul Power Supply Step Down LM2596 S DC-DC 3A LM2596s
Modul Power Supply Step Down LM2596 S DC-DC 3A LM2596s
Modul Power Supply Step Down LM2596 S DC-DC 3A LM2596s
Modul Power Supply Step Down LM2596 S DC-DC 3A LM2596s
Lihat lebih banyak informasi produk
