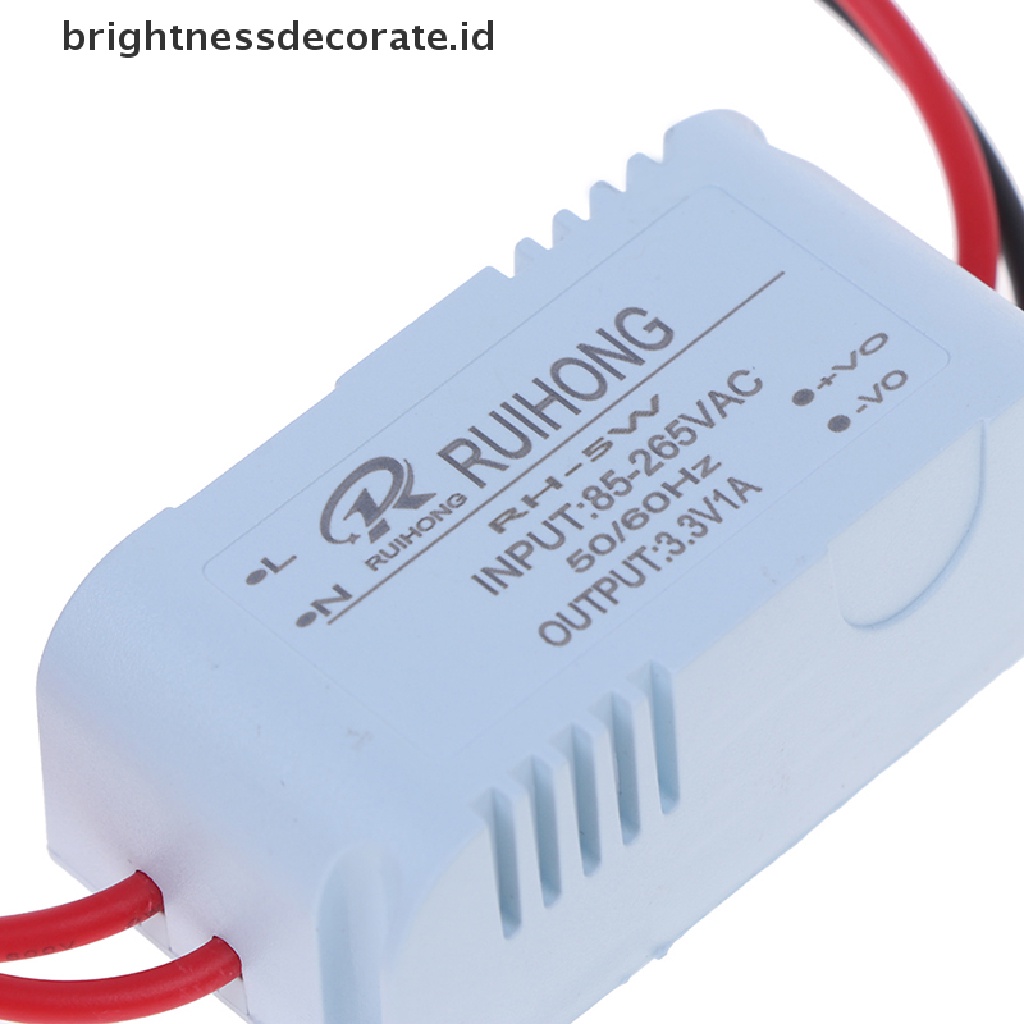

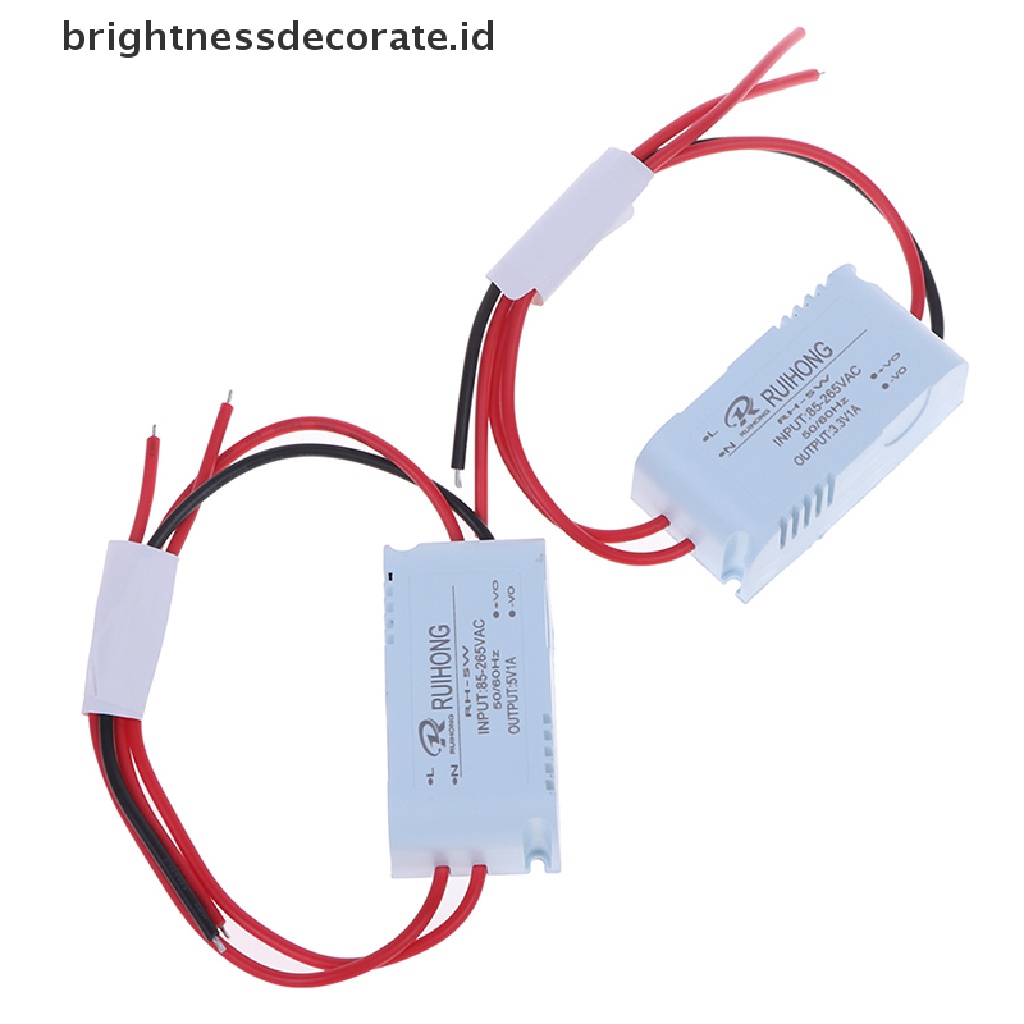

Modul Power Supply Mini Ac-Dc 1a 5w 220v Ke Dc 3v 5v 9v 12v 15v 24v

Detail Modul Power Supply Mini Ac-Dc 1a 5w 220v Ke Dc 3v 5v 9v 12v 15v 24v

Description:
Input voltage: AC 85V-265V
Input voltage: DC 100V-300V
Frequency range: 47HZ-63HZ
Standby power: <150mV/230VAC

3.3V:
Rated current: 1000mA
Current range: 0-1000mA
Rated power: 5W
Ripple: <150mV
Output accuracy: ±1%
Voltage regulation rate: ±1%
Load adjustment rate: ±1%
Switch overshoot: 10%

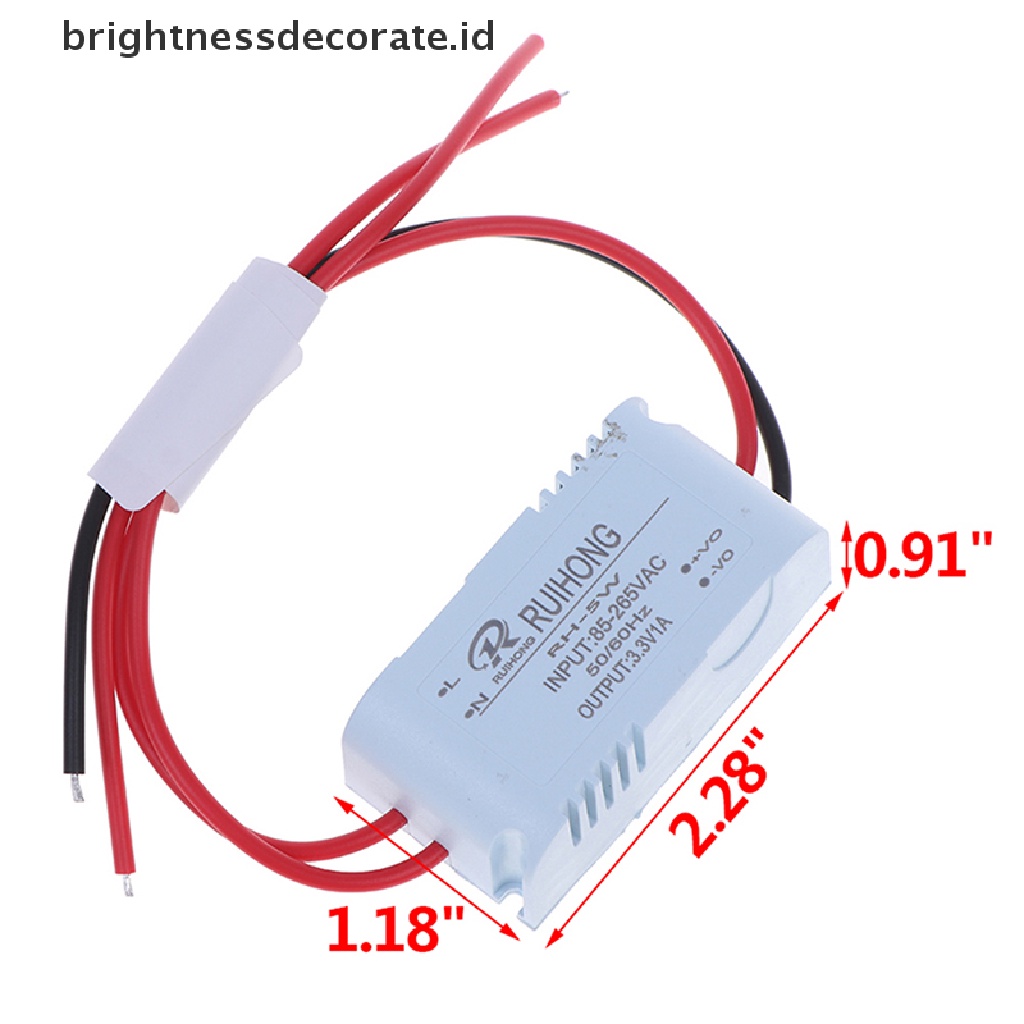

Size: Show in the picture

5V:
Rated current: 1000mA
Current range: 0-1000mA
Rated power: 5W
Ripple: <150mV
Output accuracy: ±1%
Voltage regulation rate: ±1%
Load adjustment rate: ±1%
Switch overshoot: 10%
Size: Show in the picture

9V:
Rated current: 500mA
Current range: 0-500 mA
Rated power: 5W
Ripple: <150mV
Output accuracy: ±1%
Voltage regulation rate: ±1%
Load adjustment rate: ±1%
Switch overshoot: 10%
Size: Show in the picture

12V:
Rated current: 400mA
Current range: 0-400 mA
Rated power: 5W
Ripple: <150mV
Output accuracy: ±1%
Voltage regulation rate: ±1%
Load adjustment rate: ±1%
Switch overshoot: 10%
Size: Show in the picture

15V:
Rated current: 300mA
Current range: 0-300 mA
Rated power: 5W
Ripple: <150mV
Output accuracy: ±1%
Voltage regulation rate: ±1%
Load adjustment rate: ±1%
Switch overshoot: 10%
Size: Show in the picture

24V:
Rated current: 200mA
Current range: 0-200 mA
Rated power: 5W
Ripple: <150mV
Output accuracy: ±1%
Voltage regulation rate: ±1%
Load adjustment rate: ±1%
Switch overshoot: 10%
Size: Show in the picture

Package include:
1Pcs Module

Gambar produk
