Modul Power Supply Konverter Step Down Mini 360 Dc / Dc 4.75v-23v Ke 1v-17v

Detail Modul Power Supply Konverter Step Down Mini 360 Dc / Dc 4.75v-23v Ke 1v-17v

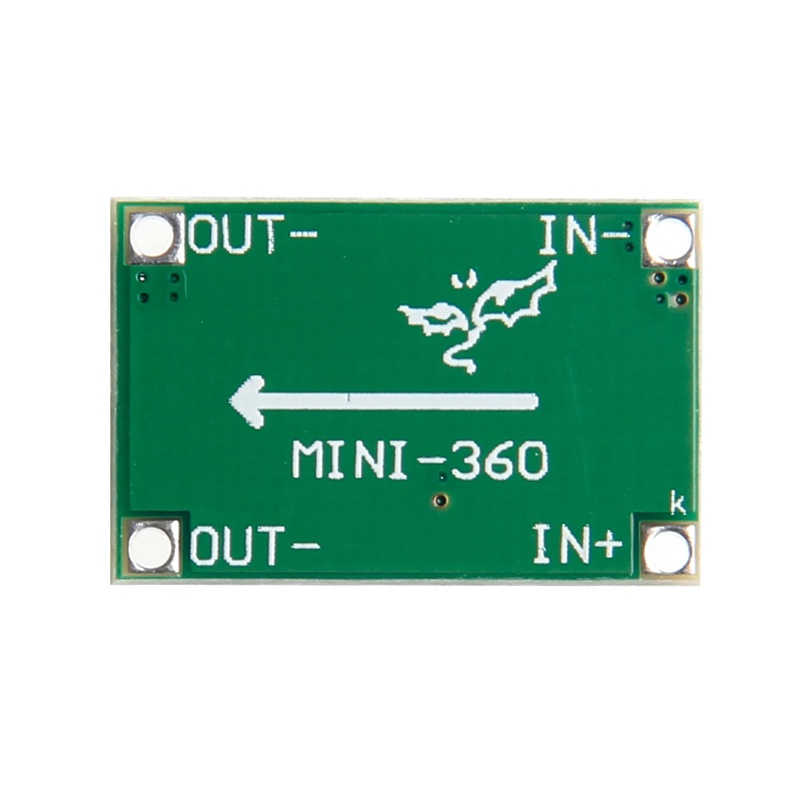

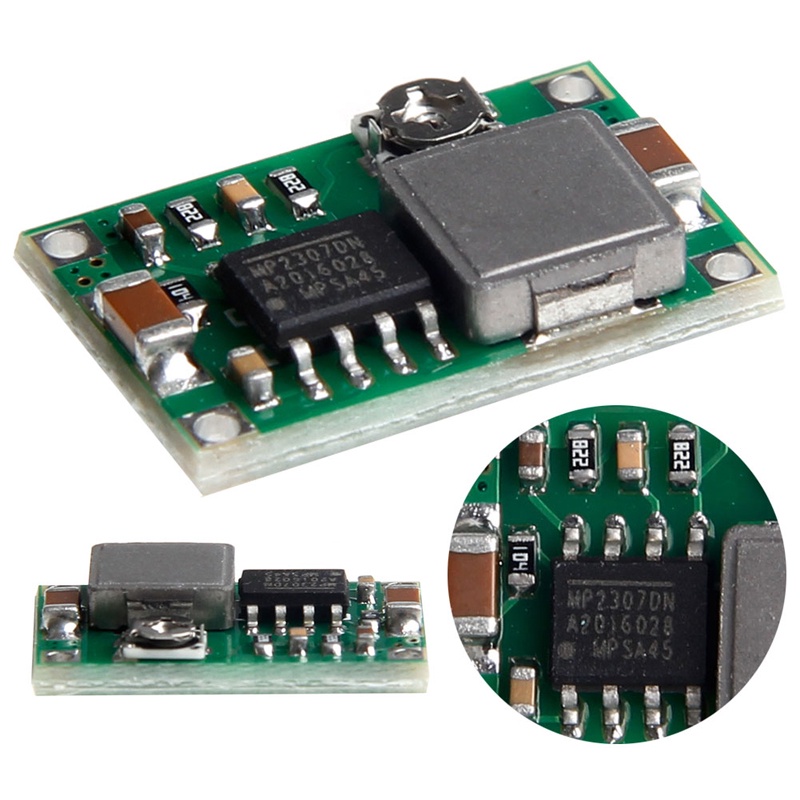

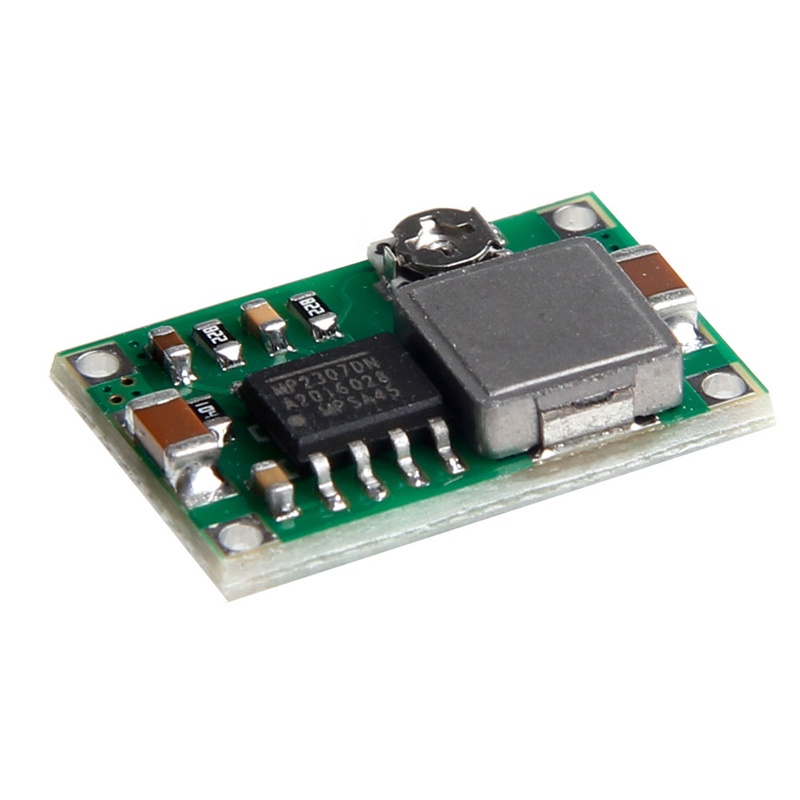

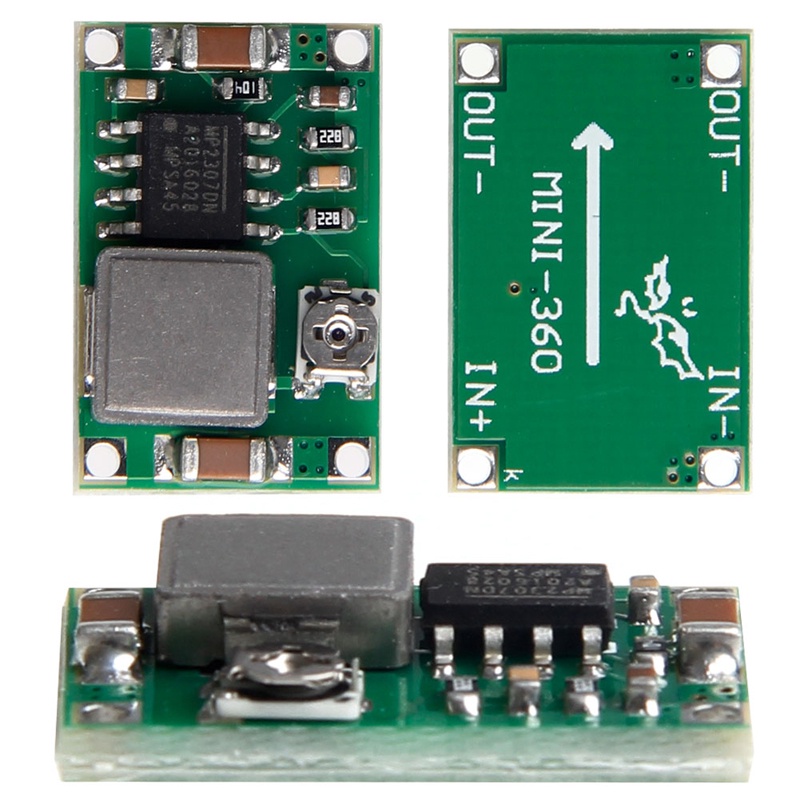

Mini 360 DC/DC Converter Step Down 4.75V-23V To 1V-17V Power Supply Module
100% brand new and high quality
Material: Electronic Component
Color: See pictures
Application:
DIY mobile power supply
Car power supply
Communication power supply equipment
All kinds of the volume and weight have strict requirements of occasions (such as aviation model, etc.)
Module properties: the isolation step-down
Rectifying methods: synchronous rectifier
Input voltage: 4.75 V - 23 V
Output voltage: 1.0 V - 17 V
The peak output current: 3 A, 1.8 A long time
Conversion efficiency: 96% (highest)
Switching frequency, 340 KHZ
The output ripple: 30 mv (light)
Load regulation: ±0.5%
Voltage regulation: ±2.5%
Working temperature: - 40 ℃ to + 85 ℃
Size: 17 * 11 * 3.8mm/0.67"*0.39"*0.15" (L*W*H)
No Retail Packages
Quantity:1Pc
Note: Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
