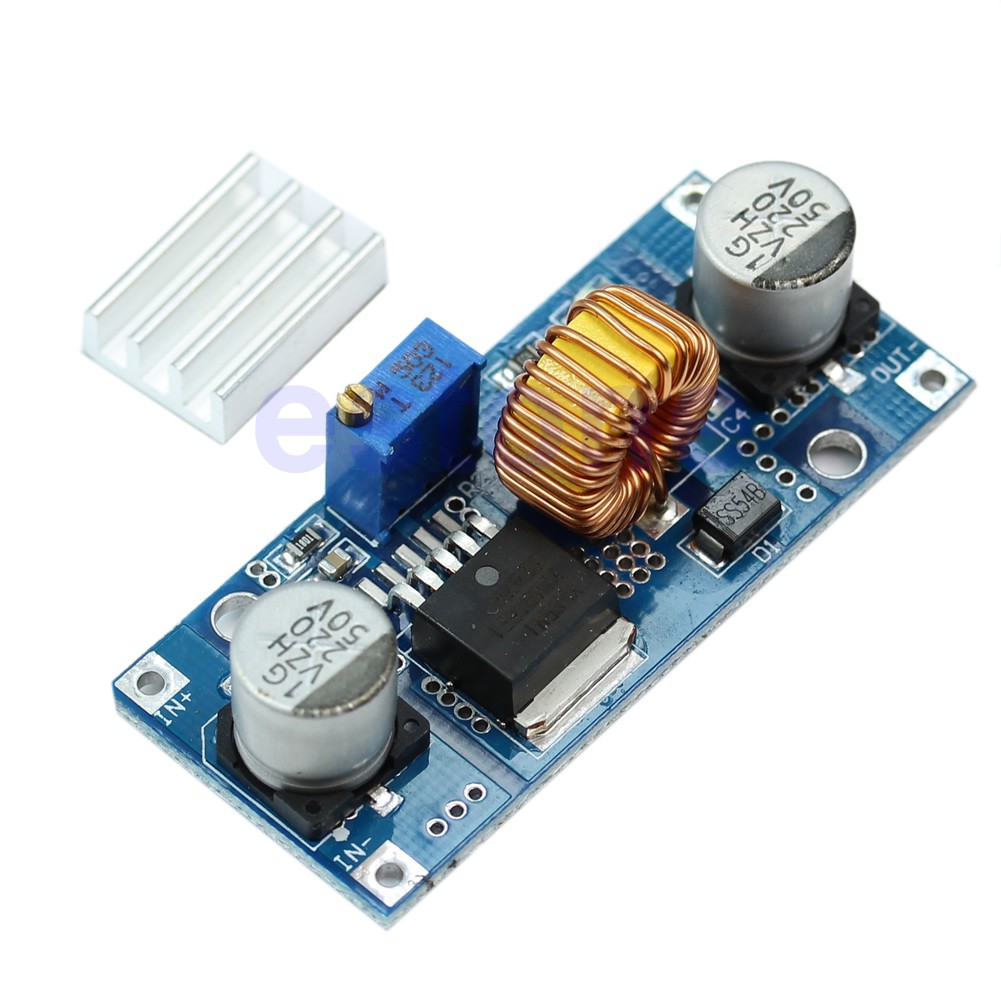

Detail Modul Power Supply Buck Step Down 24V 12V 9V 5VDC to 1.25V-36V 5A
100% brand and high quality This module can step-down applications is higher than the output voltage when the input voltage, such as battery, power transformer, DIY adjustable regulated power supply, 24V vehicle notebook power supply, industrial equipment, buck, 12V 3.3V, 12V 5V, 24V 5V, 24V 12V, 36V 24V etc. Module name:5A step down module. Module property: Non-isolated step down module(BUCK). Input voltage:4V-38V Output voltage:1.25V-36V(adjustable) Output current:0A-5A,for safe working current, please under 4.5A. Output power: it is recommended to use in the 75W, more than 50W Please add heat sink. Working temperature:-40℃~+85℃ Working frequency:180KHz Transfer efficiency:96%(max) Load regulation rate: S (I) ≤ 0.8% Voltage regulation rate: S (U) ≤ 0.8% Power indicator: yes Short circuit protection: (current limiting 8A) Over temperature protection: Yes (automatic shutdown output ultra temperature) Short circuit protection: Yes Input reverse connect protection: NO Output reverse connect protection: no PCB size:54x24x12mm Quantity:1pc Measured Efficiency Table: Module name:5A step down module. Module property: Non-isolated step down module(BUCK). Input voltage:4V-38V Output voltage:1.25V-36V(adjustable) Output current:0A-5A,for safe working current, please under 4.5A. Output power: it is recommended to use in the 75W, more than 50W Please add heat sink. Working temperature:-40℃~+85℃ Working frequency:180KHz Transfer efficiency:96%(max) Load regulation rate: S (I) ≤ 0.8% Voltage regulation rate: S (U) ≤ 0.8% Power indicator: yes Short circuit protection: (current limiting 8A) Over temperature protection: Yes (automatic shutdown output ultra temperature) Short circuit protection: Yes Input reverse connect protection: NO Output reverse connect protection: no PCB size:54x24x12mm Quantity:1pc Measured Efficiency Table:
