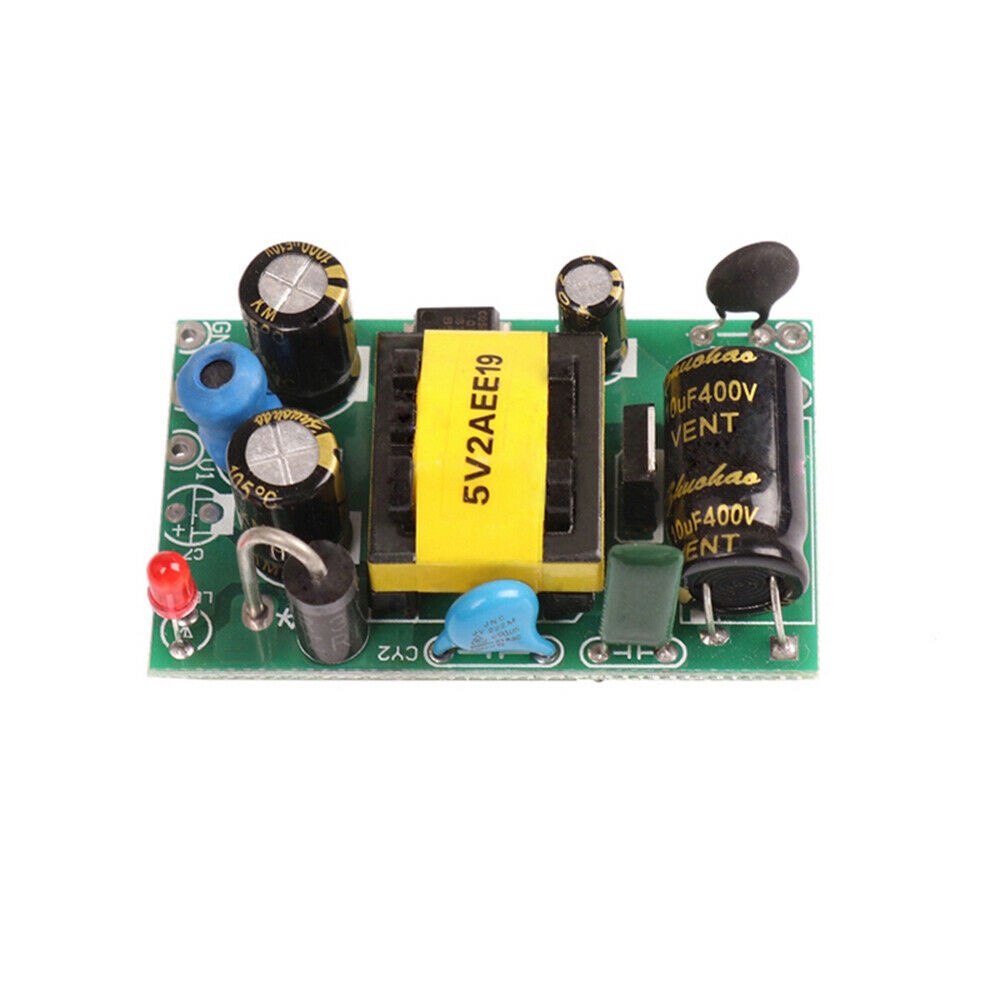

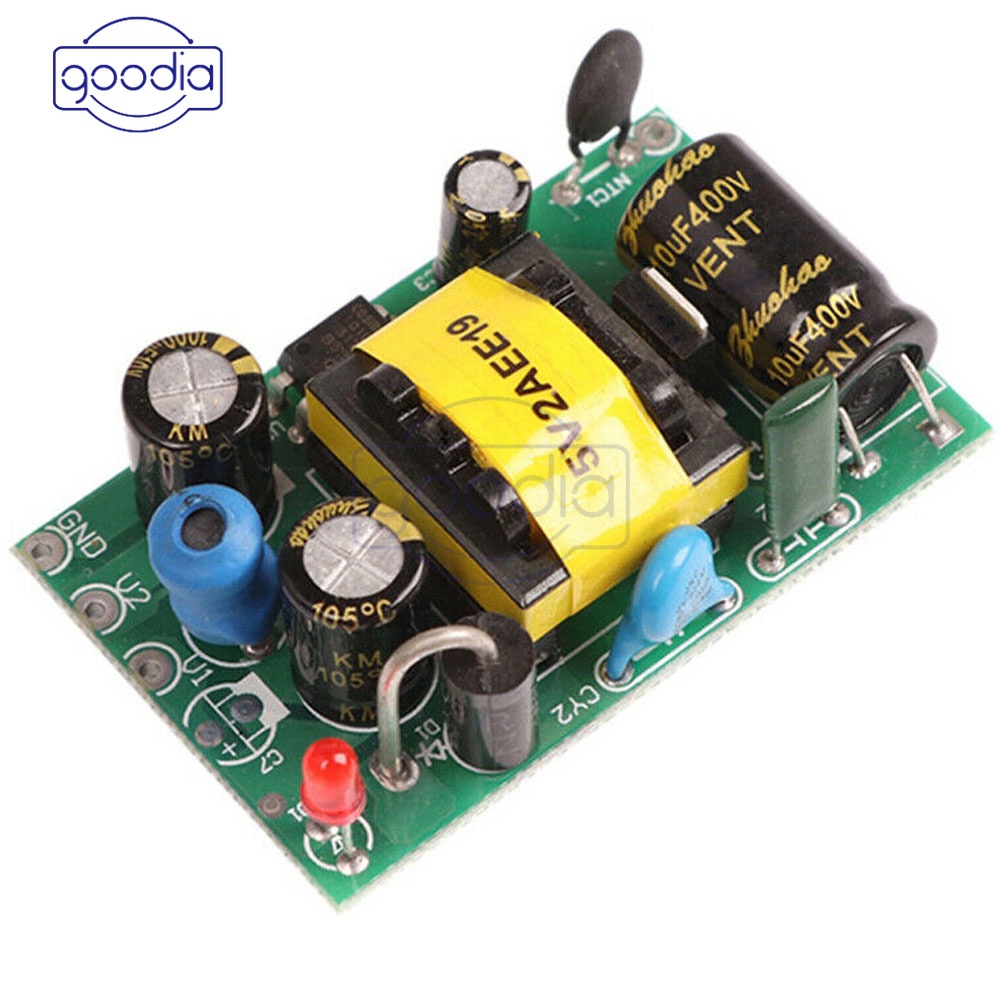

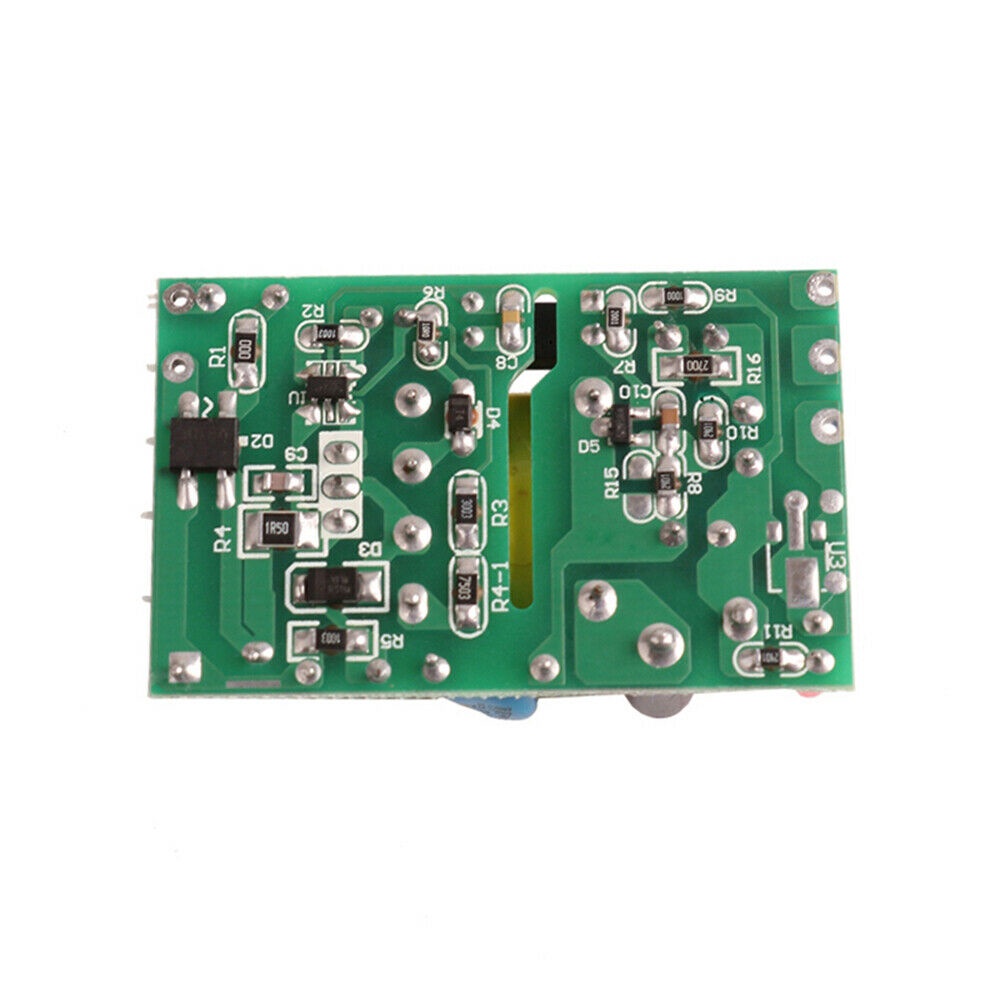

Modul Power Supply Ac-Dc 12v 800ma / 24v 400ma 5v 1000ma

Detail Modul Power Supply Ac-Dc 12v 800ma / 24v 400ma 5v 1000ma

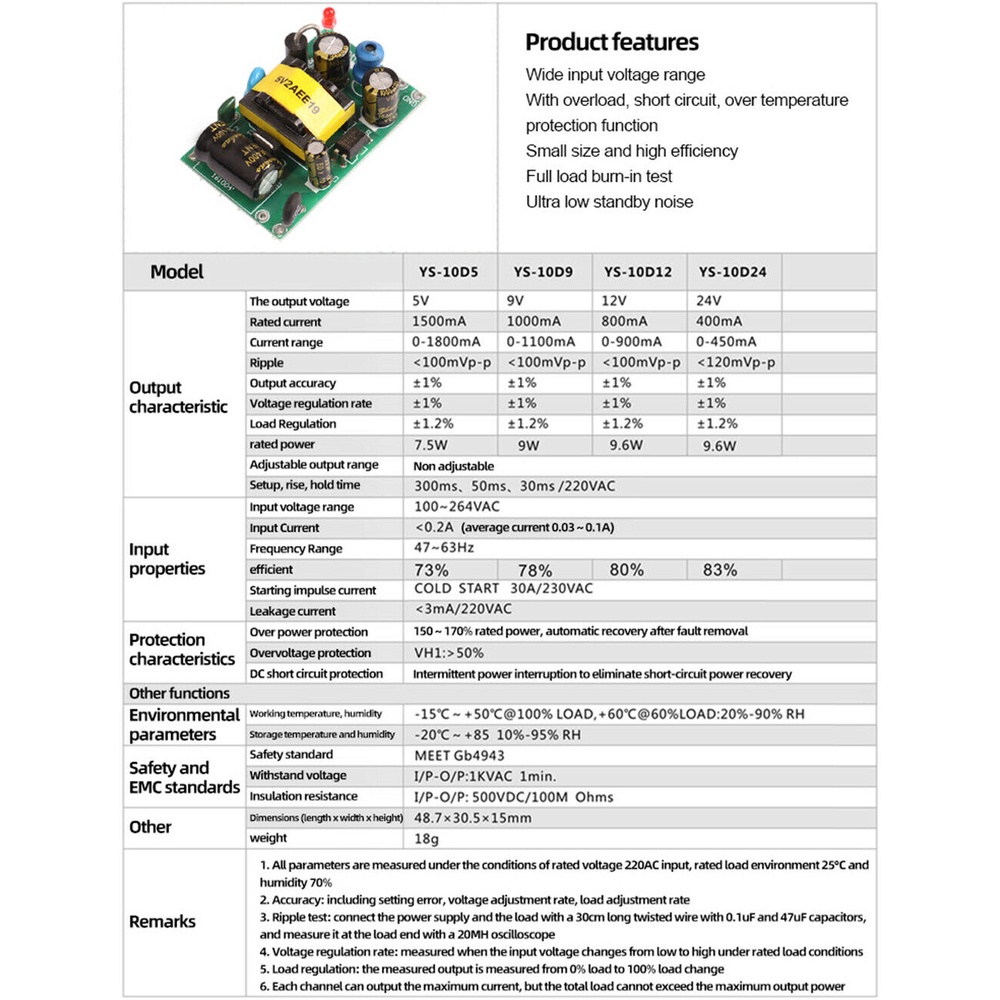

Product Feature
1: Wide input voltage range
2: With overload, short circuit, and over temperature protection functions
3: Small size, high efficiency
4: Full load aging test
5: Widely used

12V output characteristics
Output voltage: 12V
Rated current: 800mA
Current range: 0-900mA
Ripple: <100mVp-p
Output accuracy: ±1%
Voltage adjustment rate: ±1%
Load regulation rate: ±1.2%
Rated power: 9.6w
Output adjustable range: not adjustable
Setup, rise, hold time: 300ms, 50ms, 30ms /220VAC

24V output characteristics
Output voltage: 24V
Rated current: 400mA
Current range: 0-450mA
Ripple: <120mVp-p
Output accuracy: ±1%
Voltage adjustment rate: ±1%
Load regulation rate: ±1.2%
Rated power: 9.6w
Output adjustable range: not adjustable
Setup, rise, hold time: 300ms, 50ms, 30ms /220VAC

Check list
1*Power Module

5V output characteristics

Description
This power source for the isolation industrial-grade built-in power supply module, temperature protection, and short circuit protection, AC85 ~ 265 v input voltage, wide 431 precision voltage stability DC5V output, with mounting holes, with input and output EMI filter circuit, small volume, stable performance, cost-effective
-Input voltage of AC 85 ~ 265v 50/60 HZ
-Output voltage DC5V（±0.2V）
-Output current 1000MA
-Power 5w

package Included：
1 X 5V 1A AC-DC Step Down Module
