Modul Power Step Down Charger Dual USB Output 9V 12V 24V to 5V DC-DC

Detail Modul Power Step Down Charger Dual USB Output 9V 12V 24V to 5V DC-DC

Product Introduction:

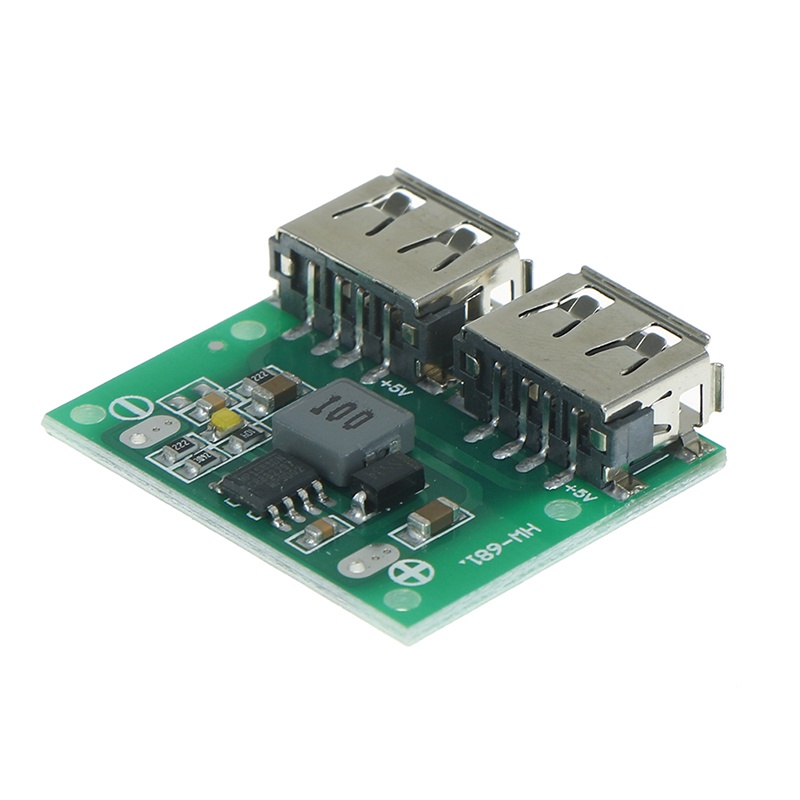

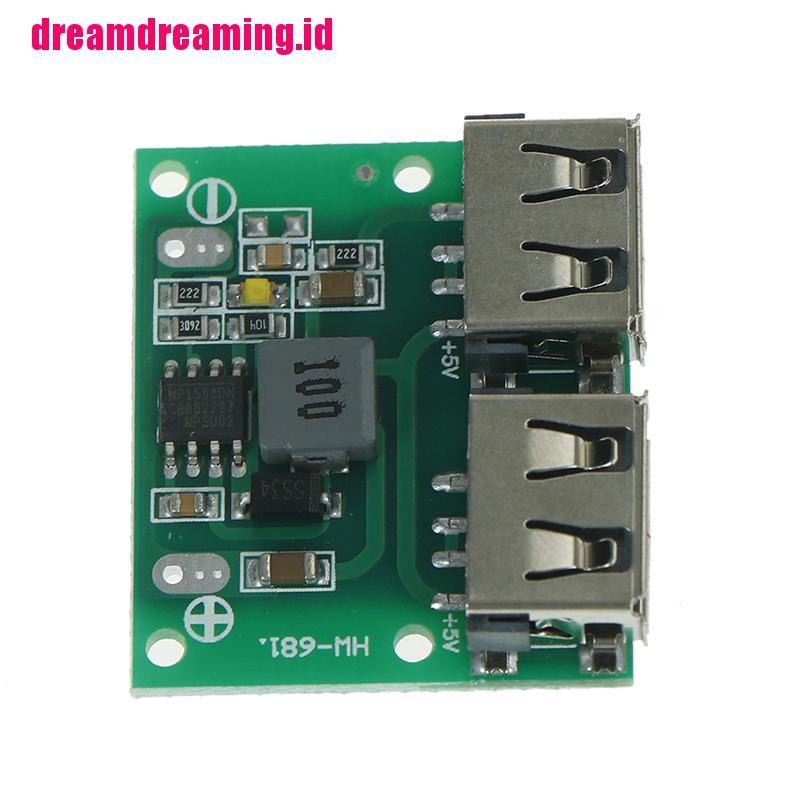

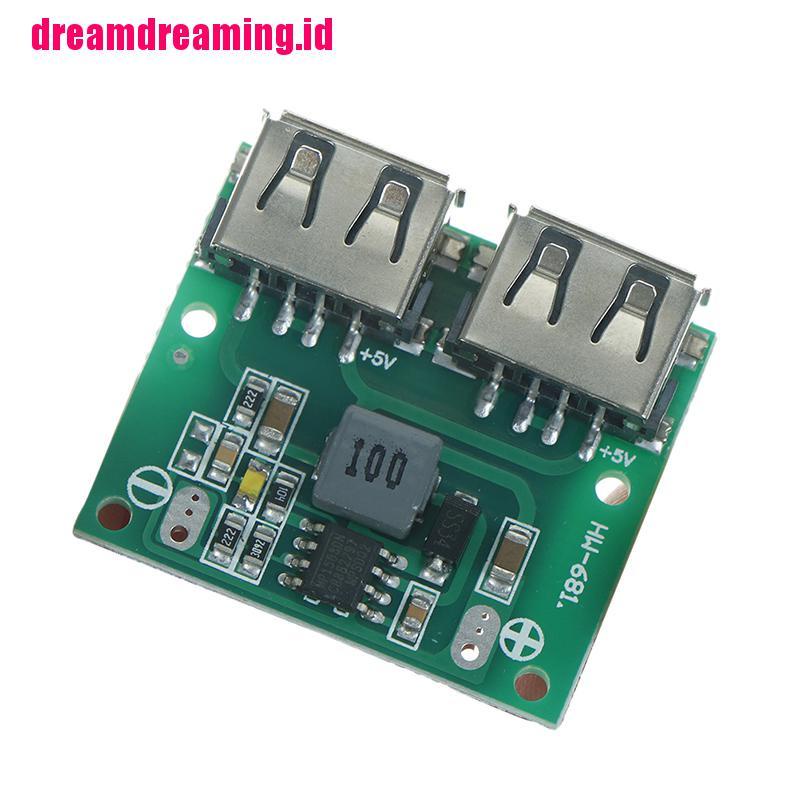

DC-DC USB buck charging module (with work indicator, standard contact gold-plated socket)
Compatible phone models: Andrews series, iPhone series, Huawei, millet, Nokia. The The
Output voltage: 5.2V (consider the charge line loss, the output is 5.2V or so, the load side is about 5V)
Output current: 3A (in the absence of heat sink device, the stable output current is 2A)
Note 1: positive and negative can not be reversed, and the input voltage can not exceed 26V, otherwise it will lead to chip damage!

Note 2: When working in power, you can not touch the circuit board on the sampling resistor, IC pin, otherwise it may lead to damage to the output voltage of the device!

Specifications:
100% Brand New and High Quality
Feature: Eco-Friendly
Input voltage range: 6-24V
Color: As picture
Output current: 3A
Product Size: 28mm x 32mm x 8mm

Package includes: 1pc

Note:
1.Under the influence of light and the display, the color difference may decrease slightly.
2.Due to manual measurement, please allow size differences about 1-3cm. Thank you for your understanding.

Gambar produk
