Modul Papan Sirkuit Charger Wireless Qi 10w Fast Charging Pcba +

Detail Modul Papan Sirkuit Charger Wireless Qi 10w Fast Charging Pcba +

Features:

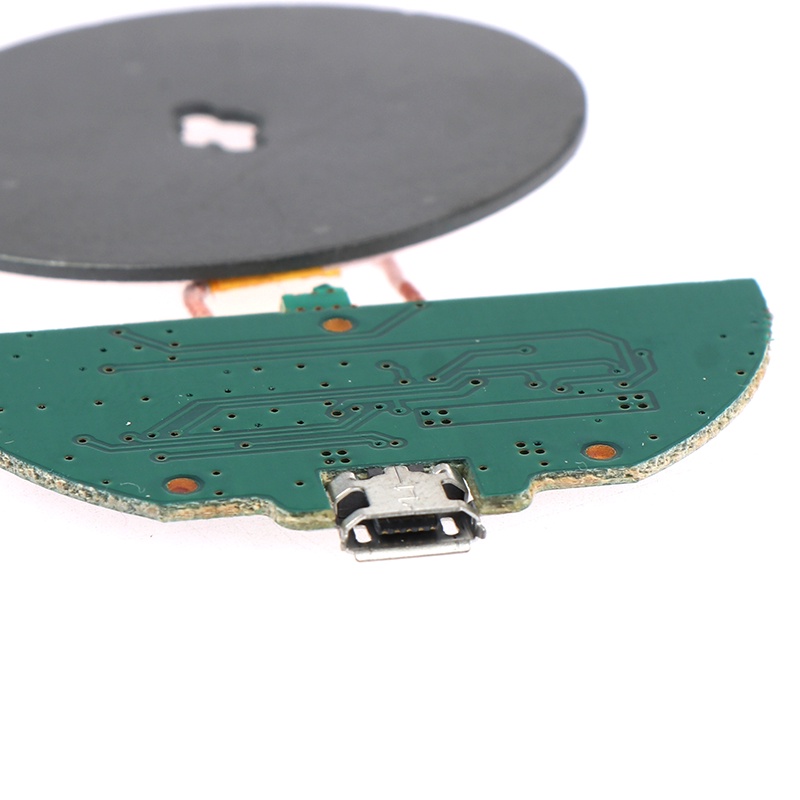

MIicro USB interface, wireless Qi charging standard, can be charged with mobile phone
Size:75*49mm

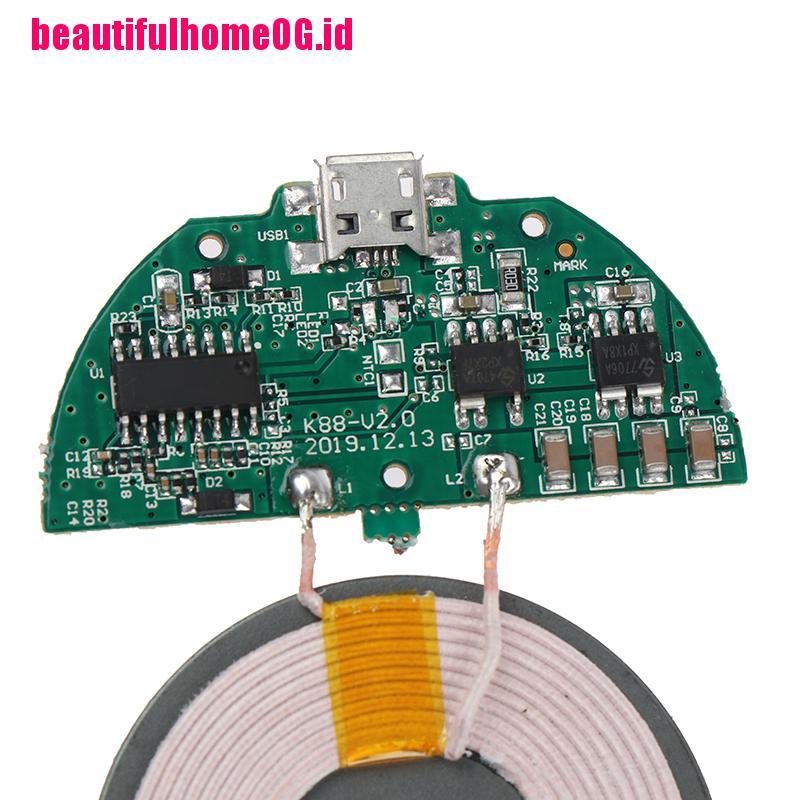

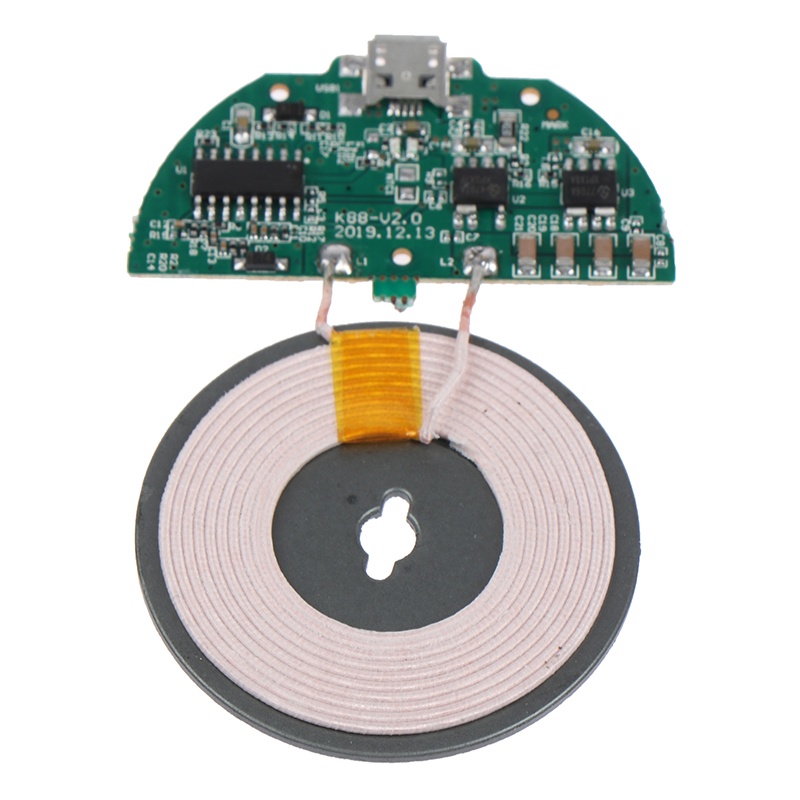

Qi wireless charger PCBA circuit board,allows to charge for any Qi-enabled device.
Better for DIY, you can give it a case (not too thick) or fix it on your furniture or other devices, but please note the transfer efficient distance is only 5mm.
High power, quick-acting charging.
Over 75% high-efficient energy conversion.
Ultrathin,lightweight,safe and reliable.
Specifications:
Input voltage:DC5V
Input current:2A-1.5A
Charging voltage:5V
Charging current:1A-1.5A
Charging power:10W
Charging distance:10mm
Conversion:≥75%
How to use:

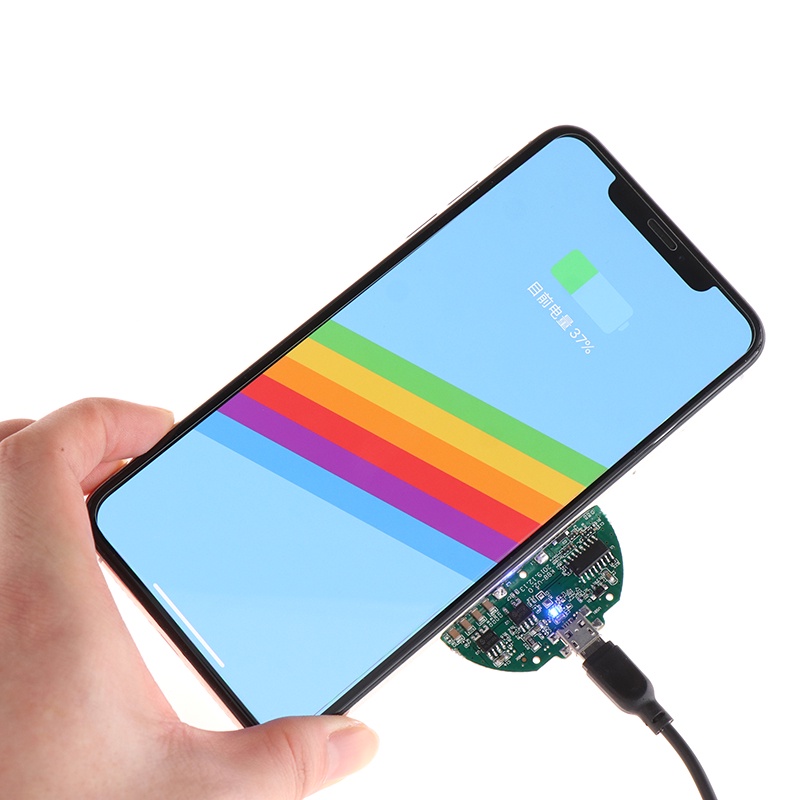

1.Please confirm that your phone is Qi-compliant.
2.If there has a green indication light from the charger, the charger is working. If not, please move your phone to the center of the charger. It should commence the charging process.
3. Protective cases that exceed 5 mm thick prevent the charger from working properly. In this case, remove it before charging
Installation requirements:
1. Please use the charging head / cable with enough 2A current output
2. The thickness of the cover plate above the transmitter coil is recommended to be within 3mm
3. When working, the receiving center of the mobile phone should be aligned with the center of the transmitter coil
Package Included:1x Qi Wireless Charger PCBA Circuit Board
