Modul NE555 Pulse Adjustable Frequency Duty Cycle Generator

Detail Modul NE555 Pulse Adjustable Frequency Duty Cycle Generator

Deskripsi Modul NE555 Pulse Adjustable Frequency Duty Cycle Generator
Spesifikasi:
- Size: 3.1cm * 2.2cm
- The main chip: NE555
- The input voltage: 5V-15VDC. 5V supply, the output current can be about 15mA; when 12V power supply, the output current can be about 35mA;
- The input current: 100mA
- The output amplitude:. 4.2V V-PP to 11.4V V-PP (different depending on the input voltage, the output amplitude will be different)
- The maximum output current: 15mA (5V supply, V-PP greater than 50%), 35mA (12V power supply, V-PP greater than 50%)

Three Advantages:
- The output with LED indication, there is no output straightforward (low level LED quantity, high LED off, LED blinks when the frequency is low);
- Grade selectable output frequency range, the output frequency is more continuously adjustable;
LF file: 1Hz ~ 50Hz
IF file: 50Hz ~ 1kHz
High frequency gear: 1KHz ~ 10kHz
High frequency profile: 10kHz ~ 200kHz

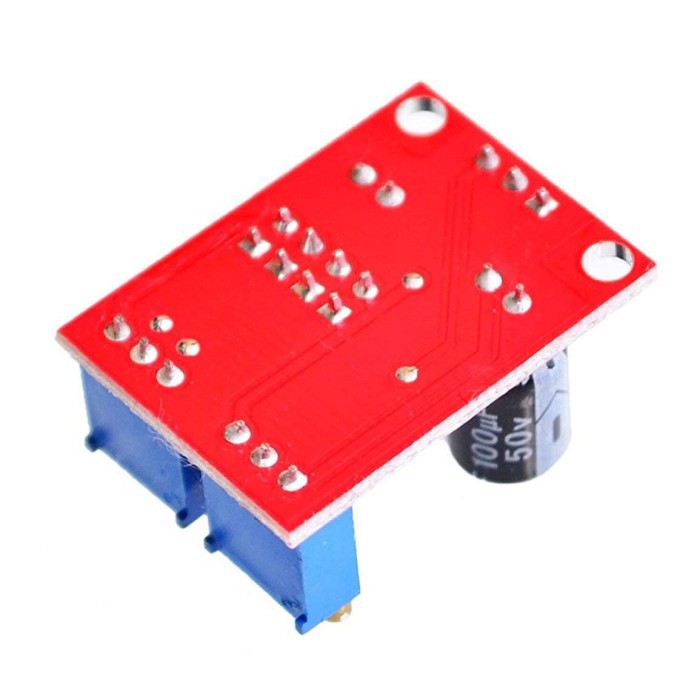

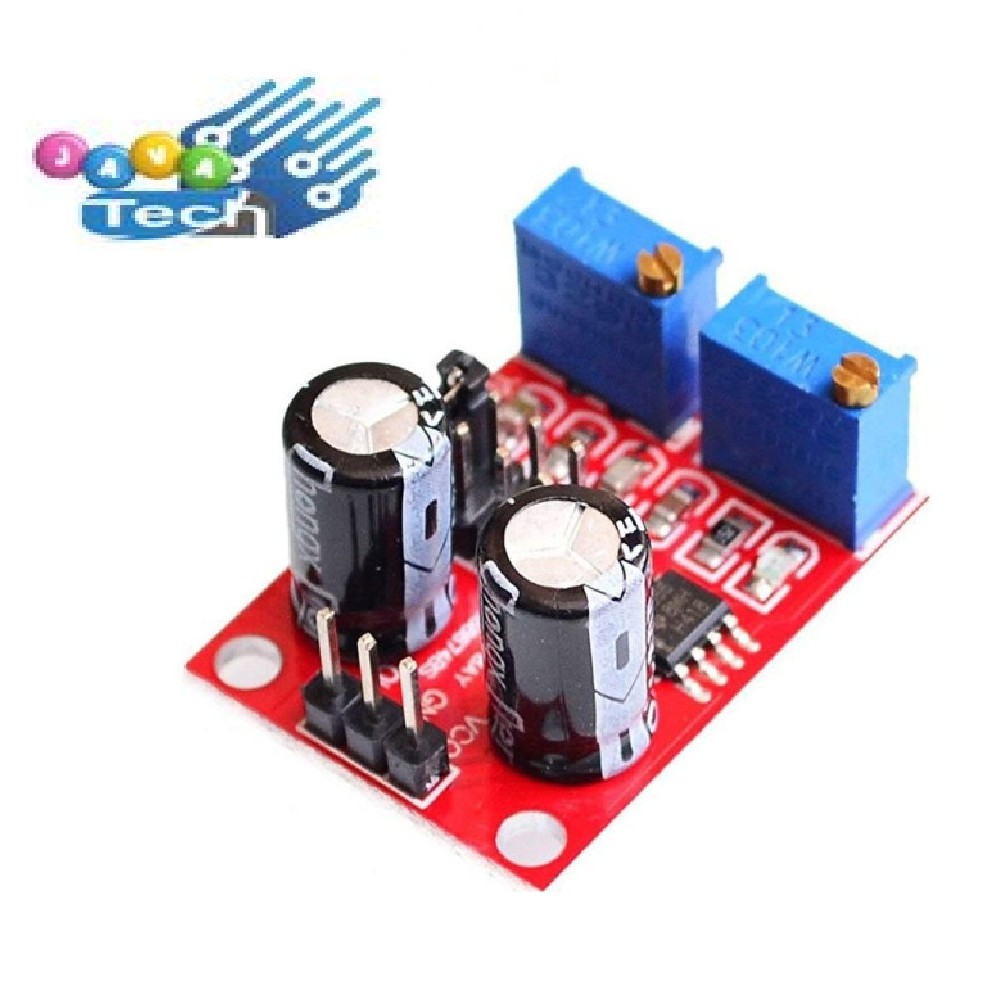

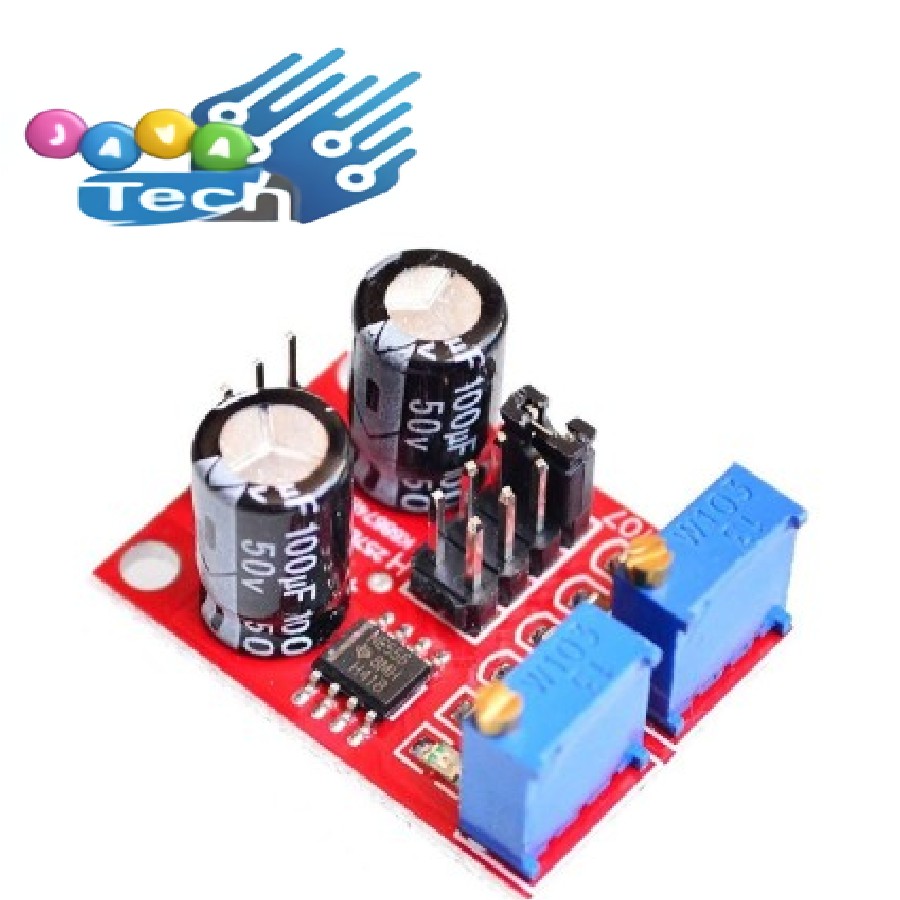

Gambar produk
