Detail Modul Module Power Supply Stepdown Step down DC-DC 5A XL4005 Adj
Spesifikasi: -Input voltage:4V-38V -Output voltage:1.25V-36V(adjustable) -Module property: Non-isolated step down module(BUCK). -Output current:0A-5A,for safe working current, please under 4.5A. -Output power: hingga 75W, lebih dari 50W tambahkan heat sink. -Working temperature:-40degree~+85degree -Working frequency:180KHz -Transfer efficiency:96%(max) -Load regulation rate: S (I) 0.8% -Voltage regulation rate: S (U) 0.8% -Power indicator: yes -Short circuit protection: (current limiting 8A) -Over temperature protection: Yes (automatic shutdown output ultra temperature) -Short circuit protection: Yes -Input reverse connect protection: NO -Output reverse connect protection: no -PCB size:54x24x12mm
ada indikator led nya

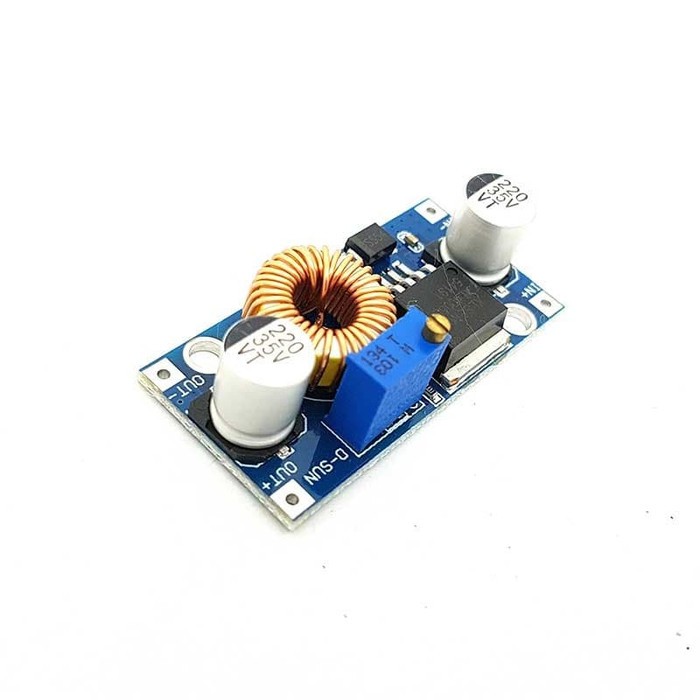

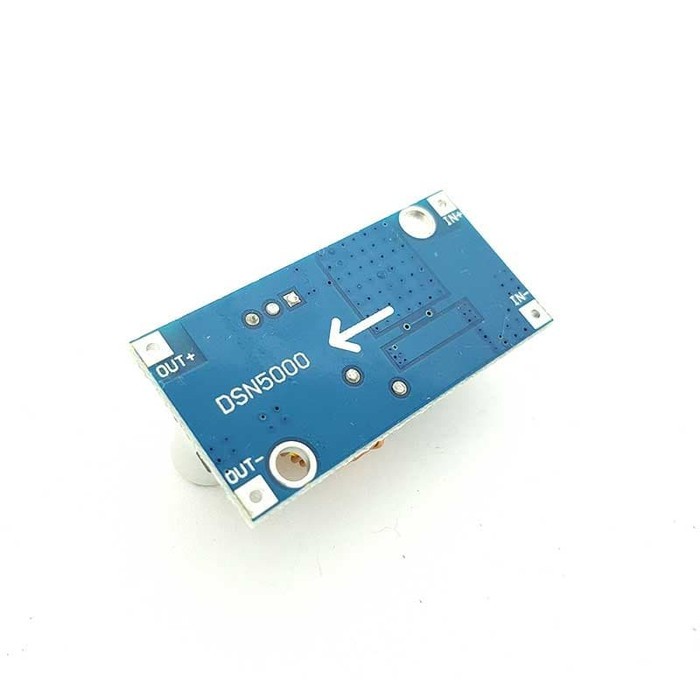

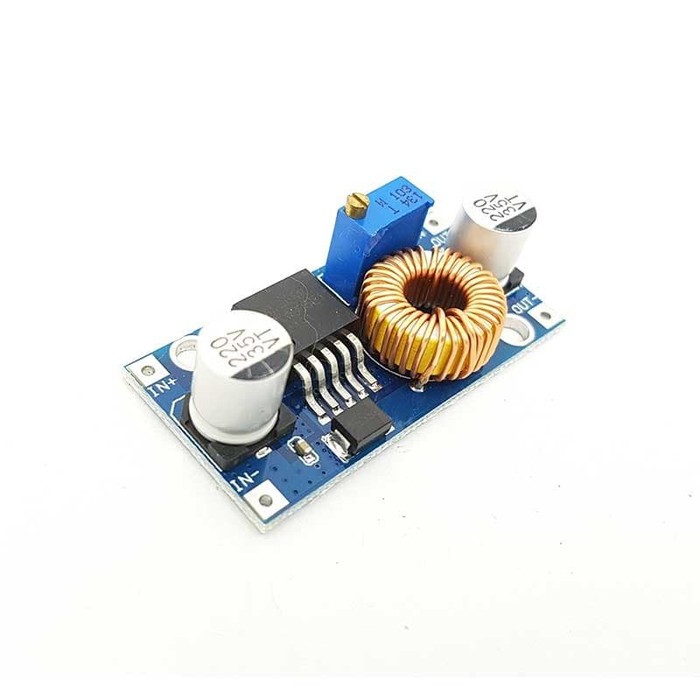

Gambar produk
