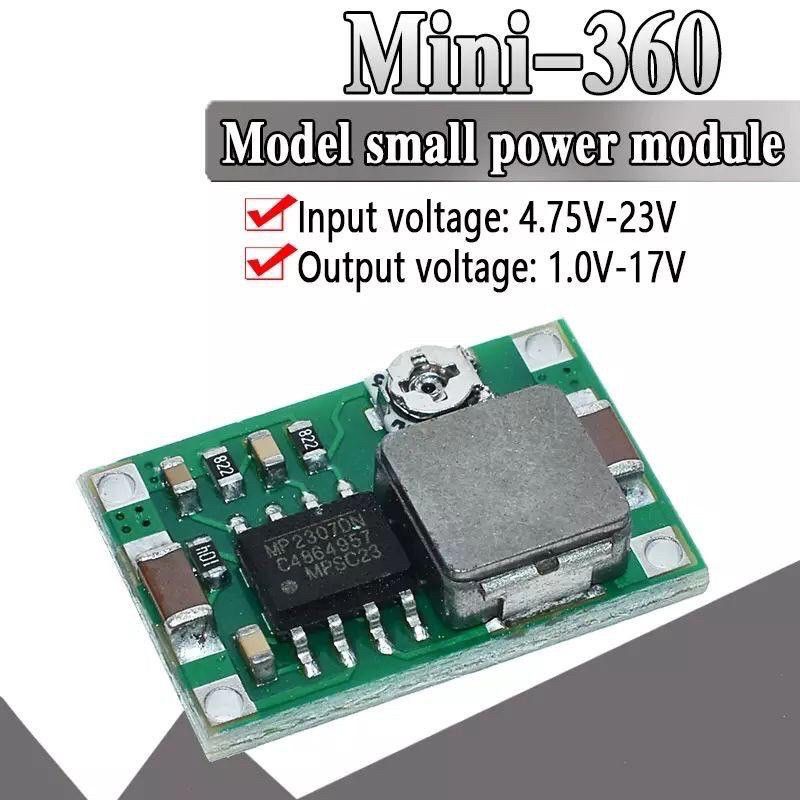

Modul Mini 360 MP2307 DC-DC Step Down Buck Regulator
Deskripsi singkat
Elektronik > Elektronik Lainnya > Modul Mini 360 MP2307 DC-DC Step Down Buck Regulator
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail Modul Mini 360 MP2307 DC-DC Step Down Buck Regulator
Features:===============================
- Module properties: non isolated Buck
- Rectifier mode: synchronous rectifier
- Input voltage: 5V-23V
- Output voltage: 1V-17V
- Output current: peak 3A, long time 1.8A
- Conversion efficiency: 96% (highest)
- Switching frequency: 340KHz
- Output ripple: 30mV (no load)
- Load adjustment rate: + 0.5%
- Voltage regulation rate: + 2.5%
- Working temperature: -40 degrees Celsius to +85
- External dimensions: 17 * 11 * 3.8 (L * W * H) (mm)
- the use of integrated power inductors and synchronous rectifier control chip,
smaller size, higher efficiency.
Paket :
===============================
- 1x SUPER MINI 360 ULTRA SMALL ADJUSTABLE DC STEP DOWN LM2596 2A 5V-23V TO
1V-17V MODULE
terima kasih
Gambar produk
