Detail Modul KY-019 Relay 1ch 5V Aktif High

Deskripsi Modul KY-019 Relay 1ch 5V Aktif High
Specifications

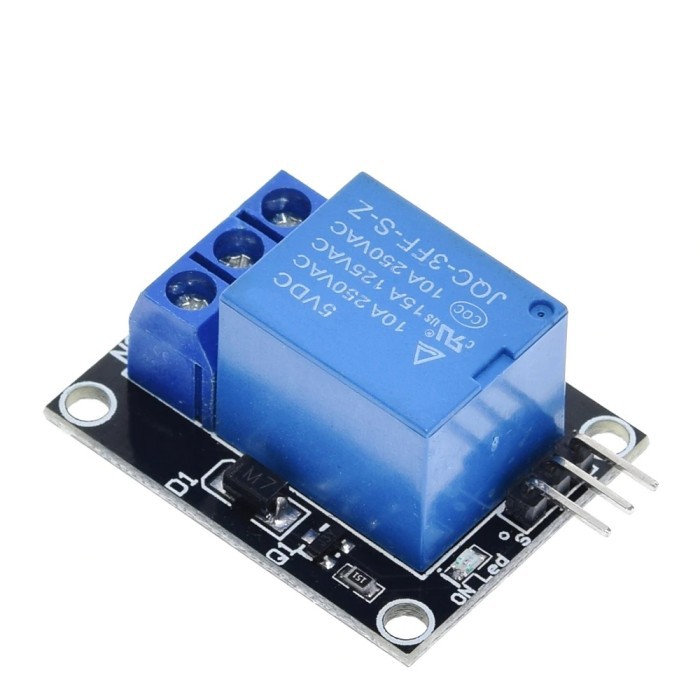

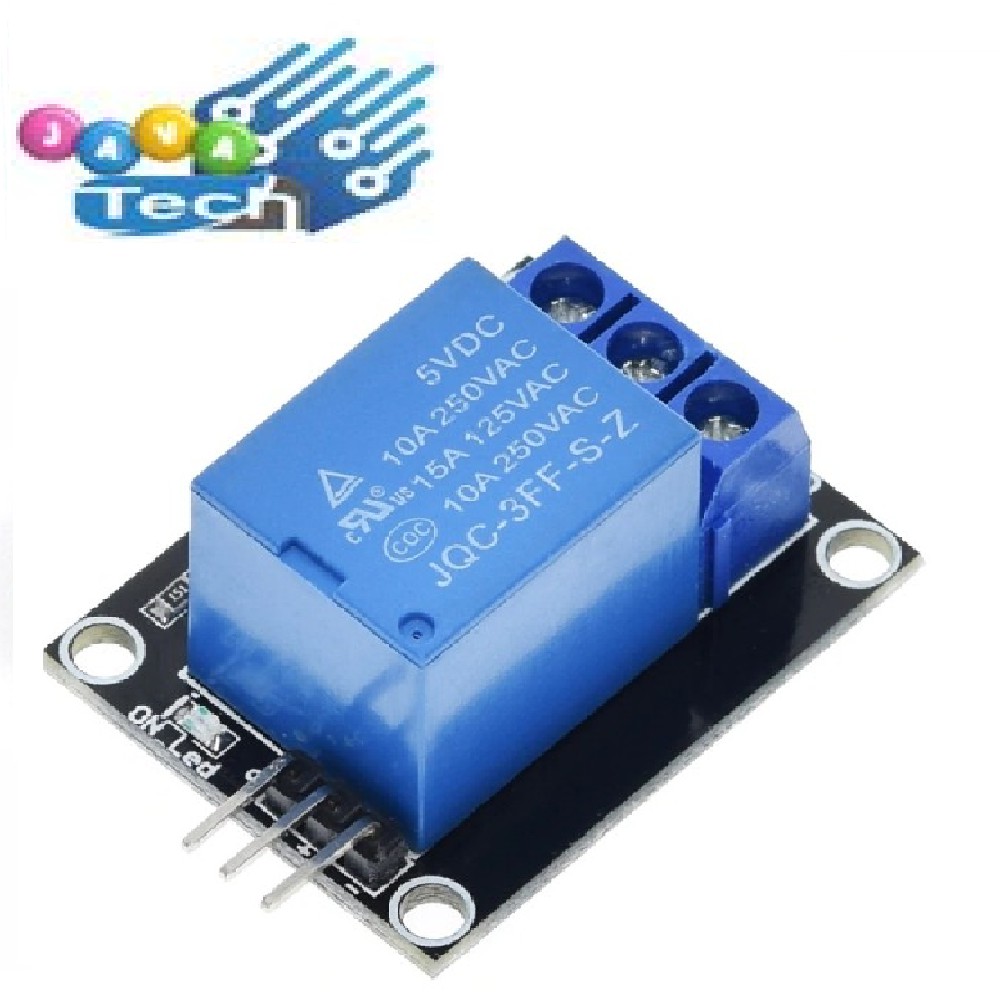

The KY-019 consist of a 1MΩ resistor, a LED, a 1N4007 rectifier diode and a 5VDC relay capable of handling up to 250VAC and 10A.

On the DC side of the board there are 3 pins for signal, power and ground. On the AC side there are 3 contacts, NC (Normally Closed), Common and NO (Normally Open).

TTL Control Signal 5VDC to 12VDC (some boards may work with 3.3)
Maximum AC 10A 250VAC
Maximum DC 10A 30VDC
Contact Type NC and NO
Dimensions 27mm x 34mm [1.063in x 1.338in]
